Product Description

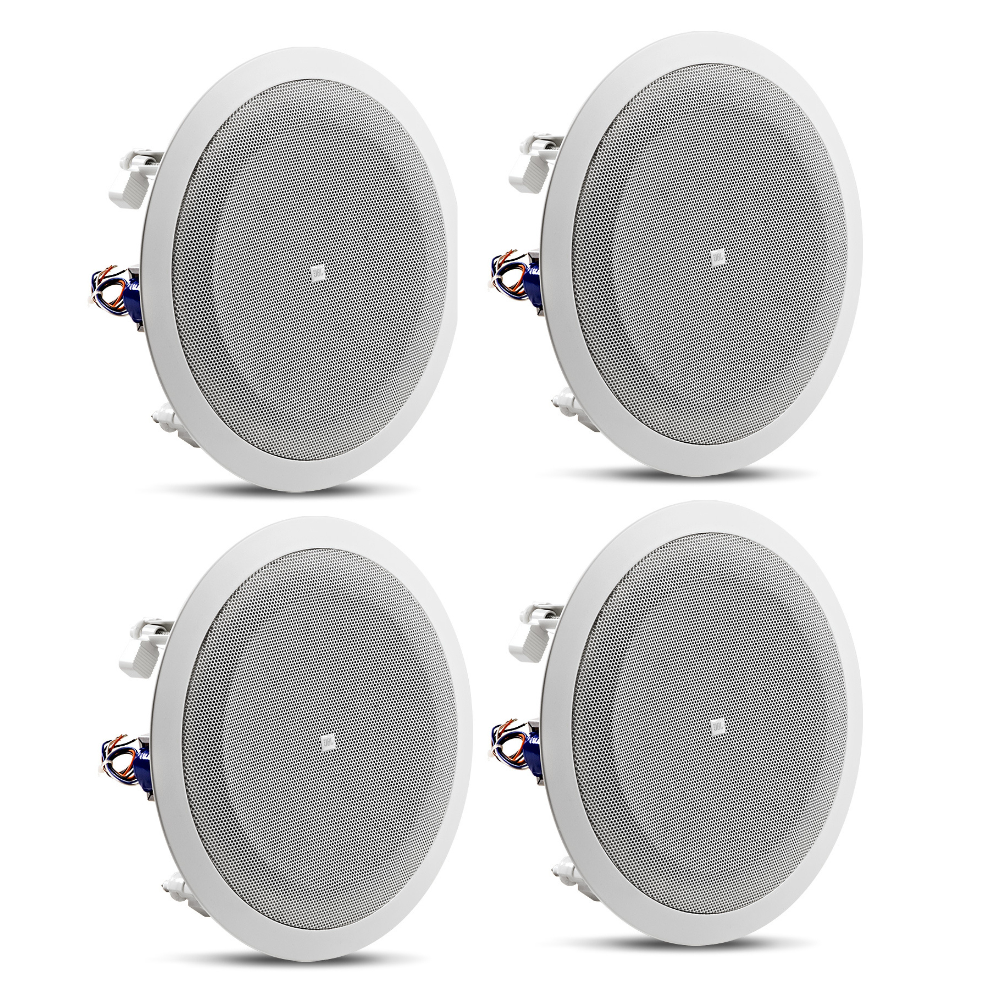

The JBL 8128 is an 8-inch full-range in-ceiling loudspeaker, perfect for commercial use. It offers high-fidelity sound and is cost-effective. This speaker is easy to install and comes with high-sensitivity drivers, which can deliver maximum sound levels while using minimal amplifier power. The contemporary grill design, 70V/100V taps, and open-back design add elegance and performance to basic commercial sound systems. Key features include clear high-fidelity performance, dog-ears for easy blind mount installations, high sensitivity for maximum power efficiency, and a 6W transformer for 70V/100V distributed lines. Technical specs: 8 in (200 mm) full-range driver, frequency range 50 Hz - 16 kHz, sensitivity 97 dB (1 kHz - 8 kHz), 1W, 1M, 90° conical coverage, 70V/100V taps with 6W, 3W, 1.5W (0.75W at 70V only), bare wire termination, dimensions 11.3 in (287mm) x 4.1in (105mm), weight 3lb (1.4kg), included sculpted grille, optional MTC-8124C C-ring and MTC-Rail tile rails.
Using your JBL 8128 in-ceiling loudspeakers is a breeze. First, find a suitable ceiling location for installation. The dog-ears on the speakers make blind mount installations easy. Connect the bare wires to your amplifier following the 70V/100V taps according to your power needs. You can choose from 6W, 3W, 1.5W (or 0.75W at 70V only). Once installed, turn on your amplifier and enjoy high-fidelity sound. When it comes to maintenance, keep the speakers clean by gently dusting the grille regularly. Avoid exposing the speakers to excessive moisture or extreme temperatures. If you need to replace any parts, use the optional accessories like the MTC-8124C C-ring or MTC-Rail tile rails as needed. Always follow basic electrical safety precautions during installation and use.
