Product Description

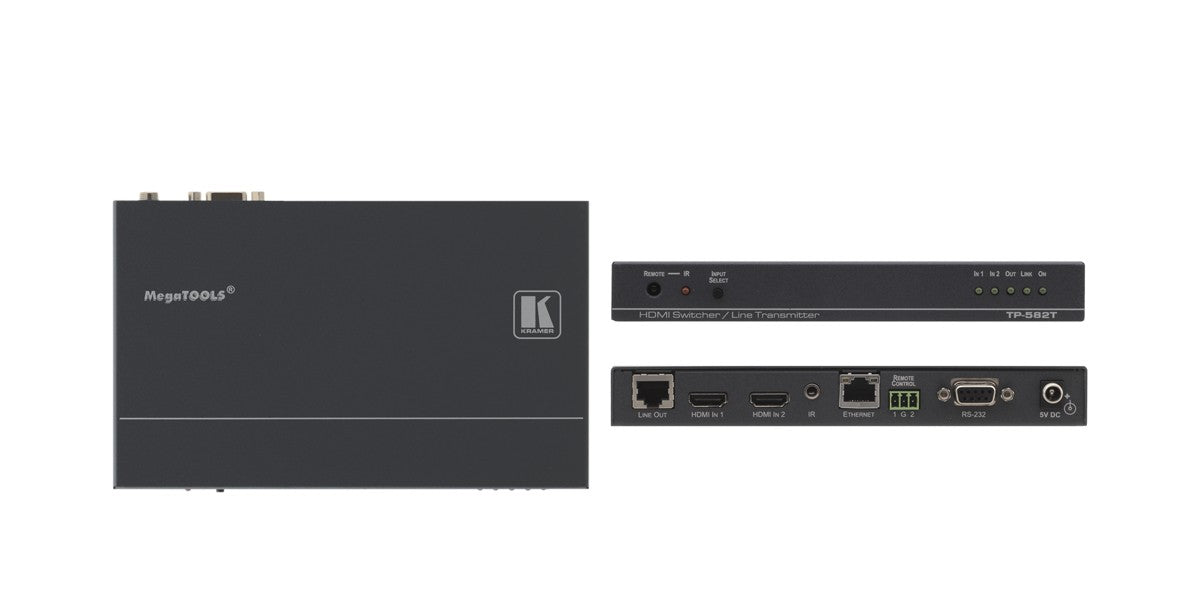

The Kramer TP-582T is a high - performance 2 to 1 HDMI switcher and transmitter that lets you transmit HDMI, Ethernet 100BaseT, RS - 232, and IR input signals. It takes one of the two HDMI inputs and converts it, along with Ethernet, RS - 232, and IR signals, into a twisted pair signal. With a maximum data transfer rate of up to 2.25 Gbps over a distance of up to 330’ (100m), it offers excellent performance. For the best results, use shielded twisted pair (STP) cables like Kramer's BC - DGKat524, BC - DGKat623, or BC - DGKat723. This transmitter supports HDMI v.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS - HD, CEC, and 3D Pass - through. The EDID PassThru feature helps pass EDID/HDCP signals from the source to the display. The 100BaseT Ethernet interface ensures efficient data and video signal transfer. The bidirectional RS - 232 interface allows two - way command and data flow, enabling status requests and control of the destination unit. You can also control the device via front - panel buttons. An LED indicator shows input selection, output, link, and power. With an optional RK - T2B rack adaptor, you can mount two units side - by - side in a 1U rack space. Being HDCP compliant and HDTV compatible, it's perfect for home theaters, presentations, multimedia setups, and staging applications. Key features include support for HDMI/Ethernet/RS - 232/IR signals, conversion of 2 HDMI inputs to a twisted pair signal, a high data rate, and more.
Using the Kramer TP - 582T is straightforward. First, connect your devices. Plug in your two HDMI sources to the 2 HDMI connectors on the device. Connect your IR source to the 3.5mm mini - jack, Ethernet to the RJ - 45 connector, and RS - 232 to the 9 - pin D - sub connector. For power, use a 5V DC, 800mA power source. Then, choose the HDMI input you want to transmit using the front - panel buttons. The LED indicator will show you the input selection, output status, link, and power. When using the device, make sure to use shielded twisted pair cables for the best performance. Don't exceed the maximum distance of 330’ (100m) for data transfer. To maintain the device, keep it in a clean and dry place. Avoid exposing it to extreme temperatures or humidity. If you want to mount it, you can use the optional RK - T2B 19' rack mount to place two units side - by - side in a 1U rack space. This will help organize your setup and keep the device secure.
