Product Description

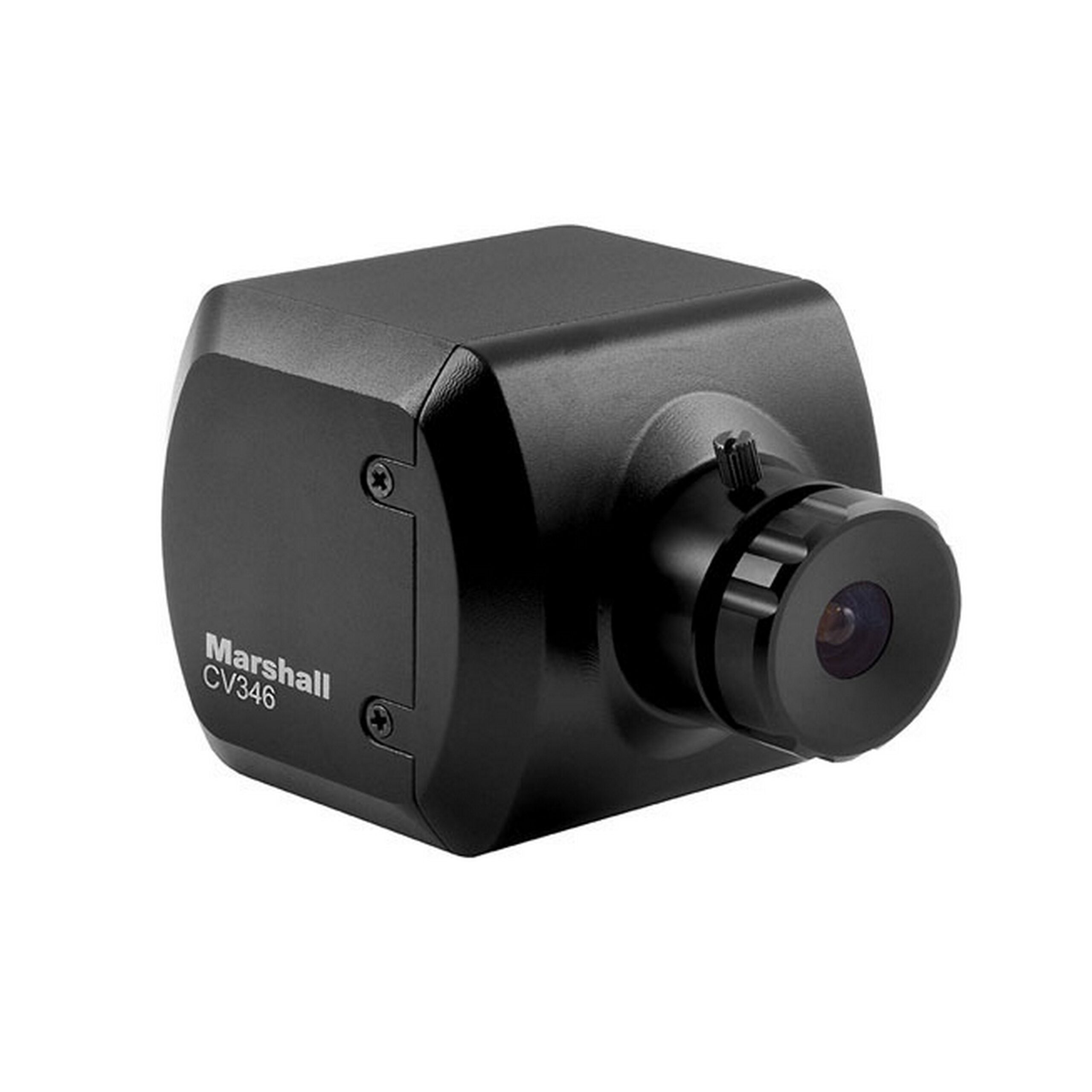

The Marshall CV346 is a high - performance, flexible, and cost - effective full - HD miniature camera. It features a next - generation 2.5 - Megapixel, 1/2.8 - inch sensor that can produce ultra - sharp and clear progressive Full - HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps. On its rear panel, you'll find a full - sized HDMI and BNC (3G/HDSDI) output, along with locking I/O connections for power, control, and stereo audio input (embedded on HDMI and 3G/HDSDI outputs). The CS lens mount gives you a wide choice of prime and varifocal lenses, from ultra - wide to telephoto. Key features include HDMI and 3G/HDSDI output, a 2.5 Megapixel (1/2.8') sensor with 4:2:2 color, an interchangeable CS/C lens mount (sold separately), multiple Full - HD resolutions, various frame rates, remote adjustment through RS485 (Visca) or OSD menu joystick, a wide range of picture adjustment settings, and it comes with a 12V power supply in the box.
Using the Marshall CV346 camera is easy. First, connect the power supply that comes in the box to the camera. Then, use the locking I/O connections to link it to your power source, control device, and audio input. You can choose to connect it to your display or recording equipment via the HDMI or 3G/HDSDI output on the rear panel. To adjust the settings, you can use the RS485 (Visca) for remote control or the OSD menu joystick. You can change things like picture color, white balance, and exposure to get the perfect shot. When it comes to lenses, you can pick from a wide variety of prime and varifocal options that fit the CS lens mount. Just remember, the CS/C lens mount is sold separately. As for maintenance, keep the camera in a clean and dry place. Wipe the lens gently with a soft, dry cloth. Don't expose it to extreme temperatures or humidity, as this can damage the internal components. And always turn off the power before making any connections or disconnections.
