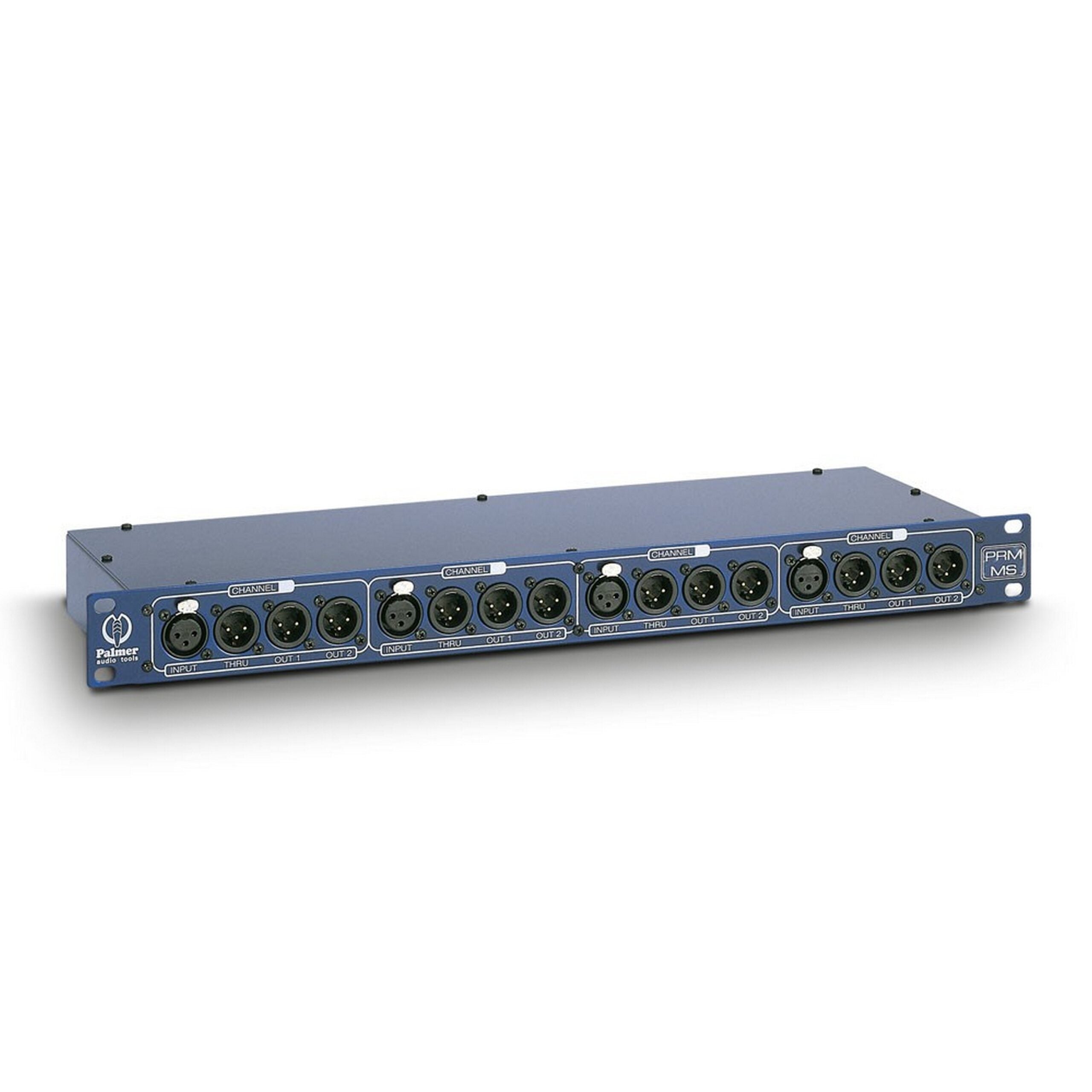

Palmer PRMMS 4-Channel Microphone Split Box

The Palmer PRMMS is a top - notch passive splitter box designed for microphone signals. This single module comes with 4 channels. Each channel features an input, an output wired in parallel to pass through phantom power, and two splitter transformer - isolated outputs. All outputs are decoupled via resistors. It's a great choice for audio professionals who need to split microphone signals. With a 1 in 2 +1 split type, it offers 2 split - outputs per canal and 1 THRU output per channel. It has a max input and output level of + 4 dB. The input and output connectors are XLR. The cabinet is made of sheet steel with a powder - coated surface. It measures 480 mm (19') in width, 165 mm in depth, and 44.5 mm (1 U) in height, and weighs 2.18 kg.

Using the Palmer PRMMS 4 - Channel Microphone Split Box is easy. First, connect your microphone to the XLR input on the box. Then, you can connect your recording or monitoring devices to the split - outputs or the THRU output as needed. When using it, make sure the input level of your microphone doesn't exceed + 4 dB to avoid distortion. Also, be careful when handling the box as it's made of sheet steel and can be heavy. For maintenance, keep the box in a dry and clean environment. Wipe the powder - coated surface gently with a soft cloth if it gets dirty. Don't expose it to extreme temperatures or humidity, as this could damage the internal components.
