Product Description

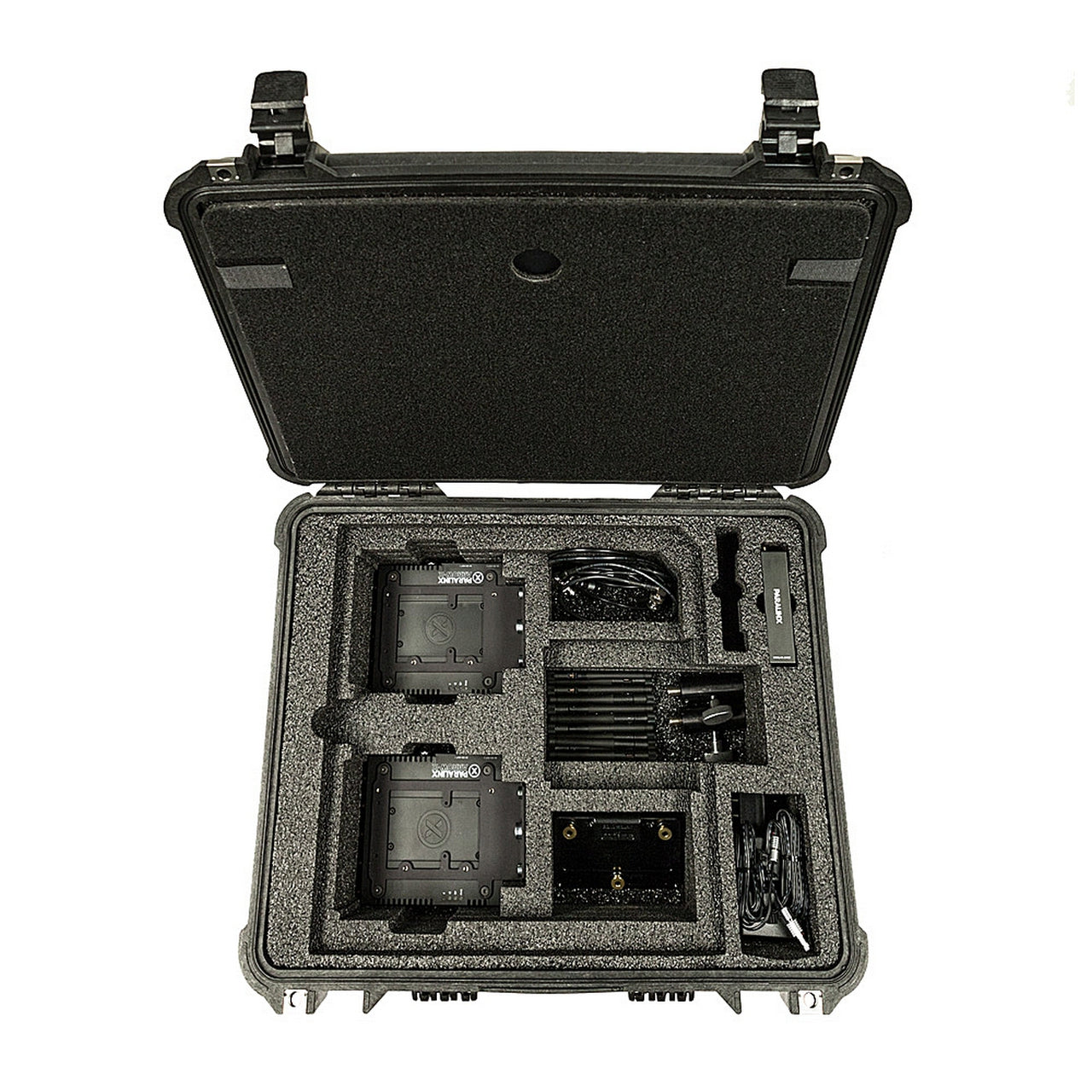

Get all your Arrow-X equipment in one super - convenient package. This amazing bundle comes with 1 Arrow - X transmitter (you can choose between SDI or HDMI input), 2 Arrow - X receivers each having dual - SDI outputs, 1 Array panel antenna (you can opt for Gold - Mount or V - Mount), 2 Perch mounting brackets for the receivers, 1 Sidearm mounting bracket for the transmitter, 2 female battery plates to power the receivers (Gold - Mount or V - Mount options available), 2 male battery plates for pass - through power and mounting the Array (also Gold - Mount or V - Mount choices), 3 PTap to Lemo power cables, 1 Lemo to Lemo power cable, and a custom Pelican 1550 case. This case can hold up to 2 transmitters, 3 receivers, 2 Array panel antennas, and all the accessories. Inside the box, you'll find a Paralinx Arrow - X transmitter (HDMI), 2 Paralinx Arrow - X receivers, 3 18' PTap to Lemo Cables (45cm), 1 24' 2 - pin Lemo - type to 2 - pin Lemo - type Cable (60cm), 2 18' Right - Angle to Right - Angle BNC Cables (45cm), a Paralinx Sidearm transmitter mounting bracket, 2 Paralinx Perch receiver mounting brackets, a Paralinx Array MIMO panel antenna for the receiver (V - Mount), 5 Type - N to RP - SMA Cables for use with the Array, 2 Battery Plates (male) for mounting the Array to the receiver, 2 Battery Plates (female) for powering the receivers (V - Mount), 2 Standard 2dbi Antennas for the transmitter, 10 Standard 2dbi Antennas for the receivers, 2 AC Adapters for the receivers, a Mini - USB to USB Cable for future firmware updates, and a custom Pelican 1550 Case that can accommodate 2 transmitters, 3 receivers, 2 Arrays, and all the accessories.
Using this Paralinx Arrow - X SDI HD video transmission system is a breeze. First, assemble the equipment. Mount the transmitter and receivers using the provided mounting brackets. Connect the power cables as described in the box contents. For the antennas, attach the appropriate ones to the transmitter and receivers. When choosing the battery plates, pick the type that suits your setup, either Gold - Mount or V - Mount. Make sure all the cables are securely connected. When it comes to power, use the PTap to Lemo or Lemo to Lemo cables to power the devices. For firmware updates, use the Mini - USB to USB cable. As for maintenance, keep the equipment clean and dry. Avoid exposing it to extreme temperatures and moisture. If you're not using the equipment for a long time, store it in the custom Pelican 1550 case to protect it from dust and damage. Also, regularly check the cables for any signs of wear and tear and replace them if necessary.
