Product Description

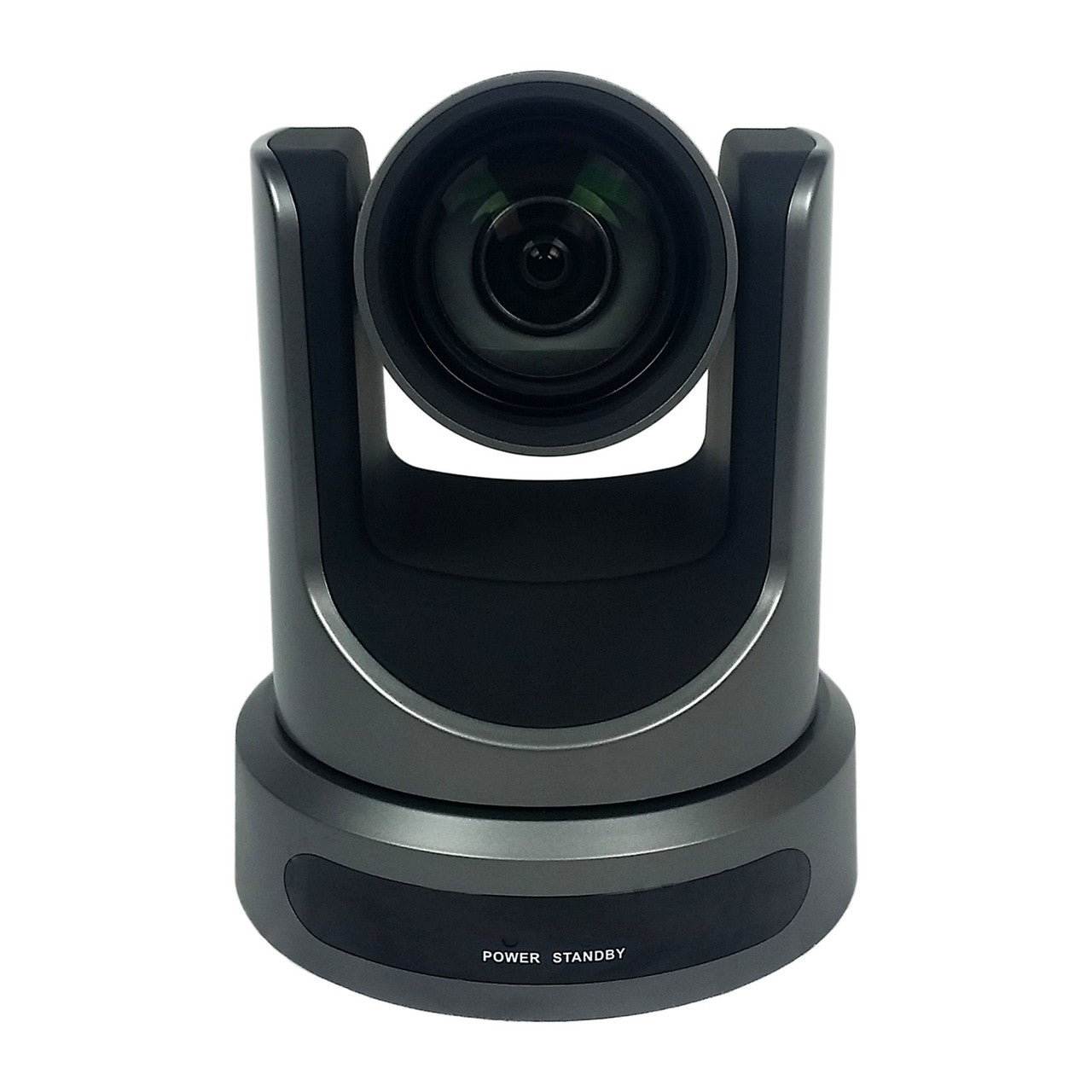

The PTZOptics PT12X-SDI is a top-notch 1080p pan-tilt-zoom camera. It features a 12X optical zoom, allowing you to capture high-definition video from long distances. With support for HDMI, 3G-SDI, and IP streaming (H.264 or H.265), this camera is perfect for broadcasting and video conferencing. Key features include crystal-clear 1080p video with lossless 12X optical zoom, enabling close interaction with your team. It can simultaneously send 1080p video via HDMI, 3G-SDI, and IP streaming for maximum flexibility. 3G-SDI is great for long-distance 1080p video. The 12X models offer a wide field of view and can zoom into a narrow 6.9 degrees. Each camera includes in/out RS-232 and RS-485 ports for integration with larger control systems. It also has a HDMI output for up to 1080p resolution, and supports h.265 IP streaming, h.264, and multicast streaming. The software is open source for customization. PTZOptics provides a 3-year warranty with repairs handled in the USA repair center near Philadelphia, PA. Technical specifications: Color: Gray; Video CMOS Sensor: 1/2.7” CMOS, 2.07 Mega Pixels; Frame Rate: 1080p 60/50/30/25, 1080i 60/50/30/25, 720p 60/50/30/25; Lens: 12x, F3.5mm - 42.3mm, F1.8 - F2.8; Lens Zoom: 12x, 16x Digital Zoom; Field of View: 72.5 deg; Min Lux: 0.5 Lux at F1.8, AGC ON; Shutter Speed: 1/30s - 1/10000s; SNR: >=55dB; Vertical Flip & Mirror: Supported; Horizontal Angle of View: 72.5 deg - 6.9 deg; Vertical Angle of View: 44.8 deg - 3.9 deg; Pan Movement: ±170 deg; Tilt Rotation: -30 deg - +90 deg; Presets: 245 Presets; Video Output Interface: HDMI, 3G-SDI, IP Streaming, CVBS; Network Interface: RJ45; Audio Interface: Line In, 3.5mm; Communication Interface: RS-232, RS485; Baud Rate: 2400/4800/96000 bits; Power Supply Interface: JEITA type Power Adapter (DC IN 12V); USB Interface: USB 2.0 (for firmware updates only); Dimension inches: 5”W x 6.5”H x 6.63”D (8.6“ Height Extended); Box Dimensions: 9” x 9” x 10” | 228mm x 254mm x 228mm; Camera Weight: 3.25 lbs. (1.47 kg); Boxed Weight: 5.4 lbs. (2.45 kg); Power Supply: 8W; Input Voltage: 12V DC (10.8 - 13.0V DC).
Using the PTZOptics PT12X-SDI camera is easy. First, connect the camera to a power source using the provided power adapter. Then, connect the video output interfaces like HDMI, 3G-SDI, or use IP streaming to your desired device. You can control the pan, tilt, and zoom functions through the RS-232 or RS-485 ports with compatible control systems. When using for long - distance video, 3G-SDI is a great choice. For video conferencing, HDMI or IP streaming works well. Remember to keep the camera in a clean and dry place. Avoid exposing it to direct sunlight or extreme temperatures. If you need to update the firmware, use the USB 2.0 port. In case of any issues, PTZOptics offers a 3 - year warranty, and repairs are done at their USA repair center near Philadelphia.
