Product Description

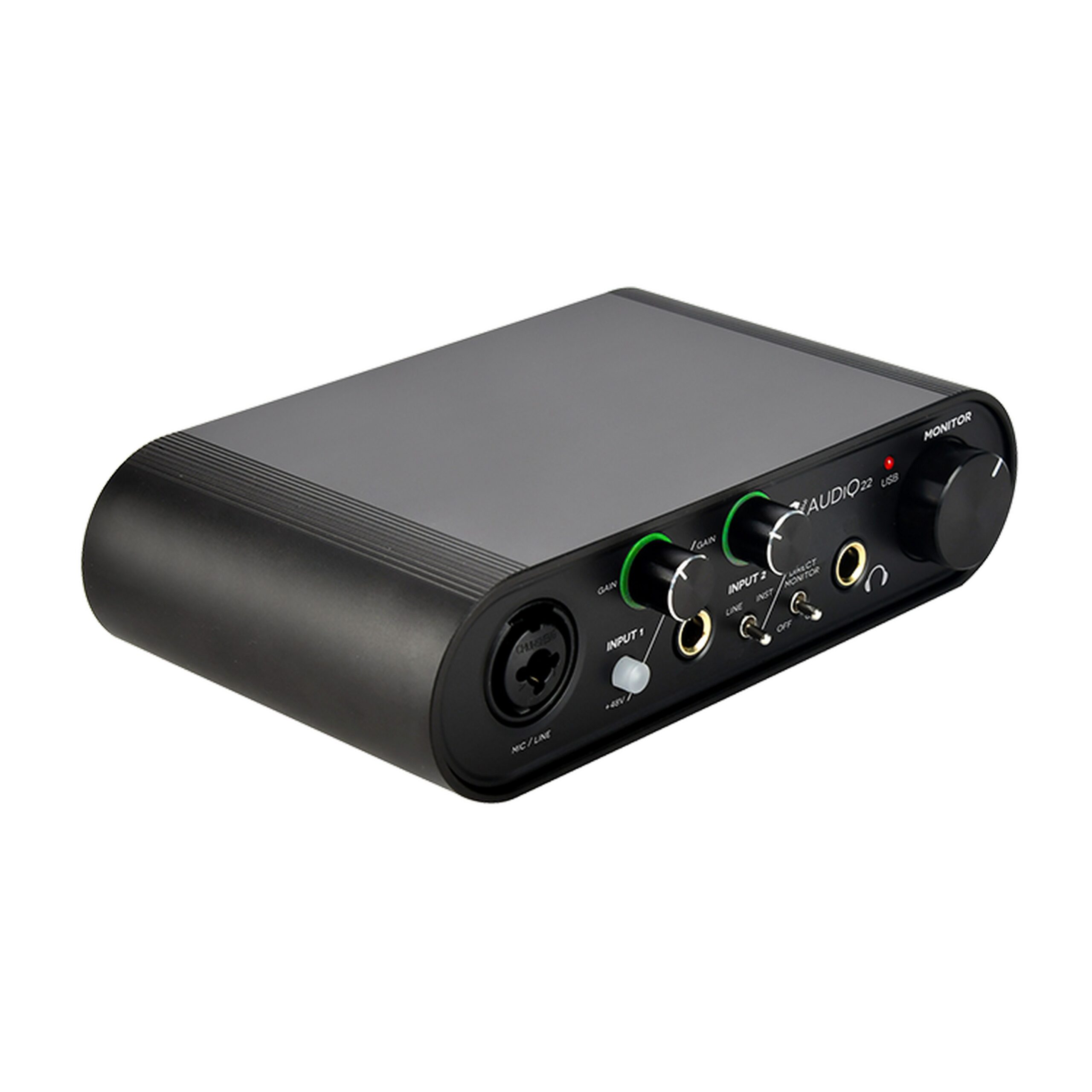

The ROQ Audio AUDIQ 22 is a top - notch 2 In/2 Out USB audio interface. Powered by the USB bus and built with a compact, durable aluminum construction, it's perfect for on - the - go recording or for a permanent spot on your desk. Key features include a Mic / Line XLR/TRS combo input with +48V phantom power, a switchable 6.35mm / 1/4” TRS line input with Hi - Z / Line level, a 3.5mm input for auxiliary equipment, 6.35mm / 1/4” headphone and line outputs for monitoring, zero - latency direct monitoring, signal/peak LED illumination on inputs, and a USB B connection for power and interface. It offers high - resolution 2 in 2 out USB interface for 24 - bit/96kHz recording, a superior quality mic preamp, and switchable +48V phantom power for condenser microphones. The 1/4'' TRS input with Hi - Z / Line switch can connect guitars or line - level equipment. With zero - latency analog monitoring, dedicated line outputs for monitor speakers, USB power (no external supply needed), USB - B 2.0 connectivity, it's compatible with major DAWs on Mac/PC. The latest ASIO compatible drivers are available on the ROQ Audio Support page. Technical specs: Sampling rates are 44.1, 48, 88.2, 96kHz; bit depth is 24 - bit; ADC dynamic range is 101dB A - weighted (all inputs); ADC Chipset dynamic range is 114dB; DAC dynamic range is 105dB A - weighted (all outputs); DAC Chipset dynamic range is 114dB. It's compatible with Microsoft Windows and Apple Max OS X.
Using the ROQ Audio AUDIQ 22 is a breeze. First, connect it to your computer via the USB B connection. You don't need an external power supply as it's USB - powered. If you're using a condenser microphone, switch on the +48V phantom power. For guitars or line - level equipment, use the 1/4'' TRS input and switch between Hi - Z and Line level as needed. Plug in your headphones to the 6.35mm / 1/4” output for personal monitoring. Connect auxiliary equipment through the 3.5mm input. When recording, you can enjoy zero - latency direct and analog monitoring. Make sure to keep your drivers up - to - date by checking the ROQ Audio Support page. As for maintenance, keep the device in a clean and dry place. Avoid exposing it to extreme temperatures or moisture. Wipe it gently with a dry cloth if it gets dirty. Also, be careful when handling the connections to prevent any damage.
