Vaddio 999 - 9660 - 000 Cisco Codec Kit for OneLINK Bridge to Cisco Cameras
Designed for Cisco Telepresence SX20, SX80, or C - Series Codecs. This kit offers more flexibility for room design and installation, giving you greater freedom in camera selection, equipment placement, and cloud conferencing software usage. Tailored for Cisco Codec Systems, it enhances traditional codecs and caters to users who want to enjoy cloud conferencing benefits.
Please note: When connecting a Cisco codec to a Cisco Precision 40 or PrecisionHD 1080p2.5x camera, or a Cisco SX20 codec to any camera, you'll need a Cisco CAB - PHD4XS2 - SPLIT cable.
Benefits include:
- Greater flexibility in camera and codec placement, not limited by codec location
- HDBaseT interface extends power, video, and control up to 328 feet (100 meters), allowing Cisco systems in larger rooms
- Deliver uncompressed, high - definition cloud conferencing via USB 3.0 on the OneLINK Bridge, removing traditional codec restrictions
- Connect to various cloud conferencing software like Google Hangouts, Skype for Business, WebEx, and Zoom
- Plug - and - play usability for BYOD conferencing
- Intuitive browser - based user interface for camera control and remote management
This Package Includes:

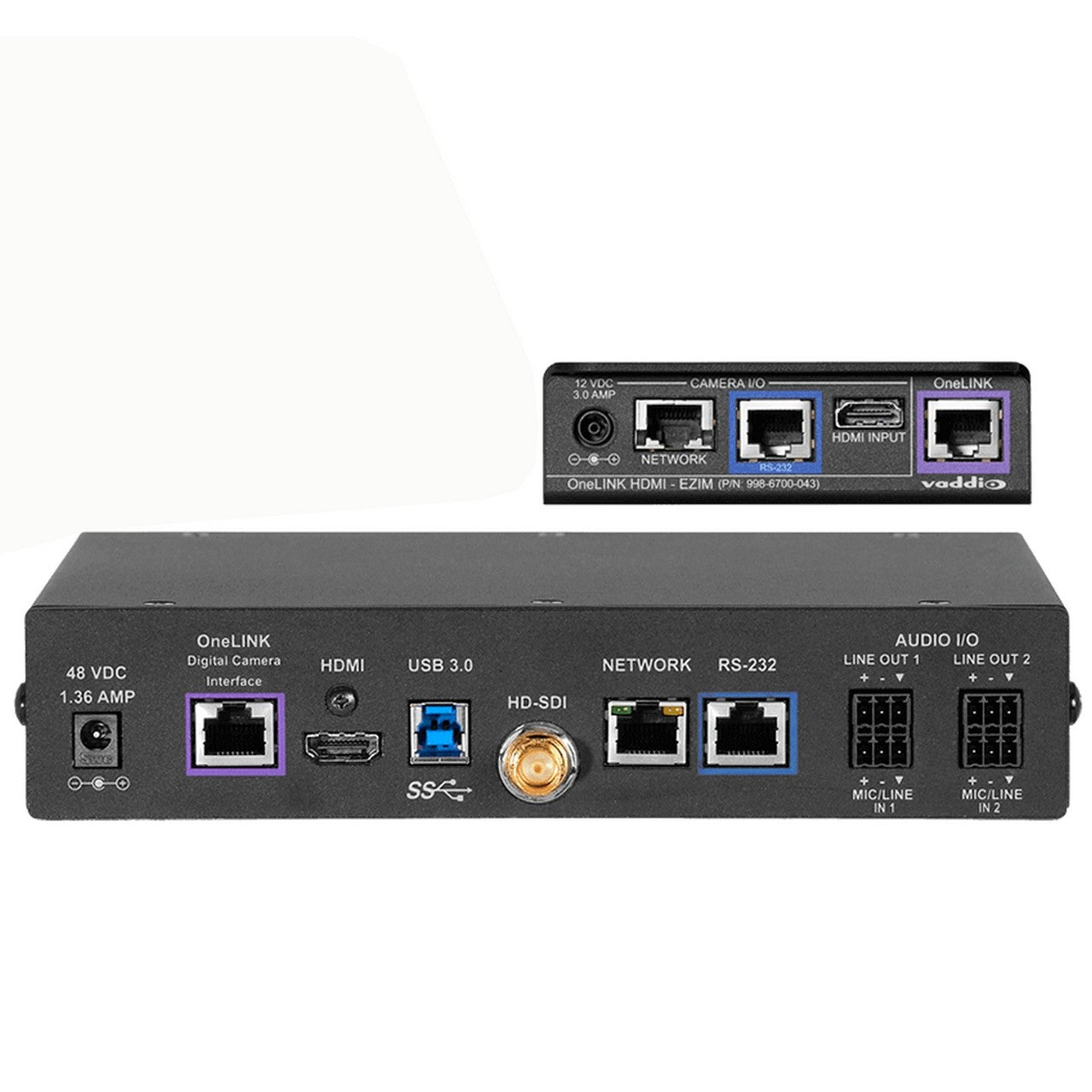

OneLINK Bridge Interface, OneLINK HDMI EZIM with mounting screws, Thin Profile Wall Mount (black) with mounting hardware, Quick - Start Guide, 48V power supply with AC cord set(s), 4 qty 3 - position phoenix - style connectors, 1' (0.3m) and 3' (0.9m) cat - 5 cables (black), 1' (0.3m) directional cat - 5 cables for Cisco PrecisionHD and SX20, 1' (0.3m) and 3' (0.9m) HDMI cables, 1' (0.3m) EIAJ - 04 to 5.5x2.1 power cable for camera, 6' (1.8m) USB 3.0 cable (type A to B), EZCamera RS - 232 Control Adapter, and EZCamera RS - 232 Control Adapter 998 - 1002 - 232 for Cisco codec serial 9 - pin ports.
* If connecting to a Cisco PrecisionHD 4xS2 camera, a user - supplied Cisco CAB - HDMI - PHD4XS2 - SPLIT cable is required.
** If connecting to a Cisco SX20 codec, a user - supplied Cisco CAB - HDMI - PHD4XS2 - SPLIT cable is required.
Key Features:
- Simple and clutter - free camera extension with HDBaseT technology
- Power, control, and video transmission up to 328ft (100m) over a single Cat - 5e/6 cable
- Bridges audio and video for easy soft - client conferencing
- Simultaneous HDMI, USB 3.0, and HD - SDI outputs
- Configurable audio matrix with AEC
- Up to 1080p/60 resolution available over uncompressed USB
Using this Vaddio Cisco Codec Kit is a breeze. First, refer to the Quick - Start Guide included in the package. It'll walk you through setting up the OneLINK Bridge Interface and other components. When installing, make sure to place the equipment in a location that gives you the best camera view and fits your room design. For power, connect the 48V power supply with the AC cord set. When connecting cameras and codecs, remember the special cable requirements. If you're using a Cisco Precision 40, PrecisionHD 1080p2.5x camera, or a Cisco SX20 codec, you'll need a Cisco CAB - PHD4XS2 - SPLIT cable. Also, if you're connecting to a Cisco PrecisionHD 4xS2 camera or a Cisco SX20 codec, a user - supplied Cisco CAB - HDMI - PHD4XS2 - SPLIT cable is needed. For day - to - day use, you can control the camera and manage the system through the intuitive browser - based user interface. When it comes to maintenance, keep the equipment clean and dust - free. Check the cables regularly for any signs of wear and tear. If you run into any issues, refer back to the guide or contact customer support.
