Product Description

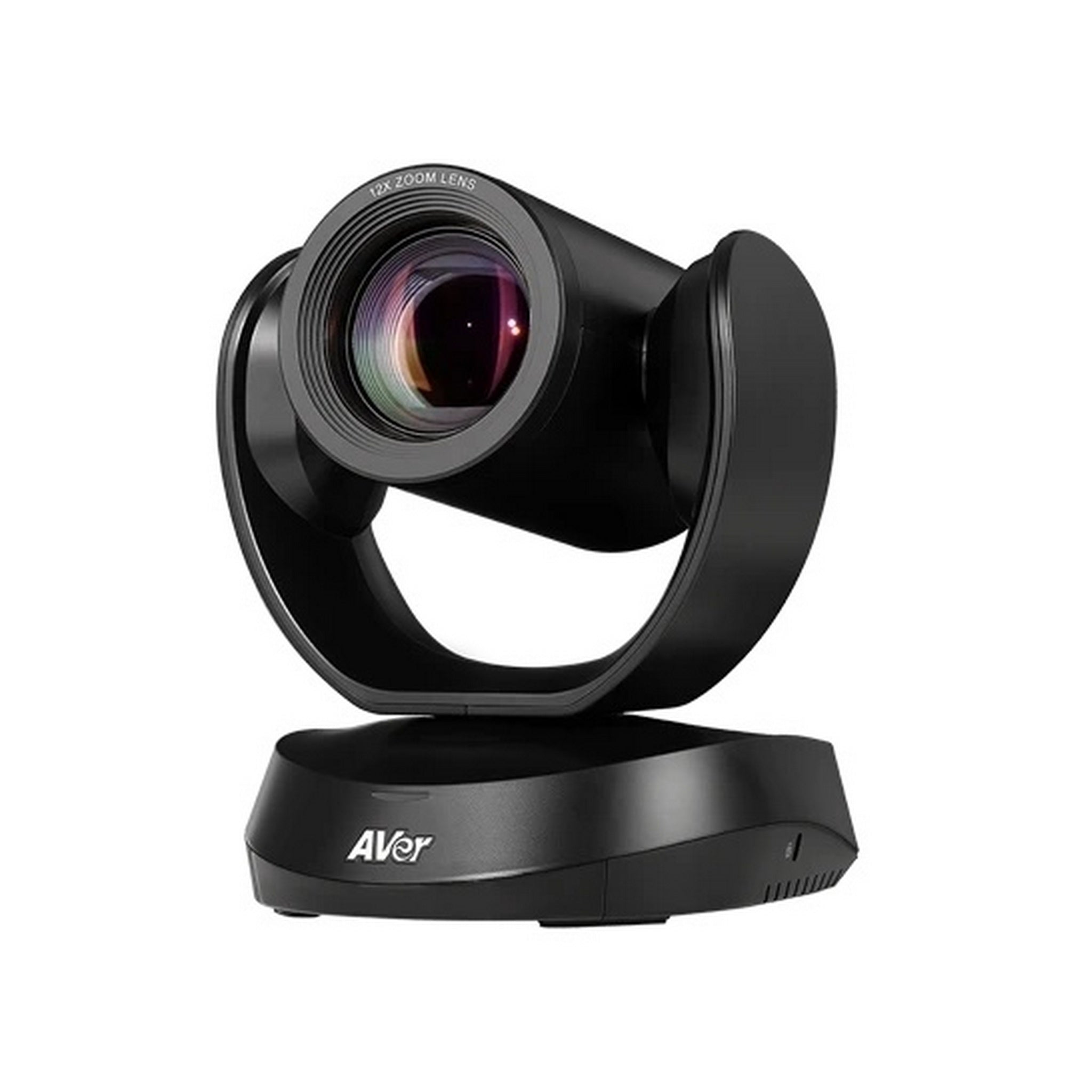

The AVer Pro2 CAM520 is a state - of - the - art video conferencing camera crafted for medium to large conference rooms. Packed with advanced features, it takes your meetings to a whole new level. With a 24X total zoom and the improved AVer SmartFrame, it guarantees seamless and hassle - free meetings. Innovative features like Sony True WDR, IP video streaming, and a PoE+ port elevate your video conferencing experience.
The CAM520 Pro2 offers crystal - clear visuals for an engaging and natural meeting environment. Its SmartFraming feature automatically adjusts the focus and tracks the presenter, eliminating the need for a remote. You can stream and record vibrant full - HD 1080p videos at 60fps via USB 3.1 or RTSP/RTMP H.264 broadcasting.
Thanks to its 24x total zoom, no detail is missed. It's perfect for professional - quality video calls, delivering sharp and detailed video. Whether you're zooming in on whiteboard content, documents, or people up to 60 feet away with an 84° FOV, it ensures distortion - free clarity.
The enhanced AVer SmartFrame improves meeting efficiency and safety. Its next - generation facial and body detection technology can spot everyone, even those wearing masks, from up to 10 meters away. With PoE+ connectivity, USB virtualization, and web - based management, controlling your camera is a breeze.
This camera also has great integration capabilities. You can connect it to joystick controllers and control systems via RS232 or Visca over IP for seamless control.
Key Features:
- Ideal for medium to large conference rooms, ensuring seamless video conferencing.
- Agile features like 24X total zoom and improved AVer SmartFrame enhance meetings.
- Innovative features such as Sony True WDR, IP video streaming, and PoE+ port elevate the experience.
- A 36x total zoom lens allows for precise capture of all conference details.
- AVer Smart Composition offers layout flexibility for accurate attendee capture.
- The enhanced AVer SmartFrame boosts efficiency and security.
- HDMI enables dual display and 3 - way output for versatile display options.
- Enterprise - grade imaging delivers exceptional quality.
- Advanced features boost productivity and professionalism.
- Outstanding performance and reliability ensure smooth video conferences every time.
Technical Specifications:
Camera: Sony Exmor 1/2.8 low - lux CMOS 2M pixel.
Resolution: Multiple options available at various frame rates. SmartFrame for auto - FOV adjustment, True WDR up to 120db, and excellent backlight compensation.
Zoom: 24X total zoom (12X optical zoom).
Field of view: 84.5°/ 77.5°/ 48°.
Lens focal length: 3.9mm (wide) ~ 47.3mm (tele).
Lens F#: 1.8 (wide) ~ 2.8 (tele).
Other features include mirror, flip, AE, white balance control, and a minimum focus distance of 1.5m.
Motorized pan & tilt: Pan ±170°, tilt +90° (up) - 30° (down), 10 presets, and fast, quiet movement.
Video format: YUV, YUY2, MJPEG, NV12. Network formats: H.264, H.265. Protocols: RTSP, RTMP.
Connectivity: 12V/2A power adapter, Mini DIN9, USB3.1 Type - B, IP (RJ45).
USB: 3.1 Gen1 Type - B, backward compatible, UVC 1.1, UVC 1.5 with firmware upgrade.
Control: IR remote, VISCA/pelco P/pelco D via RS232, VISCA over IP.
WebUI: Access via Chrome.
OSD setting: HDMI out, PTZApp2.
Mount: Wall - mount bracket included, optional TV and ceiling mounts.
System requirements: Windows 7/10, Mac OS X 10.7 or higher, Google Chromebook (version 76.0.3809.136 or later).
Hardware spec: 3.20 GHz Intel Core, i5 - 4460 processor, 4 GB RAM or more, USB 3.1 port.
Web browser: Chrome (version 76.x or above), Firefox (version 69 or above), IE not supported.
Power supply: AC 100V ~ 240V, 50/60 Hz. Consumption: 12V, 2A. PoE+: 802.3at.
Software: EZManager for central management, PTZApp2 for control and firmware upgrade, EZLive for streaming and recording.
Environmental data: Operating temperature 0 ~ 40°C, humidity 20 ~ 80%. Storage temperature - 20 ~ 60°C, humidity 20 ~ 80%.
Dimensions: Package 256 x 256 x 274 mm, weight 3.335kg/7.35 lbs. Camera 182 x 142.7 x 153 mm, 1.47 kg. Remote 200 x 50 x 21 mm, 0.09 kg.
Package contents: CAM520 Pro2 unit, remote, USB cable, power adapter, quick - start guide, warranty card, QR code card, wall - mount bracket, ¼ tripod screw, Mini DIN9 to mini DIN8 RS232 adapter.
Optional Accessories: MiniDIN8 to D - SUB9 RS232 Cable, Ceiling Mount.
Warranty: Camera 3 years (US & Canada only), Accessories 1 year.
Using the AVer Pro2 CAM520 is easy. First, set up the camera. You can use the included wall - mount bracket to fix it on the wall. There are also optional TV and ceiling mounts if you prefer other setups. Connect the power adapter to the camera and plug it into a power source. You can also use PoE+ for power if your network supports it.
For video connection, use the USB3.1 Type - B cable to connect the camera to your computer. Make sure your computer meets the system requirements, like having Windows 7/10, Mac OS X 10.7 or higher, or a Google Chromebook with version 76.0.3809.136 or later. Also, use a compatible web browser such as Chrome (version 76.x or above) or Firefox (version 69 or above).
When in a meeting, the SmartFraming feature will automatically adjust the focus and track the presenter. You can also use the IR remote control to manually adjust settings like pan, tilt, and zoom. If you want to connect it to other control systems, use the Mini DIN9 for RS232 in & out connection or Visca over IP.
Here are some important notes. Don't expose the camera to extreme temperatures. The operating temperature should be between 0 and 40 degrees Celsius, and the storage temperature between - 20 and 60 degrees Celsius. Keep the humidity between 20 and 80% for both operation and storage.
For maintenance, keep the camera lens clean. You can use a soft, dry cloth to wipe it gently. Regularly check the cables for any signs of damage. If you need to upgrade the firmware, you can use the PTZApp2 software, which can upgrade it either automatically or manually. Also, use the EZManager software to manage multiple cameras if you have them, including remotely upgrading firmware and adjusting settings.
