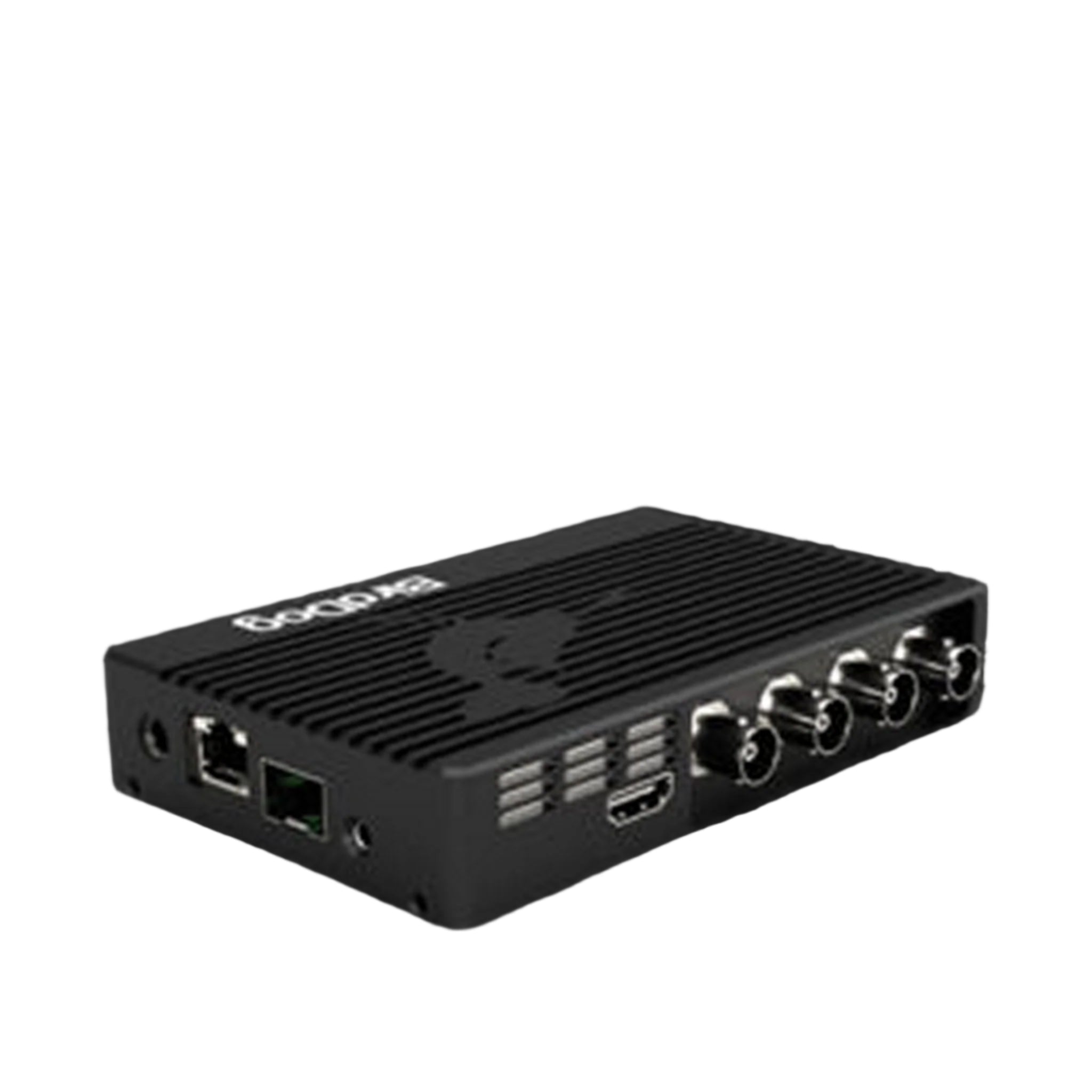

BirdDog 4K QUAD 4 Channels of 12G-SDI NDI Encoder/Decoder

The BirdDog 4K QUAD is a top - notch device that offers four channels of 12G SDI to 4Kp60 NDI encoding and decoding. It supports a wide range of video formats including UHD 3840x2160 at various frame rates, HD 1920x1080p, HD 1920x1080i, and HD 1280x720p. With HDMI 2.0 output and 4 selectable 12G SDI input/output ports, it provides flexible video connectivity. The audio input options are diverse, with HDMI and SDI supporting 2Ch, 48kHz, and a 3.5mm audio stereo headphone/line output. It can downconvert NDI output from 4K to 1080p and 1080p to 720p. The device uses NDI full - bandwidth i - frame compression and features an integrated 4 - line OLED status display and a multiviewer with HDMI output. It has onboard bi - color and selectable tally indicators. Network connectivity includes Ethernet RJ45 1000baseT with integrated PoE and an open SFP+ cage. Measuring 135x85x25mm and weighing 320g, it's compact. It can be powered by DC12v / 16W or PoE+ 802.3at.

Using the BirdDog 4K QUAD is easy. First, connect your video source to the 12G SDI input ports. You can choose different video formats according to your needs. Then, connect the HDMI output to your display device. For audio, you can use the HDMI, SDI, or 3.5mm audio input as you like. When it comes to network connection, you can use the Ethernet RJ45 with PoE or an SFP+ adapter if needed. Remember, the SFP+ adapters are sold separately. To configure the device, use the embedded web configuration panel. As for maintenance, keep the device in a dry and cool place. Don't expose it to direct sunlight or extreme temperatures. Also, make sure the power supply meets the requirements of DC12v / 16W or PoE+ 802.3at. If there are any issues, check the connections first and refer to the user manual.
