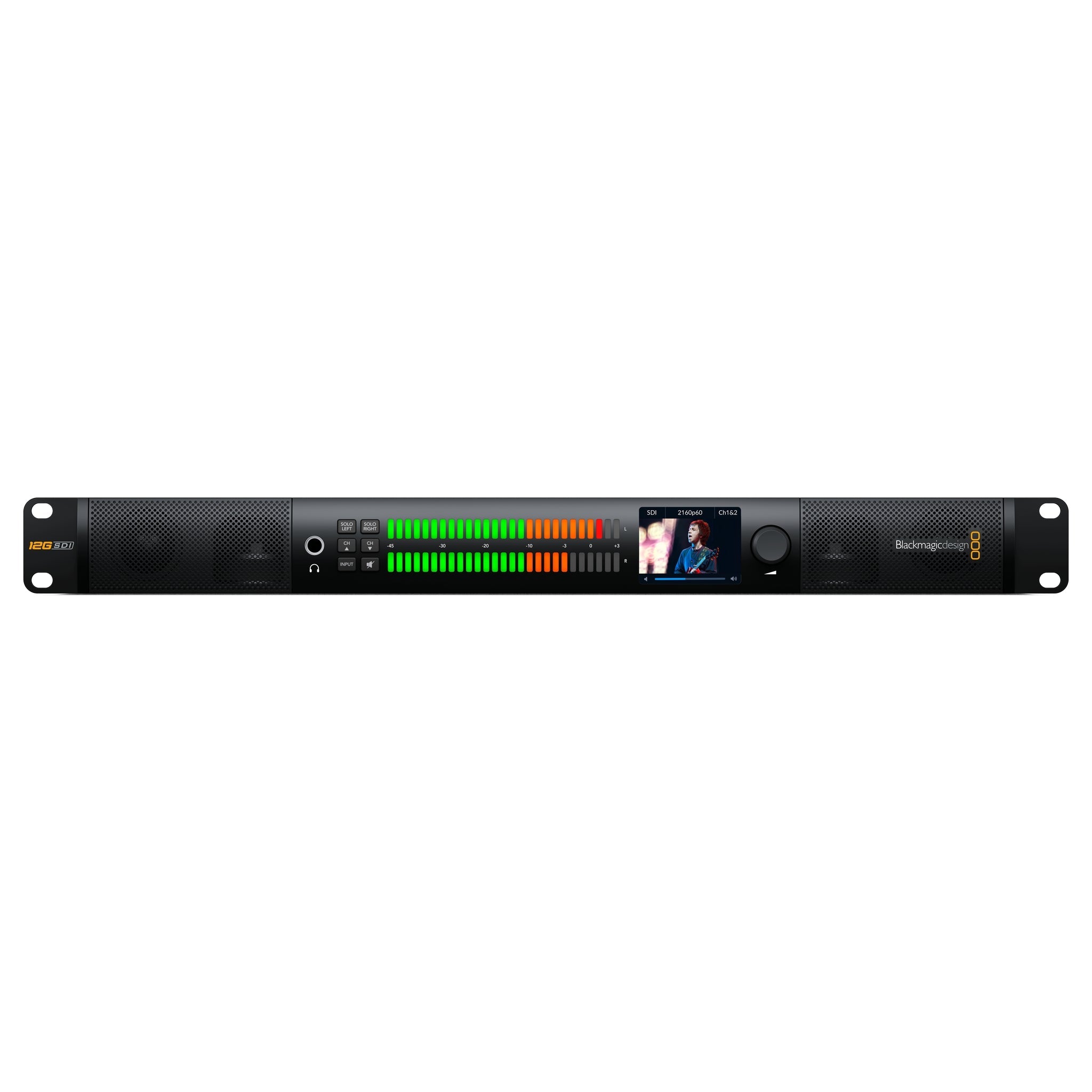

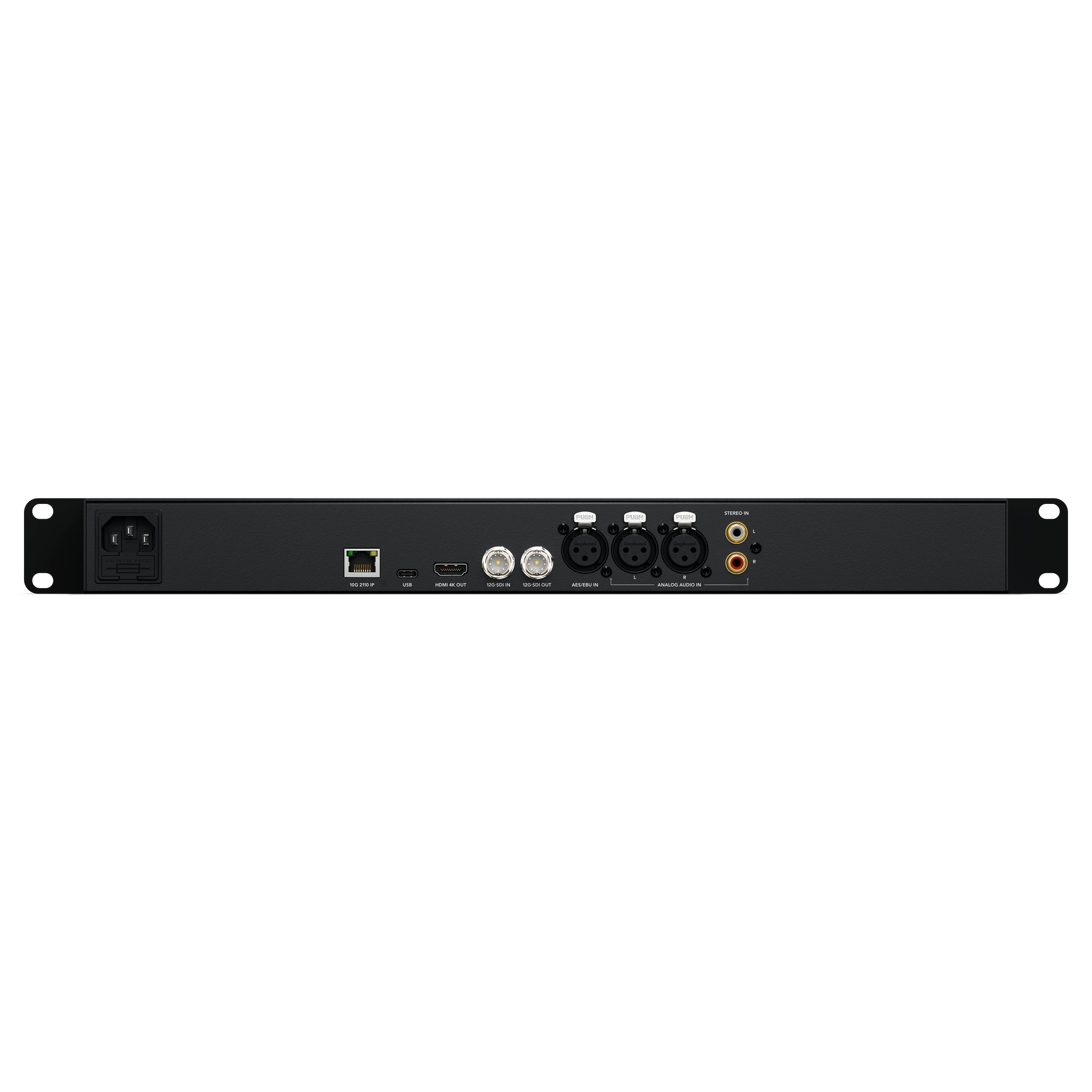

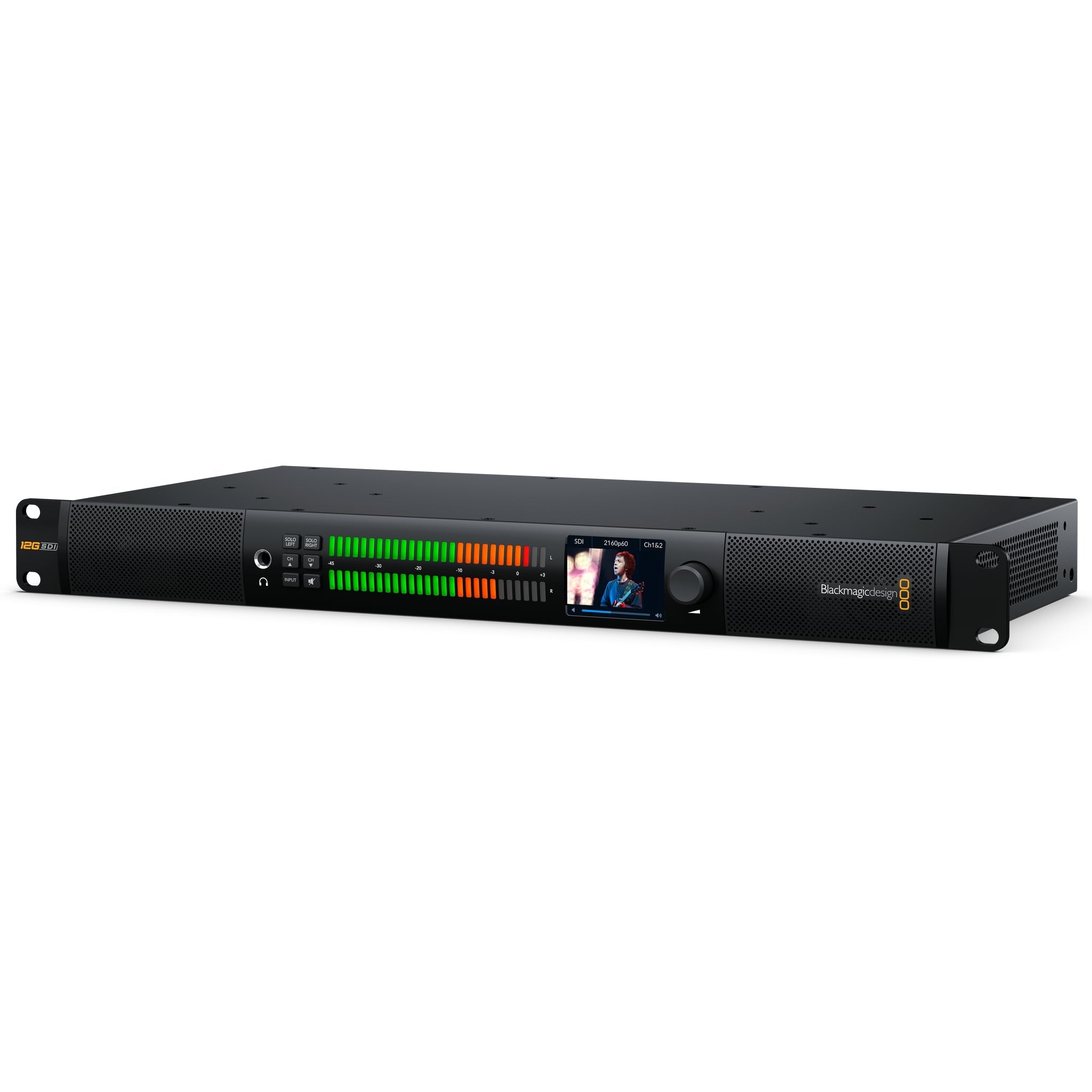

The Blackmagic Design Audio Monitor 12G G3 is a top - notch, rack - mounted audio monitoring solution crafted for broadcast pros who need high - performance and reliable gear. Its sleek 1U compact design integrates the latest audio and video tech, making it a great fit for any production setting, whether it's a traditional broadcast setup or an IP - based workflow. It offers unbeatable versatility and ease of use. With a 10G Ethernet SMPTE - 2110 IP input, you can directly monitor IP broadcast systems without external converters. The high - precision audio meter with advanced ballistics ensures accurate audio level checks. It has various input options like a 12G - SDI input for SD, HD, and Ultra HD, balanced analog XLR, HiFi, and AES/EBU inputs. The HDMI video output allows you to monitor both SDI and IP video sources at the same time. Built for those who demand high - quality audio and video monitoring, this device guarantees excellent performance and reliability in any broadcast environment. Its solid construction and comprehensive features make it a must - have for studios, production trucks, and other broadcast spaces. Key features include a compact 1U rack - mounted design, 10G Ethernet SMPTE - 2110 IP input, high - precision audio meter, 12G - SDI input for multiple formats, multiple audio inputs, and HDMI video output for dual - source monitoring.
Using the Blackmagic Design Audio Monitor 12G G3 is straightforward. First, connect it to your power source using the internal 100 - 240V AC power supply. Then, choose the appropriate input for your audio and video sources. You can use the 10G Ethernet SMPTE - 2110 IP input for IP - based systems, or other inputs like 12G - SDI, balanced analog XLR, HiFi, or AES/EBU. The built - in control panel with a 2.2 - inch display helps you view video input, video standard, and selected audio input. For audio level monitoring, use the high - precision audio meter. You can switch between different metering modes like VU, PPM EBU, PPM BBC, or Loudness. When it comes to video monitoring, the HDMI output allows you to connect to external displays for simultaneous SDI and IP video monitoring. Make sure to operate the device within the recommended temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). Store it in a place with a temperature between - 20 to 45 degrees Celsius (- 4 to 113 degrees Fahrenheit) and a non - condensing relative humidity of 0% to 90%. To keep it in good condition, regularly check for software updates via USB or Ethernet connection. This will ensure that the device functions optimally and has the latest features and bug fixes.
