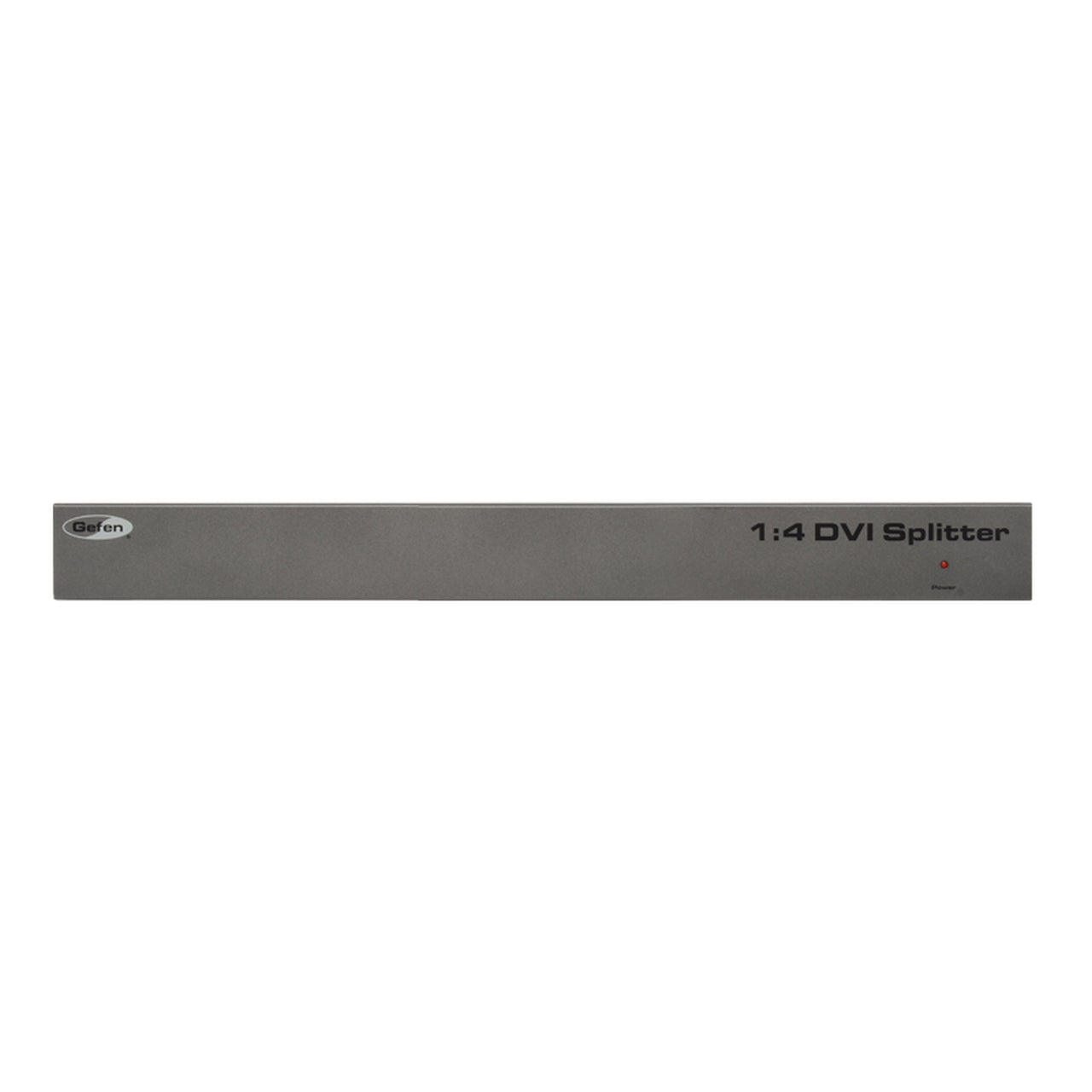

Gefen EXT-DVI-144N 1x4 DVI Splitter

The Gefen EXT - DVI - 144N is an outstanding 1x4 DVI splitter. DVI, or Digital Visual Interface, is a widely - used industry connector that links digital video displays to video sources like computers. This 1:4 DVI splitter acts as a powerful distribution hub. It can send the same DVI graphics source to up to four DVI digital displays, such as flat panels or projectors. It's a reliable choice for creating a multi - viewing environment, always maintaining high - resolution video. Key features include a locking power supply for safety, a rack - mountable design for easy installation, the ability to split one Single - Link DVI source into four Single - Link DVI outputs, support for video resolutions up to 1920 x 1200, and compliance with the DDWG standard for DVI monitors. Technical specs: Maximum Pixel Clock is 165MHz, Input Video Signal is 1.2V p - p, Input DDC Signal is 5V p - p (TTL), Video Input Connectors are one 29 - pin DVI - I female (digital only), Video Output Connectors are four 29 - pin DVI - I female (digital only), Power Supply is 5V DC with locking, Power Consumption is 5W (max.), Dimensions are 17.1' W x 4.2' D x 1.75' H, Rack Size is 1U (rack ears included), and Shipping Weight is 5 lbs.

Using the Gefen EXT - DVI - 144N 1x4 DVI splitter is easy. First, connect your video source to the single DVI - I 29 - pin female input connector on the splitter. Then, connect up to four DVI digital displays like flat panels or projectors to the four output connectors. Plug in the 5V DC locking power supply to power up the device. Make sure your video source has a resolution up to 1920 x 1200 for the best performance. When it comes to maintenance, keep the splitter in a dry and cool place. Avoid exposing it to dust and moisture. If the device is not working properly, check the power connection and make sure all cables are securely plugged in. When not in use, you can mount it on a rack using the included rack ears to save space and keep your setup organized.
