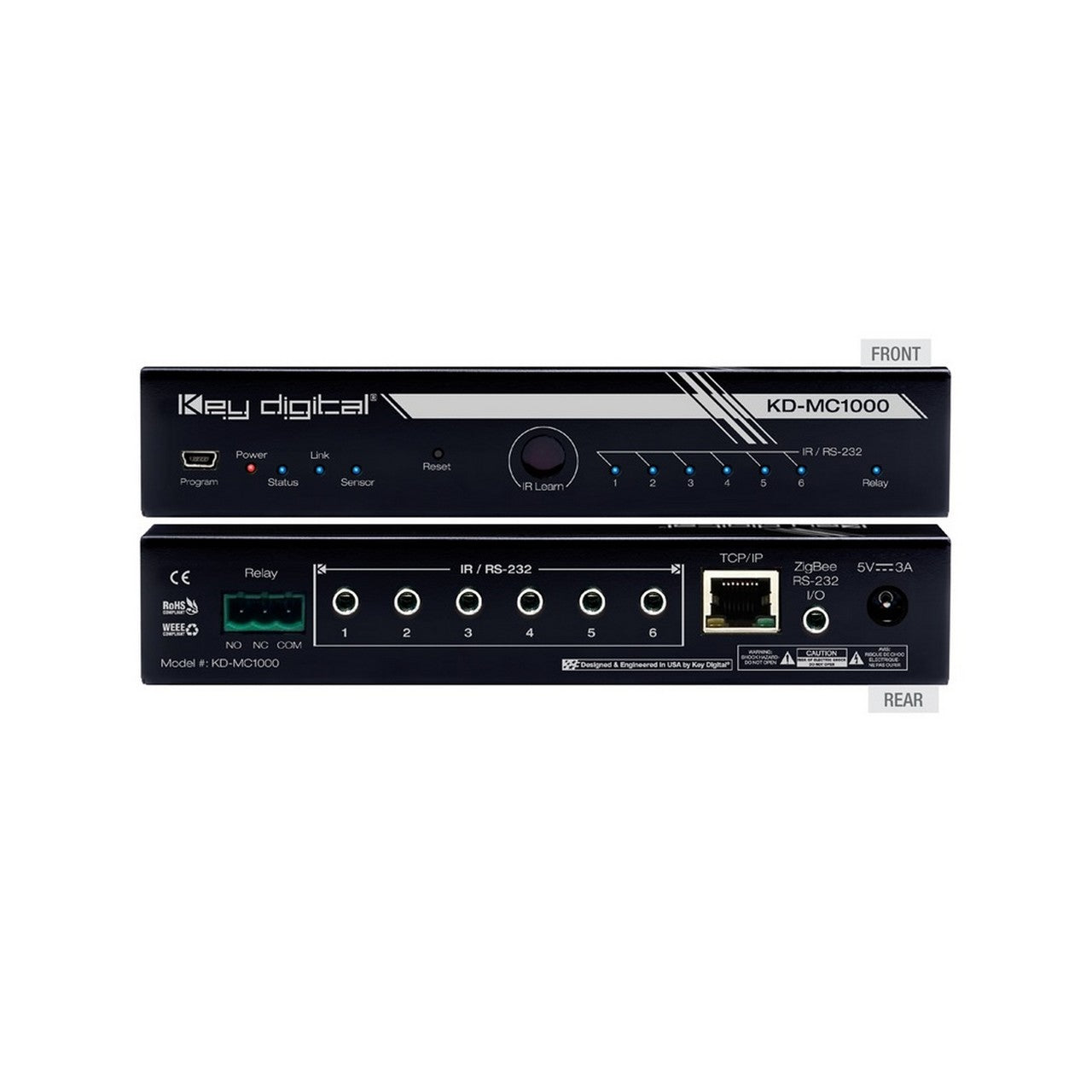

Key Digital KD-MC1000 8 Port LAN Master Controller

The Key Digital KD-MC1000 is an outstanding 8-port LAN master controller. It offers wired/LAN connectivity across up to 8 ports. Key features include being an iOS backbone, built from scratch using Apple's iOS devices like iPad, iPad mini, iPhone, and iPod touch. With a total of 8 ports - 6 MCP35 multi-function I/O ports, 1 relay/contact closure port, and 1 ZigBee wireless port. It also has USB support for firmware upgrades and initial setup. The built-in IR learning feature allows it to learn IR codes from external IR remotes via the front-facing IR window. The relay control enables you to control external equipment with switchable contacts, and any multi-function 3.5mm port can be converted to contact closure with an external Key Digital KD-CCXR200 Converter. Technical specifications show it meets CE, RoHS, and WEEE regulations. It comes in a black metal 1/2U enclosure, with accessories like an external 5V3A power supply, USB cable, 3-pin terminal block for relay, 3.5mm to IR emitter cables, 3.5mm to RS-232 data cables, and rack mount ears. The product dimensions are 6.5” x 4” x 1.13” and shipping dimensions are 8.8” x 6.2” x 3.9”. The product weighs 1.5 lbs and shipping weight is 3 lbs.

Using the Key Digital KD-MC1000 is quite straightforward. First, connect the external 5V3A power supply to get it up and running. Use the USB cable for initial setup and firmware upgrades when needed. If you want to control external equipment, use the relay control with the provided 3-pin terminal block. For using the IR learning feature, point the external IR remote at the front-facing IR window. When using the multi-function 3.5mm ports, you can convert them to contact closure using the external Key Digital KD-CCXR200 Converter. As for maintenance, keep the device in a dry and clean environment. Avoid exposing it to extreme temperatures or humidity. Regularly check the connections of the cables and make sure they are secure. If you encounter any issues, refer to the user manual or contact the customer support.
