Product Description

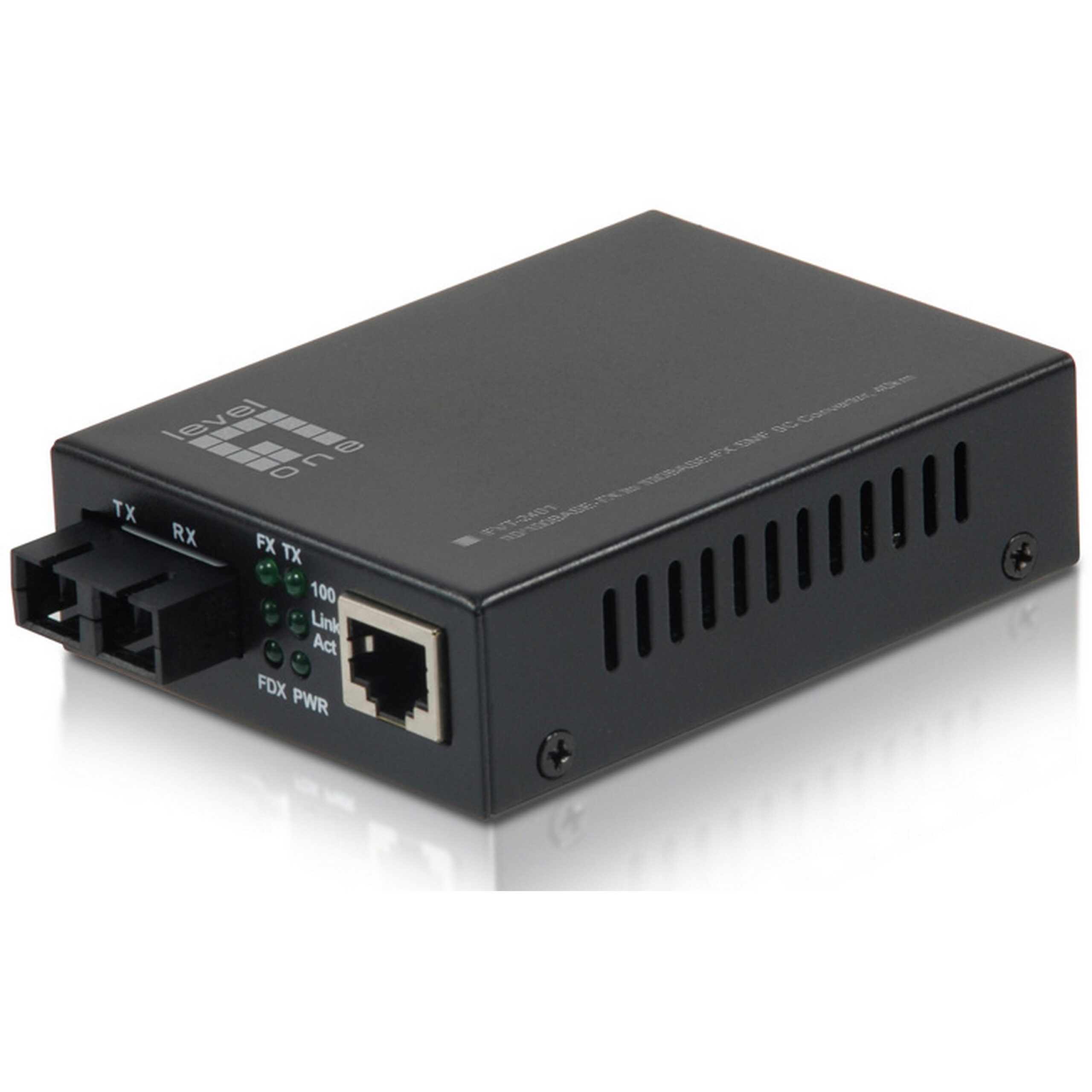

The LevelOne FVT - 2401 SMF SC media converter is a powerful device that can convert network signals between copper and fiber - optic networks. It offers a 10/100Base - TX RJ - 45 port, supports full - and half - duplex switch connectivity, and features 10Base - T and 100Base - TX auto - sensing. When used with single - mode fiber - optic cabling, it can extend the network range up to 40 km. Key features include transferring data from 10/100Base - TX copper to fiber interfaces, a single - mode fiber with an SC connector for up to 40km transmission, built - in LFP (Link Fault Pass - through) (LLCF/LLR) Technology, IEEE 802.3x Flow Control for reliable data transmission, dip switches for customized configuration, low - time lag transmission, and support for extra - long packets up to 1.6KB. It operates in a temperature range from - 10C to 55C. Technical specifications cover standards & protocols, ports, indicators, wavelength, transmission method, power input, power consumption, and more.
Using the LevelOne FVT - 2401 Fast Ethernet Media Converter is easy. First, connect the 10/100Base - TX RJ - 45 port to your copper - based network and the 100Base - FX Single - mode duplex SC port to the fiber - optic cable. Plug in the power adapter to the DC 5V/1A power input. You can customize the settings using the dip switches on the device. For example, you can set the LFP function, choose the transmission mode, and set the UTP port work mode. When using the converter, make sure the operating temperature is between - 10C and 55C and the humidity is between 5% and 90% non - condensing. Avoid exposing it to extreme temperatures or high humidity. For maintenance, keep the device clean and dust - free. If there are any issues with data transmission, check the cable connections and the indicator lights on the device. Refer to the quick installation guide if you need more detailed instructions.
