Product Description

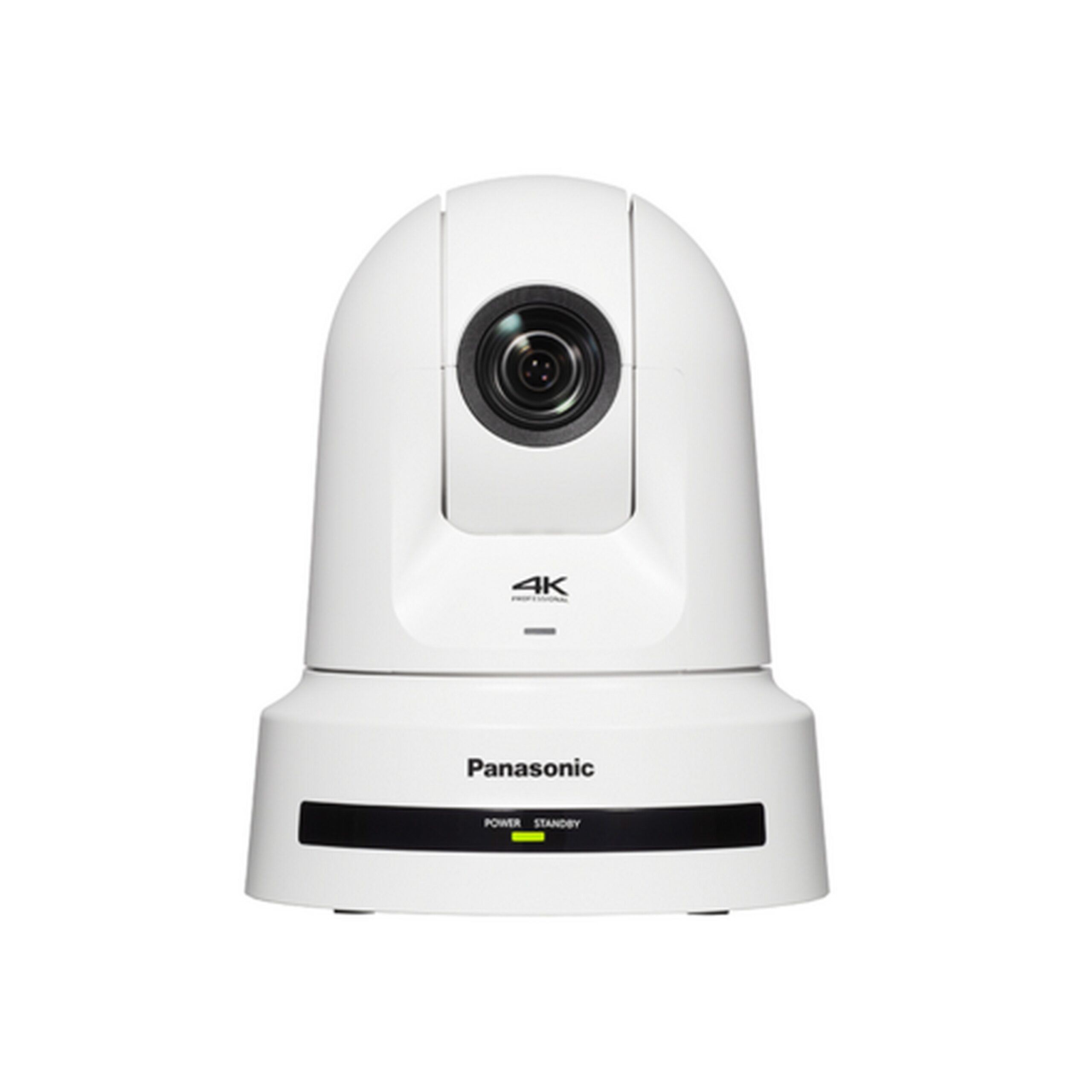

The Panasonic AW-UE80W/K is an outstanding PTZ camera, ideal for capturing natural facial expressions of actors or performers and recording events without disturbing the atmosphere. Its dome - shaped design reduces the feeling of being filmed, and the new direct - drive motor operates quietly, ensuring it won't disrupt production activities. This camera offers high - quality 4K/60p resolution, a wide 74.1° angle, and up to 24x optical zoom for superb video quality. It's highly stable and secure during video streaming, making it suitable for various video production scenarios, from reality shows to business or educational events.
Key Features:
- Supports multiple IP transmission protocols like high - bandwidth NDI, NDI|HX, and SRT.
- Enables 4K 50p/60p shooting.
- Comes with a wide - angle lens having a 74.1° field of view and 24x optical zoom.
- Supports FreeD for AR/VR system building.
- Features a new Direct Drive System for better responsiveness and quiet operation.
Technical Specifications: It has a motorized optical 24x zoom (F1.8 to F4.0), minimum illumination of 3 lx, various zoom options, and multiple input connectors. It also has a wide range of settings for gain, white balance, storage temperature, and more. With support for different image streaming modes, audio compression types, and multiple operating systems, it's a versatile choice for video production.
Using the Panasonic AW - UE80 PTZ camera is straightforward. First, make sure to connect it properly. If you have a PoE++ ethernet hub, use a LAN cable (category 5e or above, straight cable) to connect the camera, with a maximum length of 100 m. If not, the same type of cable can be used. For AW protocol connection, use a LAN cable with a maximum length of 1000 m.
When it comes to shooting, you can select different output formats according to your needs, such as high - bandwidth NDI, SDI, or HDMI. Adjust the zoom, focus, white balance, and other settings through the supported controllers like AW - RP150GJ, AW - RP60GJ, etc.
Some important things to note: Ensure the unit is secured using the supplied mount bracket for safety. The operating noise may be louder in high - speed modes, so use the Normal mode if it's disturbing. Also, be aware that the main unit may appear in the video depending on the pan/tilt position.
For maintenance, keep the camera in an environment with an operating temperature between 0 °C to 40 °C and humidity between 20% to 90% (no condensation). Clean the lens regularly with a soft, dry cloth. Store the camera in a dry place when not in use, with a storage temperature between - 20 to 50 °C.
