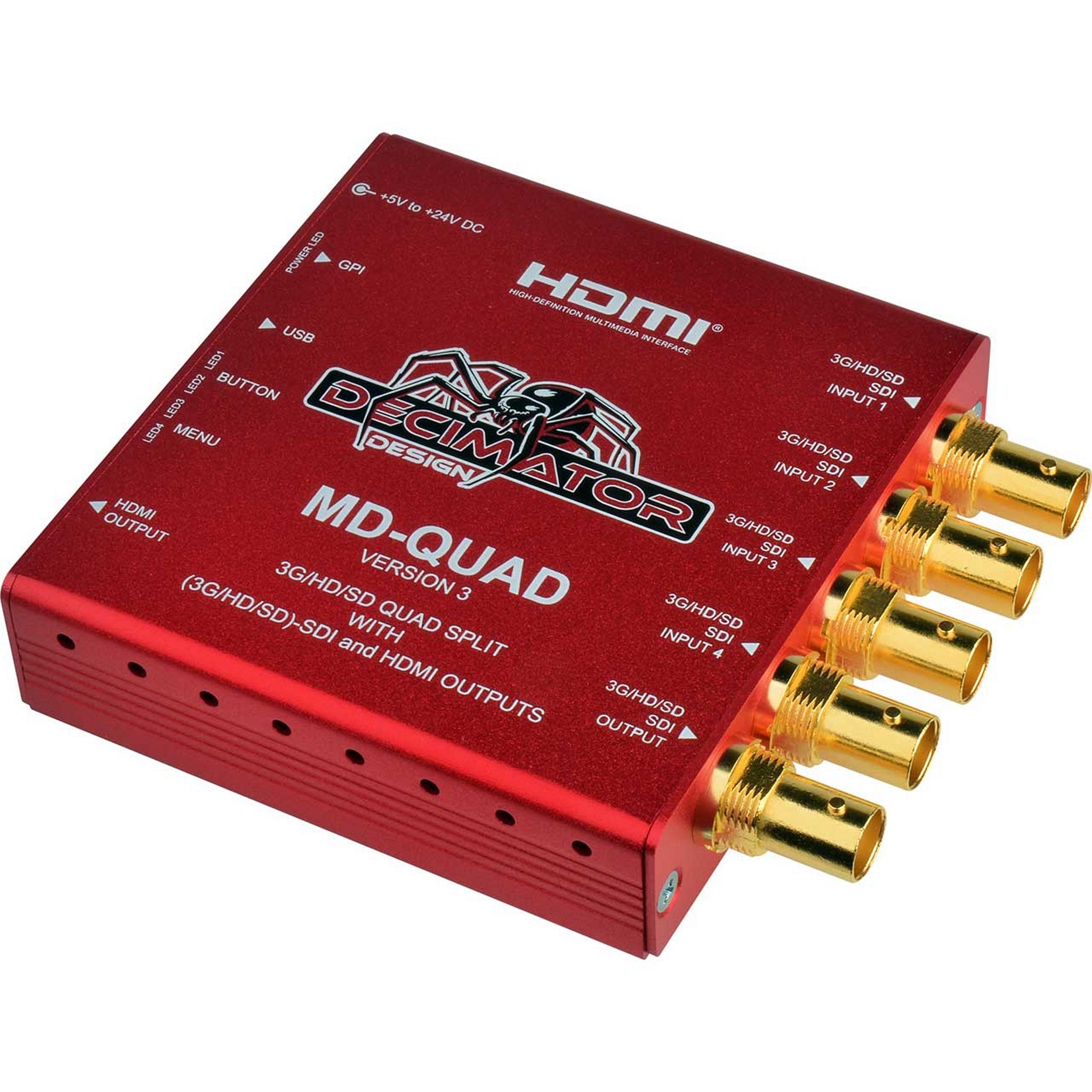

The Decimator Design DEC-MD-QUAD is a compact (3G/HD/SD)-SDI multiviewer and quad-split device with (3G/HD/SDI)-SDI and HDMI outputs. Decimator Design, an Australian company, specializes in advanced video broadcast solutions. Their products like the flagship Decimator and Decimator 2 have set high - quality, cost - effective industry standards. The MD - QUAD, along with other award - winning products, is part of their impressive lineup. It's globally recognized for quality and reliability, a top choice for engineers and media pros. The new UCP (USB Control Panel) Version 2.0.7 for Mac OS X and Windows 32/64 - bit supports 3G level B, enabling easy conversion between 3G levels A and B, and offers horizontal and vertical image flipping per window. MD - QUAD Version 3 has a major upgrade, changing from fixed window quad - splits to a professional customizable 1 - 4 channel multi - viewer and getting custom layouts from the DMON series. Key features include a low - cost design, selectable output format, low - latency buffering for non - synchronous inputs, linked outputs, auto - detecting inputs, 8 - channel audio metering, adjustable display settings, and various control options.

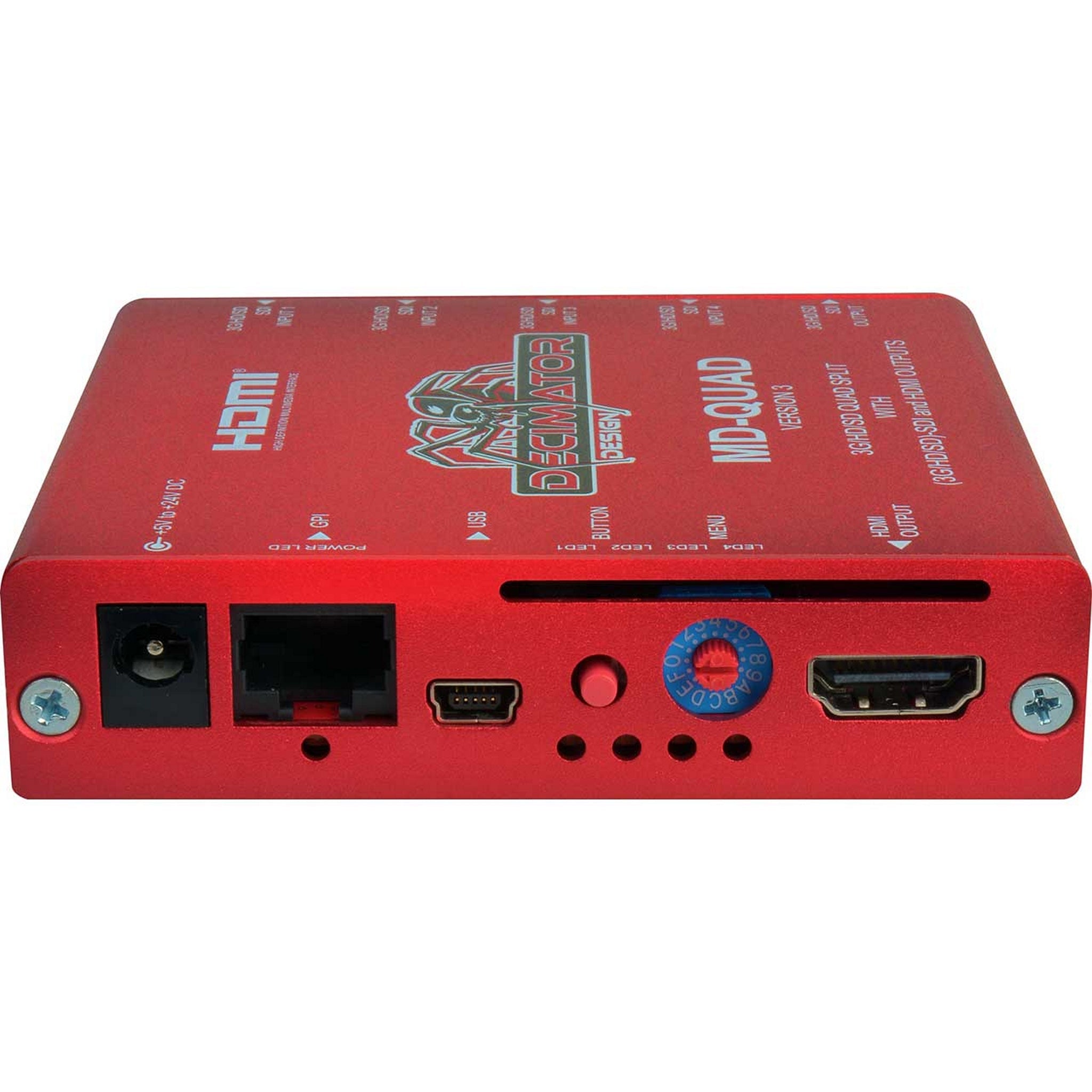

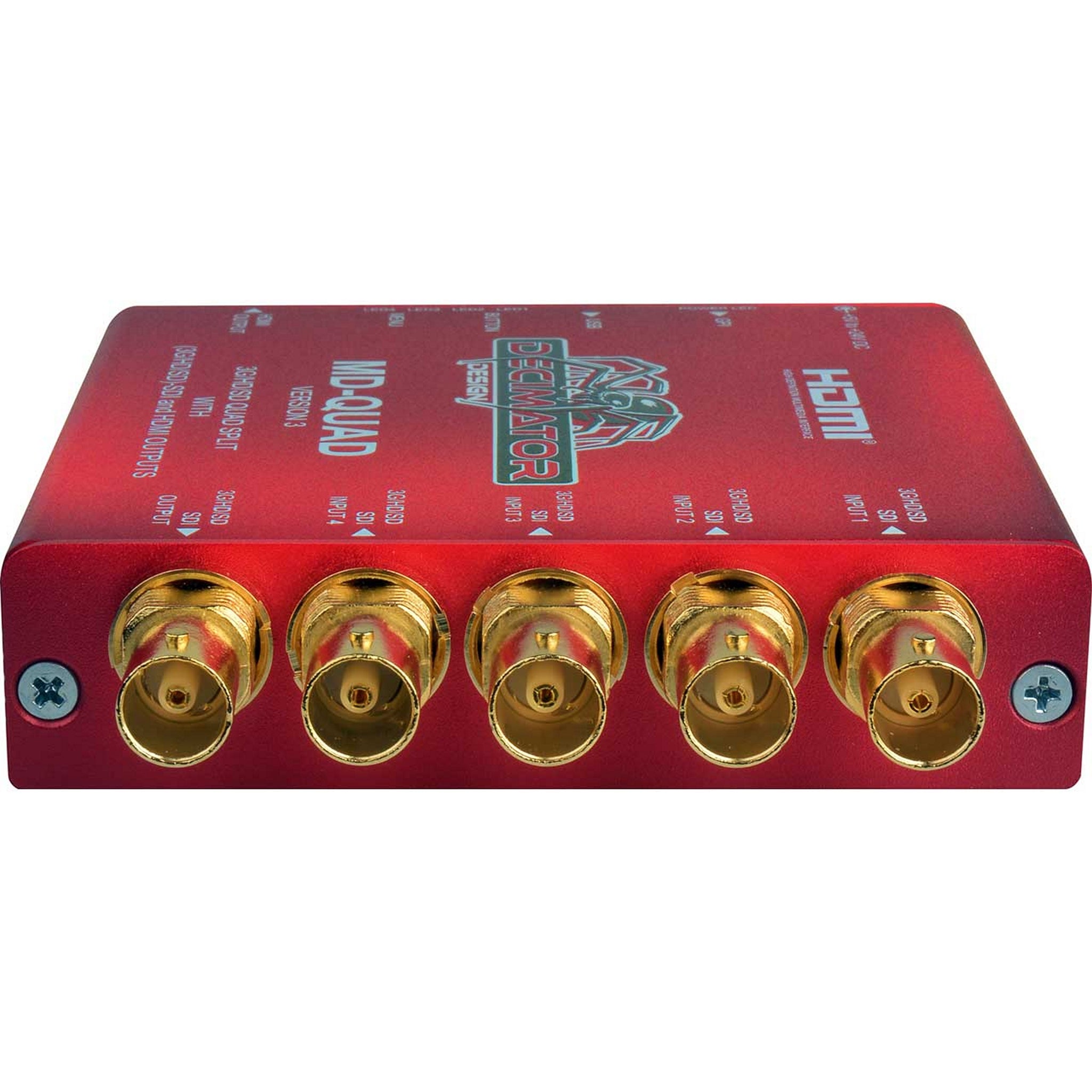

Using the Decimator Design DEC - MD - QUAD is straightforward. First, connect your (3G/HD/SD) - SDI sources to the 4 inputs. You can choose between the quad - split mode or pass - through mode. In quad - split mode, select the output format that suits your needs. The device can handle non - synchronous inputs thanks to its low - latency buffering. When it comes to audio, use the 8 - channel audio metering to monitor your sound levels. You can adjust various settings like transparency, bar thickness, and reference levels. For control, you can use the easy - to - use rotary encoder for menu selection, and the LEDs and push - button for status and control. You can also use the USB port for control and updates, and the GPI on RJ - 45 for remote switching. As for maintenance, keep the device in a clean and dry place. Avoid exposing it to extreme temperatures. Check the locking DC power socket regularly to ensure a stable power supply. If you need to update the software, use the UCP (USB Control Panel) to do so following the instructions provided.
