ESE ES 249 1 x 8 ASCII RS232 Time Distribution Amplifier

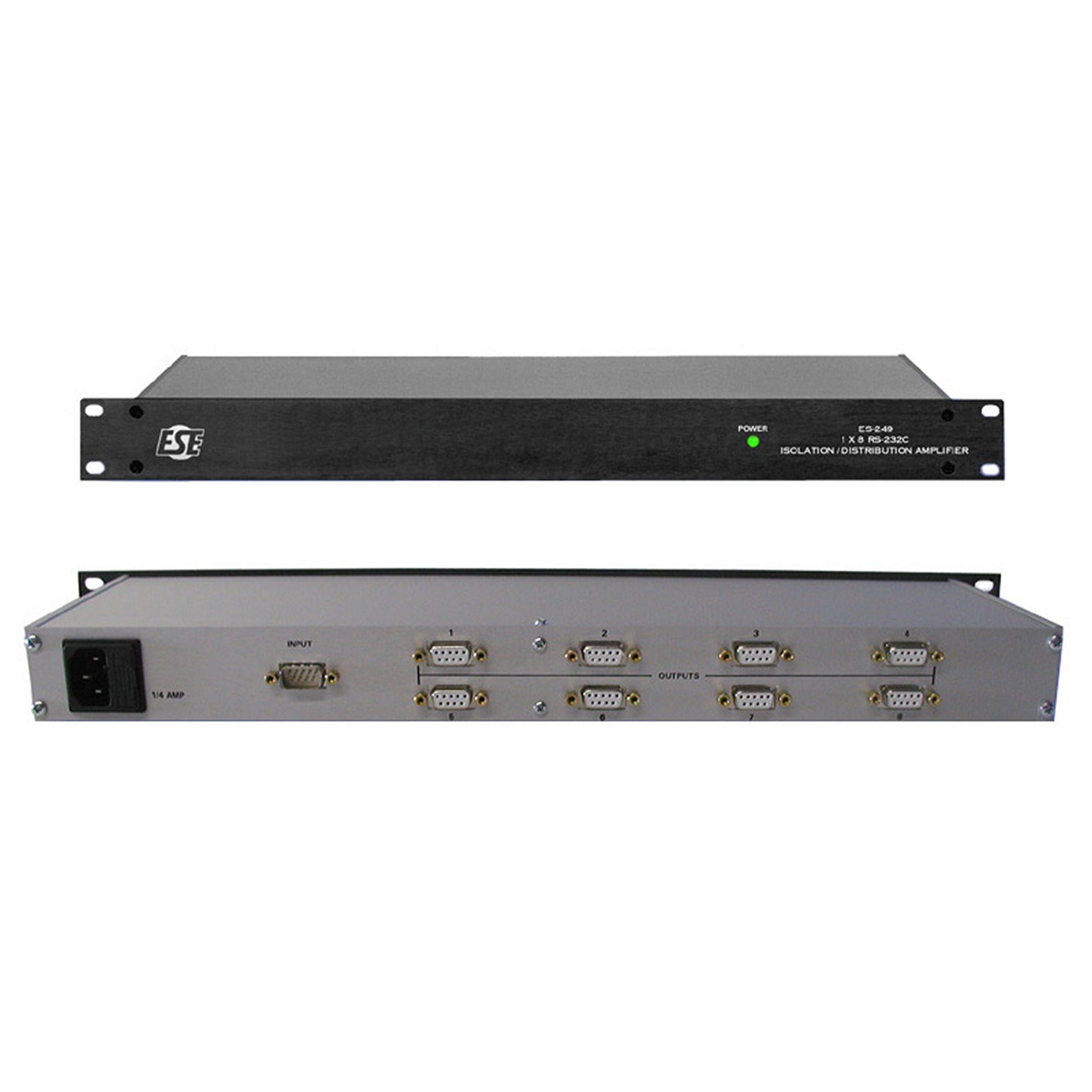

The ESE ES 249 is a top - notch time distribution amplifier. It takes in an RS232C/ASCII signal and can produce up to eight identical copies. With a single male DB - 9 input connector and eight female DB - 9 output connectors on the rear - mounted 9 - pin D - sub, it's very convenient to use. Ideal for distributing ASCII time codes, it features 8 isolated outputs. There's an RxD feed - thru on Channel 1 output for query applications. Standard power supply is 110 - 120 VAC. This amplifier ensures efficient time signal distribution, making it a great choice for relevant systems.

Using the ESE ES 249 is quite simple. First, connect your RS232C/ASCII signal source to the male DB - 9 input connector. Then, you can connect your devices to the eight female DB - 9 output connectors on the back. For query applications, take advantage of the RxD feed - thru on Channel 1 output. When it comes to power, make sure you use a 110 - 120 VAC power supply. As for maintenance, keep it in a clean and dry place. Check the connectors regularly for any signs of damage or loose connections. If you need to run long cables, consider using a different time code and translating it into RS232C/ASCII before it reaches the user devices.
