SmallHD Cine 7 Sony VENICE Camera Monitor Kit

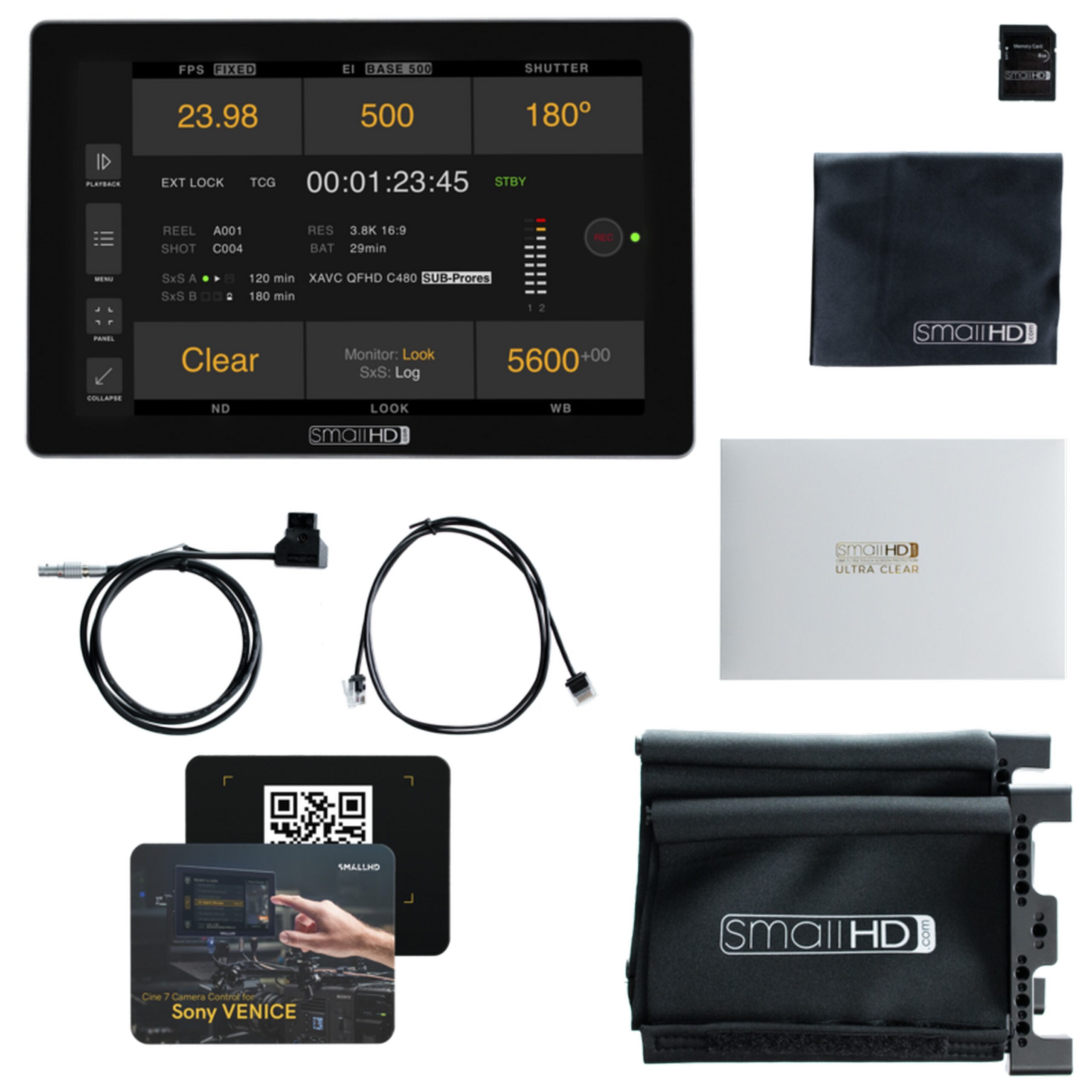

The SmallHD MON-CINE7-VENICE Cine 7 Sony VENICE Camera Monitor Kit is a must - have for professional cinematography. It includes a 7 - inch Cine 7 Monitor, a Sony VENICE Camera Control Software License, and an Ethernet Control Cable. With the software license, you can easily unlock access to the Sony VENICE camera and use intuitive touchscreen tools to adjust internal camera settings. Key features of this monitor include a 7 - inch touchscreen display with a 1920X1200 resolution and 1800 nits of brightness. It covers the DCI - P3 color gamut, providing vivid and accurate colors. The monitor has 1 x 3G - SDI and 1 x HDMI inputs and outputs, and a 1/8” headphone jack for audio. Power can be supplied via a 2 - pin locking port (10V - 34V, 2A DC) or a Sony Battery Bracket. Technical specs show it has a light item weight of 20 oz and a package weight of 32 oz. It's compliant with FCC, IC, CE, and RoHS standards. The monitor operates in temperatures from 30F to 100F and can be stored between 0F to 120F. It has four ¼ - 20 mount points for easy installation and an anodized aluminum chassis for durability.

Using the SmallHD Cine 7 Sony VENICE Camera Monitor Kit is easy. First, connect the control cable to your Sony VENICE camera. Then, power on the monitor using either the 2 - pin locking port or a Sony battery. Once it's on, use the intuitive touchscreen to access the camera's internal settings with the help of the software license. When using the monitor, avoid exposing it to extreme temperatures outside the operating range of 30F to 100F. For storage, keep it in a place where the temperature is between 0F and 120F. To maintain the monitor, clean the touchscreen gently with a soft, dry cloth. Don't use harsh chemicals or abrasive materials. Also, make sure to check the power connections regularly to ensure stable operation. If you need to mount the monitor, use the four ¼ - 20 mount points located on the left, right, bottom, and back of the device.
