Product Description

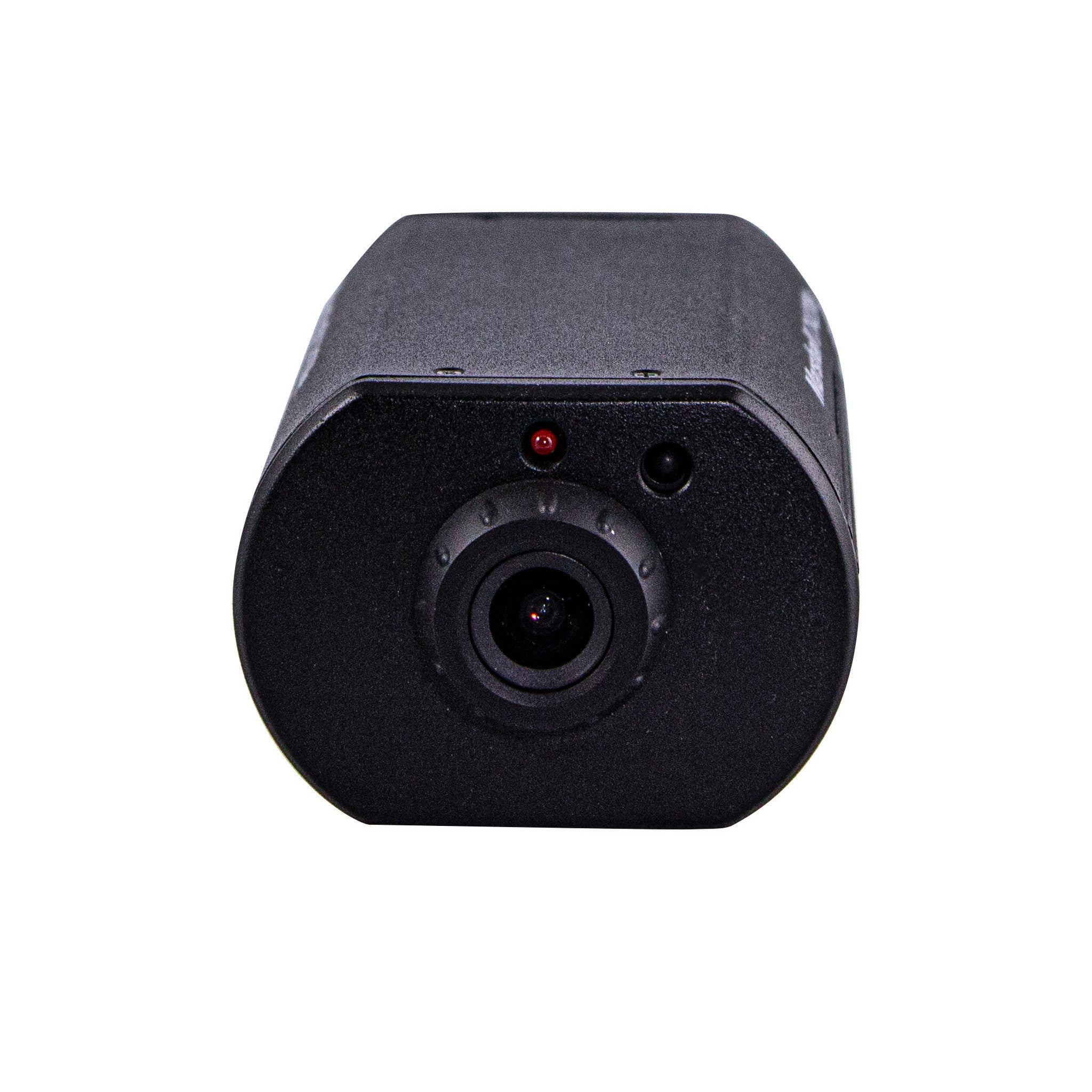

The Marshall CV420Ne is a top - notch compact and durable streaming camera. It features a large 9.2 - megapixel 1/1.8” sensor and an ultra - wide 100 - degree angle - of - view lens with no curvature. This camera comes with a free CVM - 5 monitor mount and can be installed on any 1/4” - 20 camera mount like tripods and fixed mounts.
It offers crystal - clear UHD and HD images. You can use the super - efficient NDI|HX3 stream codec or USB connectivity, along with an HDMI output for traditional workflows.
With its 1/1.8” 4K sensor, it delivers amazing clarity and performance even in tough lighting. It starts with a 100° angle - of - view, giving an ultra - wide perspective without any curvature.
The camera provides flexible workflow options. You can stream content over IP (HEVC) with an HDMI simultaneous output or use USB3.0 with a simultaneous HDMI output. This allows for easy media streaming and collaboration. You can stream live to popular platforms like YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content.
It has ePTZ functionality with digital pan, tilt, and zoom. Using the large Sony 1/1.8” 4K sensor, you can control HD images within the 4K sensor space. You can control it remotely via VMS, GUI, or Visca over IP command from third - party control decks, as well as UVC commands over USB. There's also hardware control from the Marshall VS - PTC - IP controller via IP and local control with the included IR remote.
Built into a compact and durable body with rear I/O protection wings, it's a great tool for various streaming applications. Key features include a Sony 1/1.8” 4K sensor, 9.2 million pixels with large pixel size, a 4.5mm lens with 100° H.AOV (no curvature) and 12x clear digital zoom, and more.
Using the Marshall CV420Ne is quite straightforward. First, install it on a 1/4” - 20 camera mount like a tripod or the included CVM - 5 monitor mount. Then, connect it to your system. You can choose between NDI|HX3, USB, or HDMI connections based on your needs.
If you want to stream live, simply connect to the desired platform like YouTube or Facebook and start streaming. You can use the ePTZ feature to adjust the view. You can control it remotely using a third - party control deck or the included IR remote.
When it comes to audio, you can connect a 3.5mm microphone or use the line - level audio input.
As for maintenance, keep the camera in a clean environment. Make sure the operating temperature is between 0°C and 40°C, and for storage, it should be between - 20°C and 60°C. Regularly check the connections to ensure they are secure. Also, be careful not to place objects closer than 30cm from the camera lens.
