Product Description

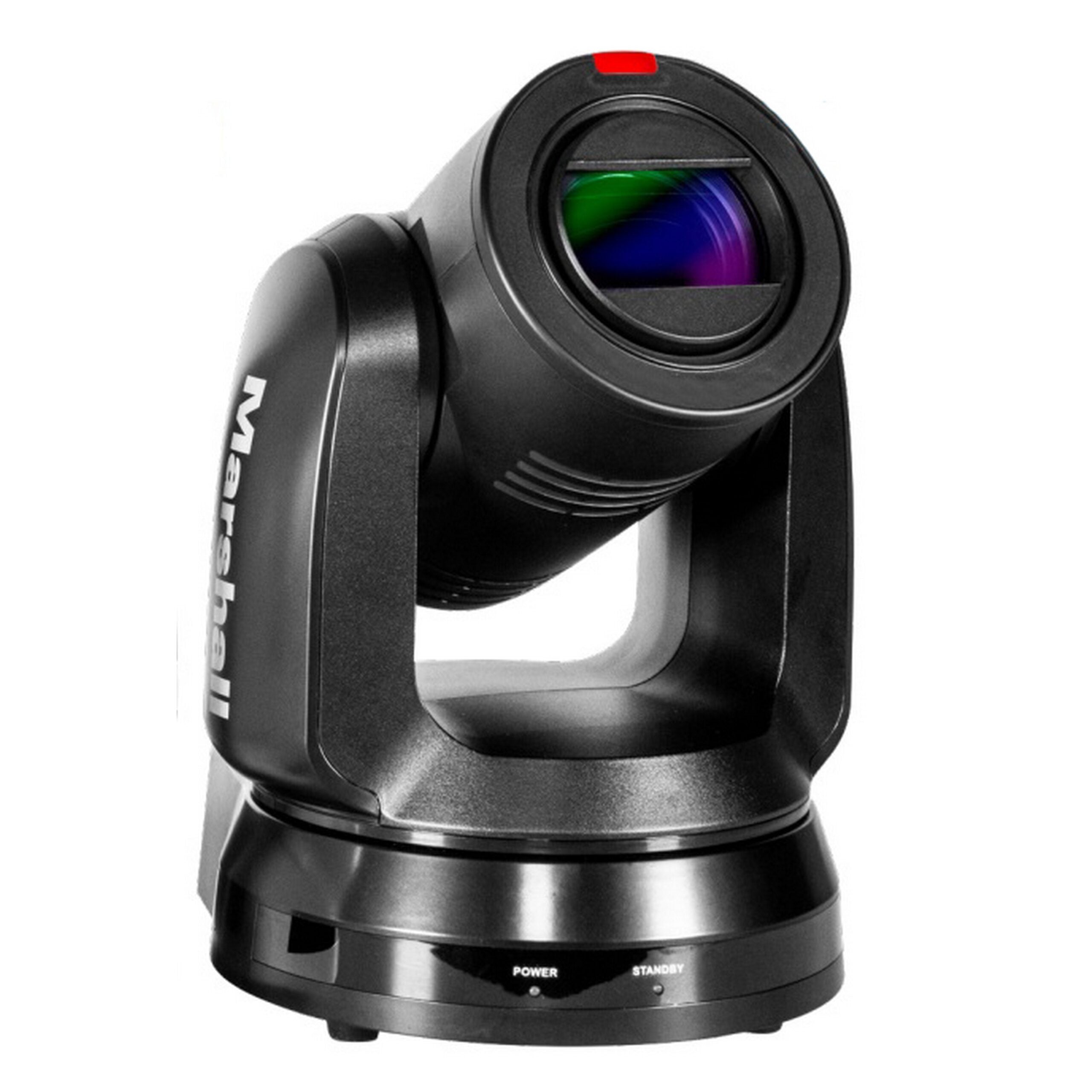

The Marshall CV730-BK is a top - notch black PTZ camera. It comes with an 8.5 - megapixel UHD sensor (1/1.8”) and offers a powerful 30x optical zoom (6.5mm - 202mm) starting at a 65° horizontal angle of view. This camera can simultaneously output in 12GSDI, HDMI, and IP formats, delivering crystal - clear UHD images up to 3840x2160p at 60fps. You can remotely adjust settings like iris, zoom, pan/tilt, white balance, exposure, pedestal, and auto - settings that adapt to environmental changes. It has a wide panning range of 340° and a tilt range of 120°. The outputs support various resolutions and frame rates, including 3840x2160p, 1920x1080p, and 1280x720p at 59.94, 50, 29.97, 25fps. It also features 3.5mm TRS stereo audio over the I/O cable (Mic/Line) and includes a 12V power cable (max 30W).
Using the Marshall CV730 - BK camera is easy. First, connect the 12V power cable that comes with the camera to power it on. Then, use the appropriate cables to connect it to your device for 12GSDI, HDMI, or IP output. You can use the remote control to adjust settings like zoom, pan, tilt, and white balance according to your needs. When using the audio function, connect your microphone or audio source to the 3.5mm TRS stereo audio port. As for maintenance, keep the camera lens clean with a soft, dry cloth. Avoid exposing the camera to extreme temperatures or humidity. If there are any issues with the camera, check the connections first and then refer to the user manual for further troubleshooting.
