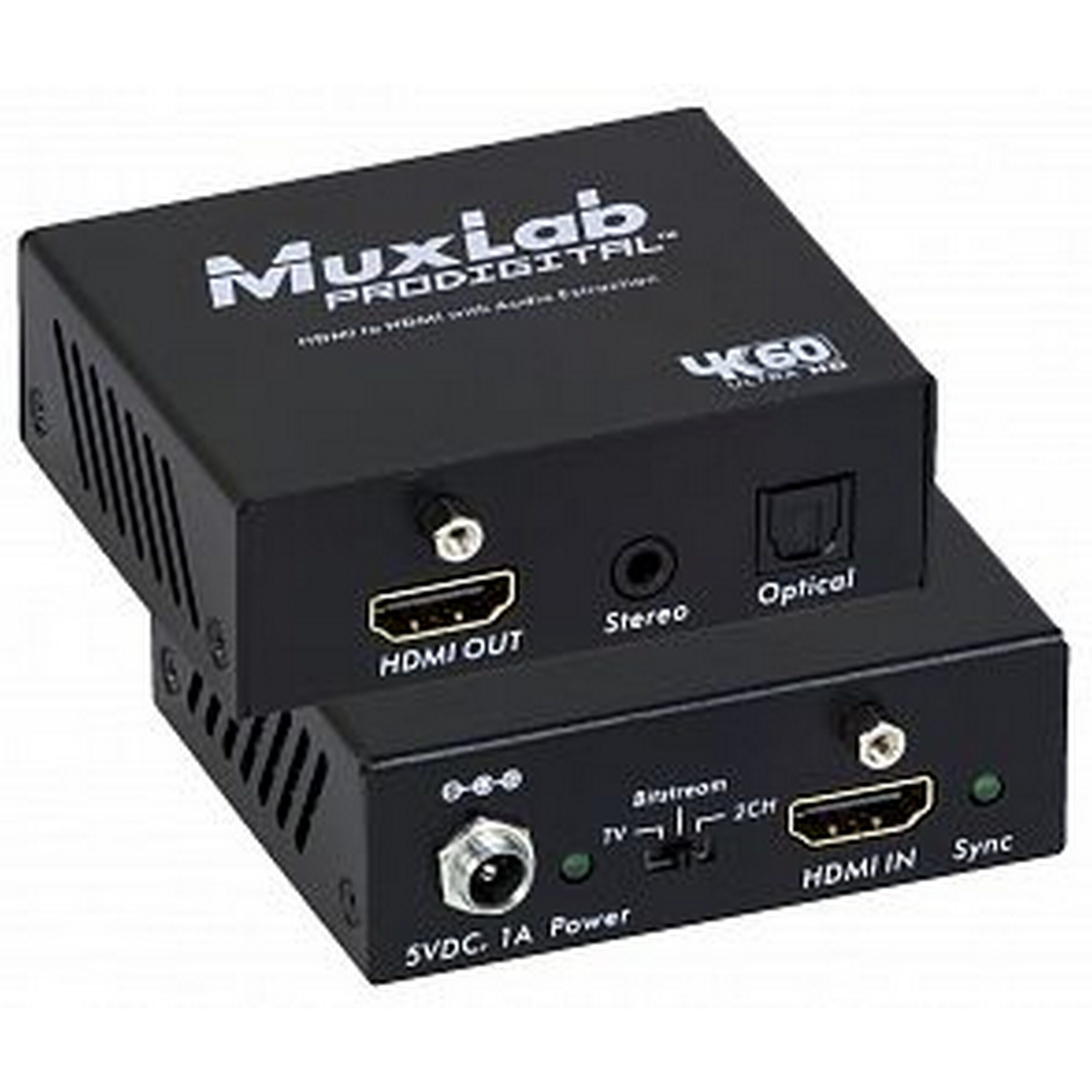

MuxLab 500436 HDMI to HDMI with Audio Extraction, 4K/60

The MuxLab 500436 is a great solution for distributing one HDMI source to an HDMI display. It supports up to 4K video resolution at 60Hz with 8-bit color and HD audio. You can extract LPCM, Dolby Digital, DTS, Dolby Digital Plus* and Atmos** digital audio from the S/PDIF TosLink port and 2CH analog audio from the 3.5mm 2CH audio port. This product is HDCP 2.2 compliant and has LED diagnostics. Key features include repeating and distributing one HDMI 2.0 source, supporting 4K video at 60Hz with 8-bit color depth, and backing various audio formats like LPCM 7.1CH, Dolby Digital, and more. It also extracts multiple digital audio formats via S/PDIF TosLink.

Using the MuxLab 500436 is easy. First, connect your HDMI source to the device and then connect the device to your HDMI display. You can then connect your audio devices to the S/PDIF TosLink port or the 3.5mm 2CH audio port to extract the audio. When using it, make sure your source and display support the 4K/60 resolution. As for maintenance, keep the device in a cool and dry place. Wipe it with a soft, dry cloth if it gets dirty. Avoid exposing it to extreme temperatures or humidity, which could damage the internal components.
