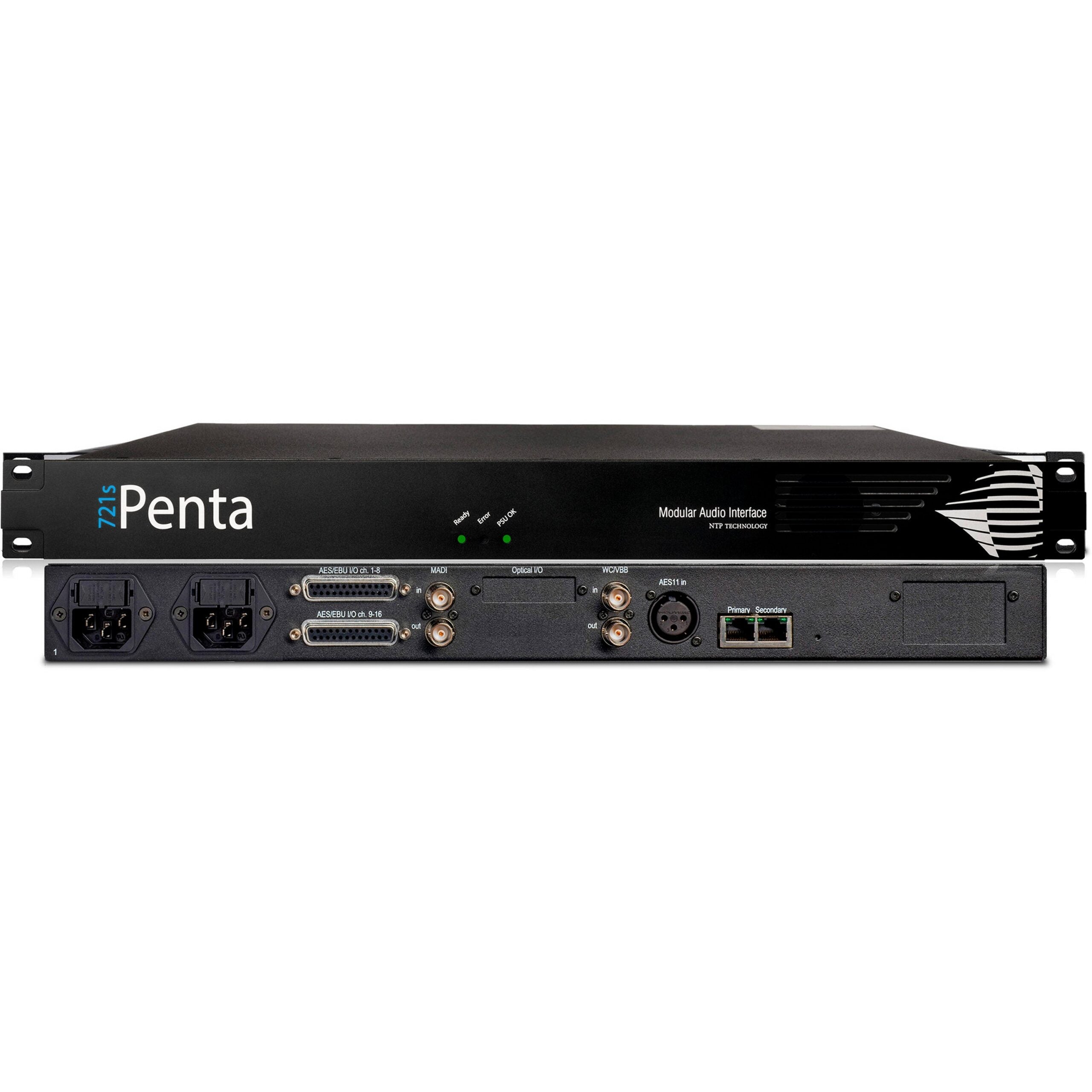

Penta 721S-SDI Dual SDI to Dante Converter

The NTP PENTA 721s-SDI is a top - notch Dual SDI embedder/de - embedder. It comes with an onboard Sample rate Converter, MADI, AES, and Dante. This device offers a highly versatile and flexible solution for distributing embedded audio signals via AES/EBU and MADI, and routing through IP Gigabit Ethernet and optical fiber networks. It's a compact 1U digital audio interface with two sets of 3G SDI input/output ports, Pro|Mon, and dual power supply. Each port can handle the embedding and de - embedding of 16 audio channels, and you can enable sample rate conversion if needed. All embedded channels can be routed to and from any digital interface on the unit. It features eight channel AES/EBU input/output channels, MADI and Dante IP Audio Ethernet in/outs, and an optional mini - module slot with dual SFP MADI optical in/out connection. **Key Features** - Crestron Drivers for routing and volume control. - 64 MADI / BNC support. - 2 IP Audio RJ45 Ethernet Ports with a standard DANTE Brooklyn 2 card. - 8 AES/EBU I/O and 1 - 3 MADI I/O. - Word clock and VBB in and out. - AES11 Sync Input (clock). - 512 x 1512 routing capabilities. - IP audio L3 Ethernet I/O powered by Dante. - TCP/IP control via NTP Router Control System and standalone control apps for PC, with single or dual power supply. - 1 Card Slot to choose from seven Penta Option Cards. - D - slot mini - module slot for optional ST optical MADI connection or dual SFP MADI optical in/out (128 MADI). **Technical Specifications** - Fitted with a 64 Dante/AES67 Brooklyn 2 module. - Expansion slot with a Dual SDI Embedder/De - Embedder. - Dual MADI Option Slot.

Using the Penta 721S - SDI Dual SDI to Dante Converter is straightforward. First, connect your SDI sources to the 3G SDI input ports. You can then configure the audio embedding or de - embedding for up to 16 audio channels per port. If you need to change the sample rate, you can easily enable the sample rate conversion feature. For routing the audio signals, use the various digital interfaces like AES/EBU, MADI, and Dante IP Audio Ethernet. When it comes to power, you can choose either single or dual power supply based on your needs. To control the device, you can use the TCP/IP control via the NTP Router Control System or standalone control applications for PC. Here are some important notes. Make sure your network settings are correct when using the IP - based interfaces. Also, handle the optional cards and mini - modules with care when installing or removing them. For maintenance, keep the device in a clean and dry environment. Regularly check the connections to ensure they are secure. If you have any issues, refer to the user manual or contact our support team.
