Product Description

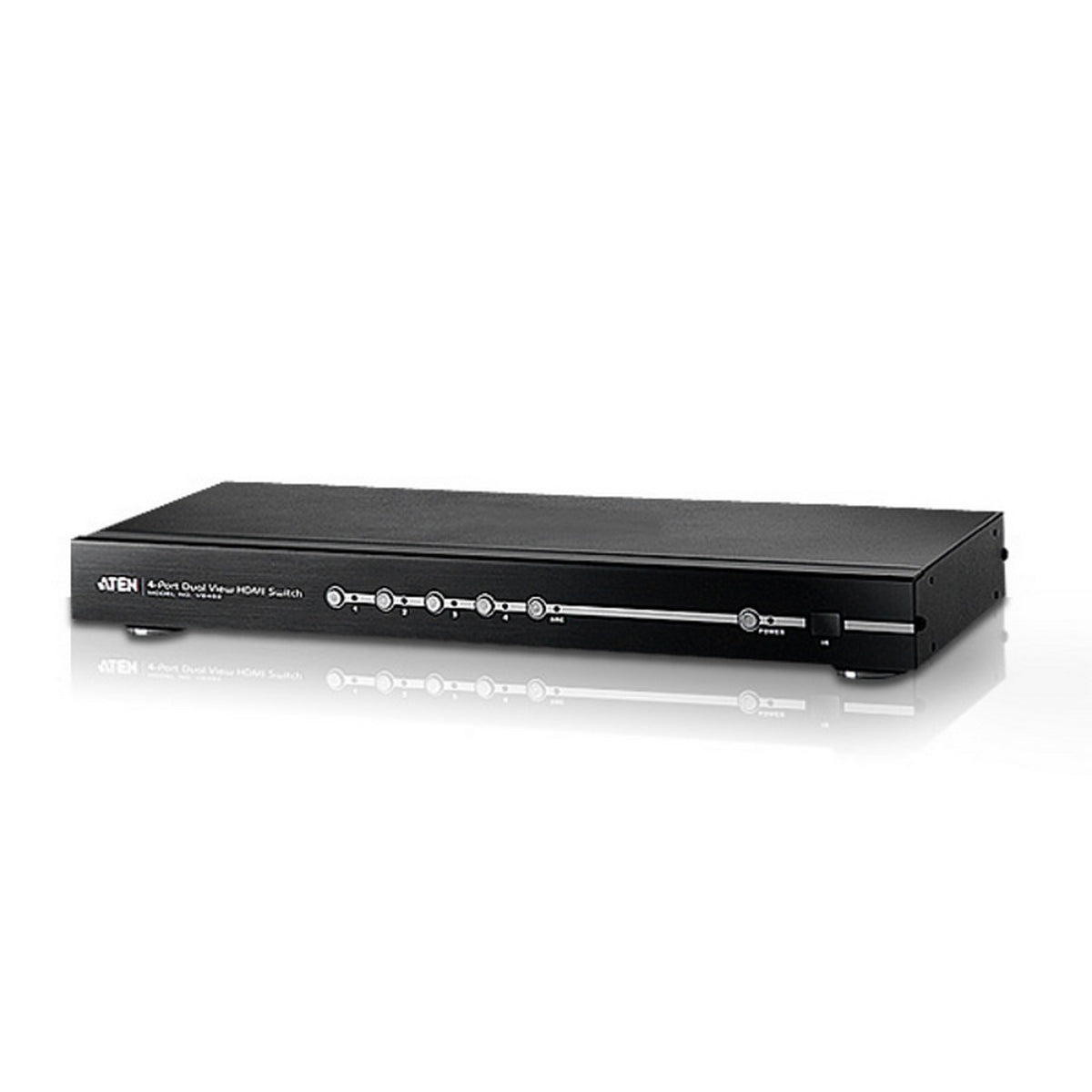

As more HDMI devices flood the Home Theater market, accessing different HDMI A/V sources simultaneously is crucial. The ATEN VS482 Four - Port Dual - View HDMI Switch is an affordable solution for your home theater. It lets you effortlessly switch between up to four HDMI A/V sources connected to two HDMI displays. The VS482 supports four HDMI video inputs and two HDMI outputs, ideal for HDTV or audio/video receiver applications. It adheres to HDMI standards, supports 3D content and Audio Return Channel (ARC). With instant switching and OSD display controls for video, audio, system config, and info, it's user - friendly. Key features include: connecting up to four HDMI A/V sources to two displays, HDCP compatibility, support for 3D, ARC, and Deep Color, Dolby True HD and DTS HD Master Audio support, ARC function to send audio via an HDMI cable, OSD for system settings and info, instant switching via front panel or RS - 232, EDID Expert technology for different configurations, easy source port viewing, support for high - quality HDTV resolutions up to WUXGA, a built - in bi - directional RS - 232 for high - end control, extra audio output options, IR control signal extension, and rack - mountability. The VS482 AP and GUI operation instructions are available for download on the ATEN website (www.aten.com). Technical specs: 2 display connections, 4 HDMI Type A Female (Black) inputs, 2 HDMI Type A Female (Black) outputs, optical, coaxial, and stereo audio outputs, RS - 232, power, and IR extension ports. It has port switches, ARC selection, a power button, and LEDs for status. It supports various HDTV resolutions, consumes DC 5.3V, 6.95 W, operates in 0 - 50°C, stores in - 20 - 60°C, with 0 - 80% RH non - condensing. It has a metal housing, weighs 2.16 kg, and measures 43.72 x 15.86 x 4.40 cm.
Using the ATEN VS482 is quite simple. First, connect up to four HDMI A/V sources to the HDMI In ports on the device. Then, connect two HDMI displays to the HDMI Out ports. If you want to use the Audio Return Channel, connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver. You can switch between different HDMI input sources either by using the front panel pushbuttons or through the RS - 232 serial control port. To extend the reach of the IR controller, you can add an IR receiver unit. When it comes to maintenance, keep the device in a clean and dry place. The operating temperature should be between 0 - 50°C, and the storage temperature between - 20 - 60°C. Avoid exposing it to high humidity (above 80% RH) as it can cause damage. You can download the VS482 AP and GUI operation instructions from the ATEN website (www.aten.com) for more detailed setup and configuration guidance.
