Product Description

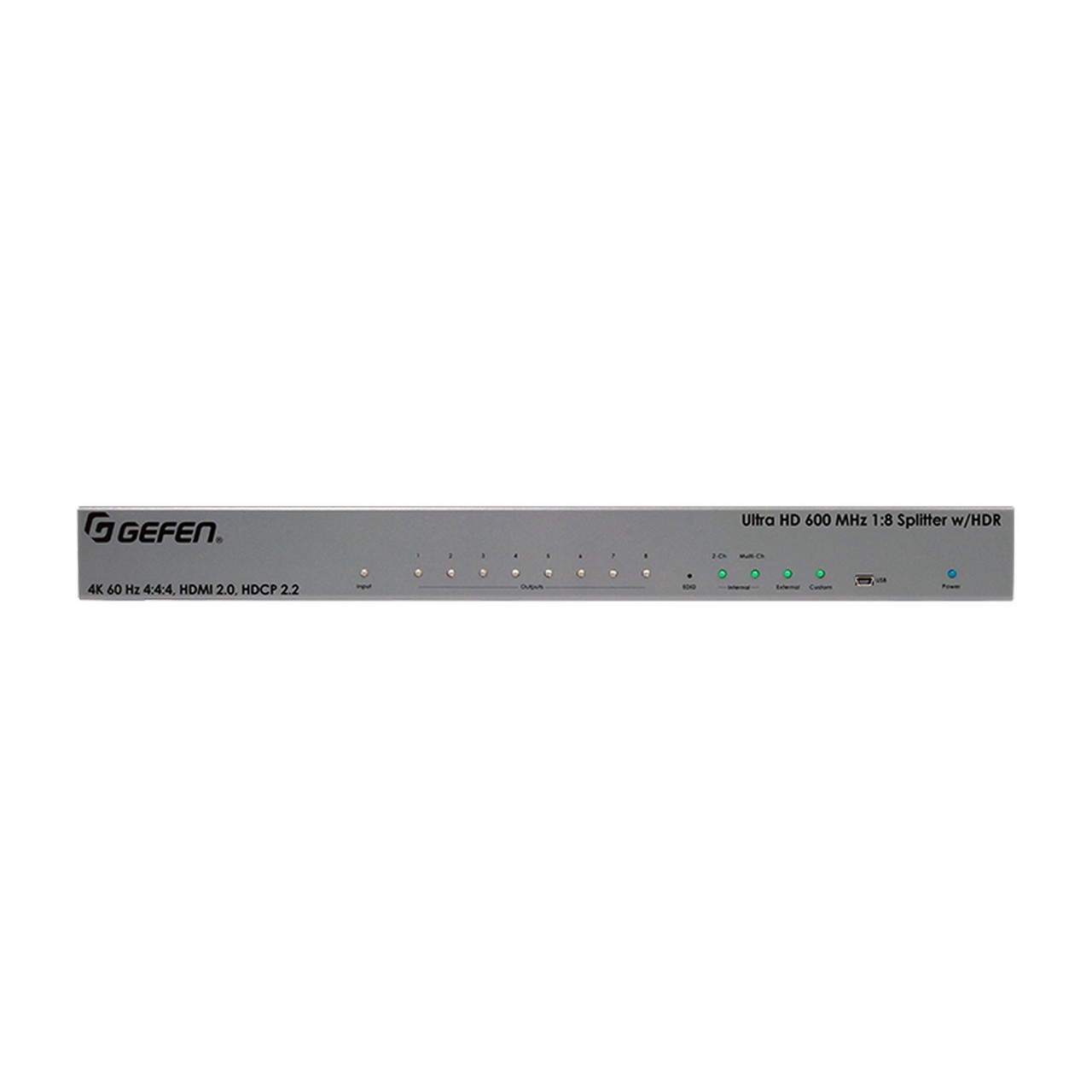

The Gefen EXT - UHD600 - 18 is a top - notch 4K HDMI HDR 1x8 splitter with a 600 MHz pixel clock. It's a game - changer for distributing 4K Ultra High Definition media. It supports the latest HDMI 2.0 standard, reaching 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR support. This means you get stunning Ultra HD and DCI/Cinema pictures up to 4096 x 2160 pixels at 60 frames per second without color subsampling, just as brilliant as what the camera captured. It bridges the gap between past, present, and future digital media. Supporting both HDCP 2.2 and the legacy HDCP 1.4, it meets the signal routing needs of both old and new components in commercial and residential AV systems. It also supports high - performance multichannel digital audio like 7.1 channels of LPCM and HBR formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS - HD Master Audio. Specifically designed for large - scale video distribution and signage, it supports multiple layers of cascading for flawless performance across hundreds of displays. The exclusive Long Reach Power (LRP) feature provides 5V at 500 mA on HDMI outputs 1 and 2, powering select extender devices through their HDMI input. It works seamlessly with Gefen’s Syner - G software suite for easy EDID and HDCP management, status monitoring, and firmware updates. The 1U tall, rack - mountable enclosure can also be shelf - placed and accommodates locking HDMI cables for secure connections. Key features include simultaneous display on up to eight Ultra HD displays, support for various resolutions, 3DTV and Lip Sync pass - through, and much more.
Using the Gefen EXT - UHD600 - 18 splitter is easy. First, connect your HDMI source to the single input connector. Then, connect up to eight HDMI displays to the output connectors. Make sure to use the locking HDMI cables for a secure connection. If you want to power select extender devices, take advantage of the Long Reach Power (LRP) feature on HDMI outputs 1 and 2. For EDID and HDCP management, status monitoring, and firmware updates, use the Gefen Syner - G software via the USB port. When it comes to placement, you can either mount it on a rack using the included rack ears or place it on a shelf. Remember to keep the device in an environment with an operating temperature between +32 to +122 °F (0 to +50 °C) and an operating humidity of 5% to 90% RH, non - condensing. For storage, the temperature range is -4 to +185 °F (-20 to +85 °C) and the humidity is 0% to 95% RH, non - condensing. To maintain the device, keep it clean and free from dust. If you have any issues, refer to the quick - start guide or contact customer support.
