Product Description

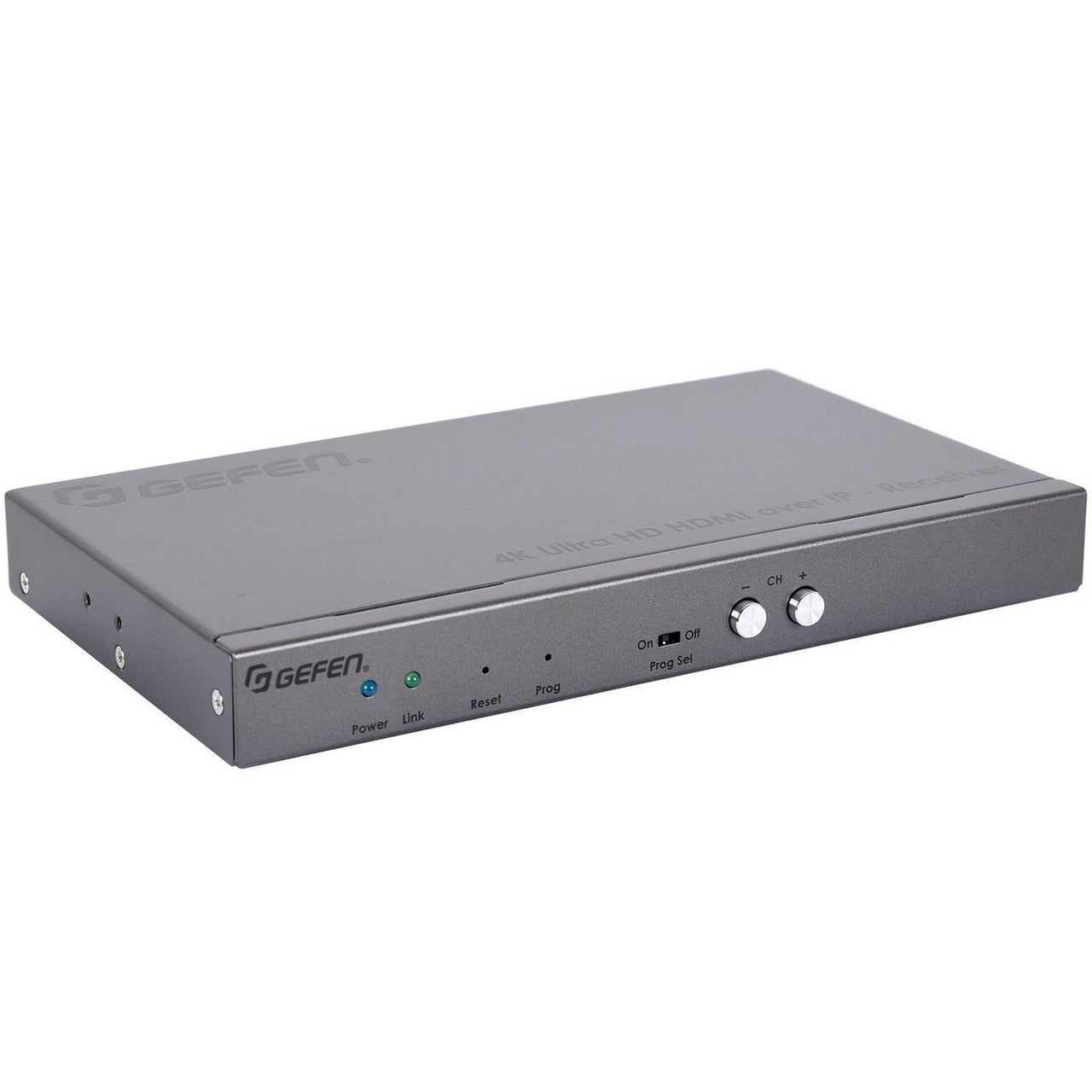

The Gefen EXT-UHD-LANS-RX 4K UHD HDMI Over IP Receiver is a top - notch solution for extending and distributing 4K HDMI with HDR, RS - 232, IR, and audio over a local area network. It continues Gefen's tradition of high - performance, scalable, expandable, and secure AV routing. The Gen 2.0 KVM products bring enhanced performance, including support for 4K Ultra HD with HDR, built - in scalers, and video - wall control. It also offers independent routing of video, RS - 232, IR, and audio, and is backward - compatible with first - generation products. With a maximum input resolution of 4K 60 Hz 4:2:0 and a maximum output resolution of 4K 30 Hz 4:4:4, it supports HDCP 2.2 and 1.4, and can handle 7.1 channels of HBR lossless and LPCM digital audio. The receiver has a built - in scaler for image optimization and a powerful video wall controller for flexible screen configurations up to 16x16. It also features an audio de - embedder to enhance presentation impact. Key features include extending HDMI and other signals over a Gigabit LAN, supporting various audio formats, and having a range of useful control and connectivity options.
Using the Gefen EXT - UHD - LANS - RX 4K UHD HDMI Over IP Receiver is easy. First, connect the sender to your source device using the appropriate HDMI and other cables as specified in the technical details. Then, connect the receiver to your display. Make sure your network switch supports the required bandwidth and PoE if you're using it. When using the device, be aware that the input and output resolutions have limits, so choose your source content accordingly. For maintenance, keep the device in a clean and cool environment. You can update the firmware via the EXT - CU - LAN controller or the built - in web server interface to ensure it runs smoothly. If you need to reset the device, use the reset button carefully. And always use the locking connectors to prevent accidental disconnections.
