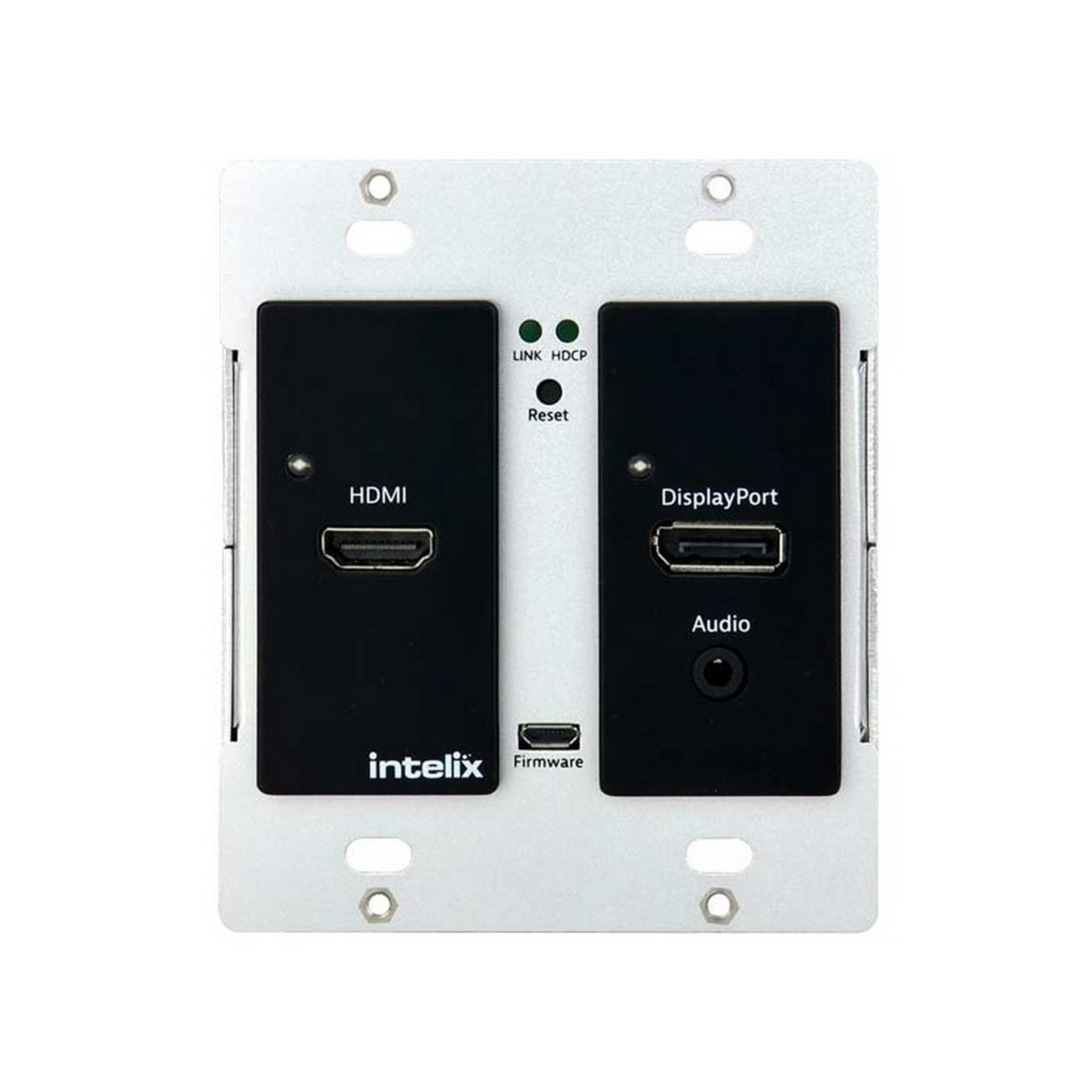

Intelix AS-1H1DP-WP-B HDMI/DisplayPort Auto-Switching Wallplate with HDBaseT Output

The Intelix AS-1H1DP-WP-B is an outstanding auto-switching wallplate with HDBaseT output, capable of transmitting up to 70m. It's a perfect fit for boardrooms, educational institutions, and the hospitality industry. This wallplate comes with HDMI and DisplayPort inputs along with 3.5mm stereo input. The HDBaseT output can reach a maximum distance of 70m. It automatically switches to the active video input. You can control the device via RS232, auto mode, or dry contact closure. It supports PoH (Power over HDBaseT) or 12V DC local power. There's also display control software that uses RS232 commands to turn the TV or projector on and off automatically. Plus, it has a customizable power management system for when it's not in use.

Using the Intelix AS-1H1DP-WP-B is easy. First, connect your HDMI or DisplayPort devices to the corresponding inputs on the wallplate, along with the 3.5mm stereo audio if needed. Then, connect the HDBaseT output to your display device within the 70m range. You can choose to power it via PoH or 12V DC local power. To control the device, you can use RS232, auto mode, or dry contact closure. The display control software can be used to turn your TV or projector on and off. When not using the device, the customizable power management system can help save energy. Just make sure to keep the wallplate in a dry and clean place. Avoid exposing it to extreme temperatures or humidity. If you need to clean it, use a soft, dry cloth. And always follow the safety instructions in the user manual.
