Product Description

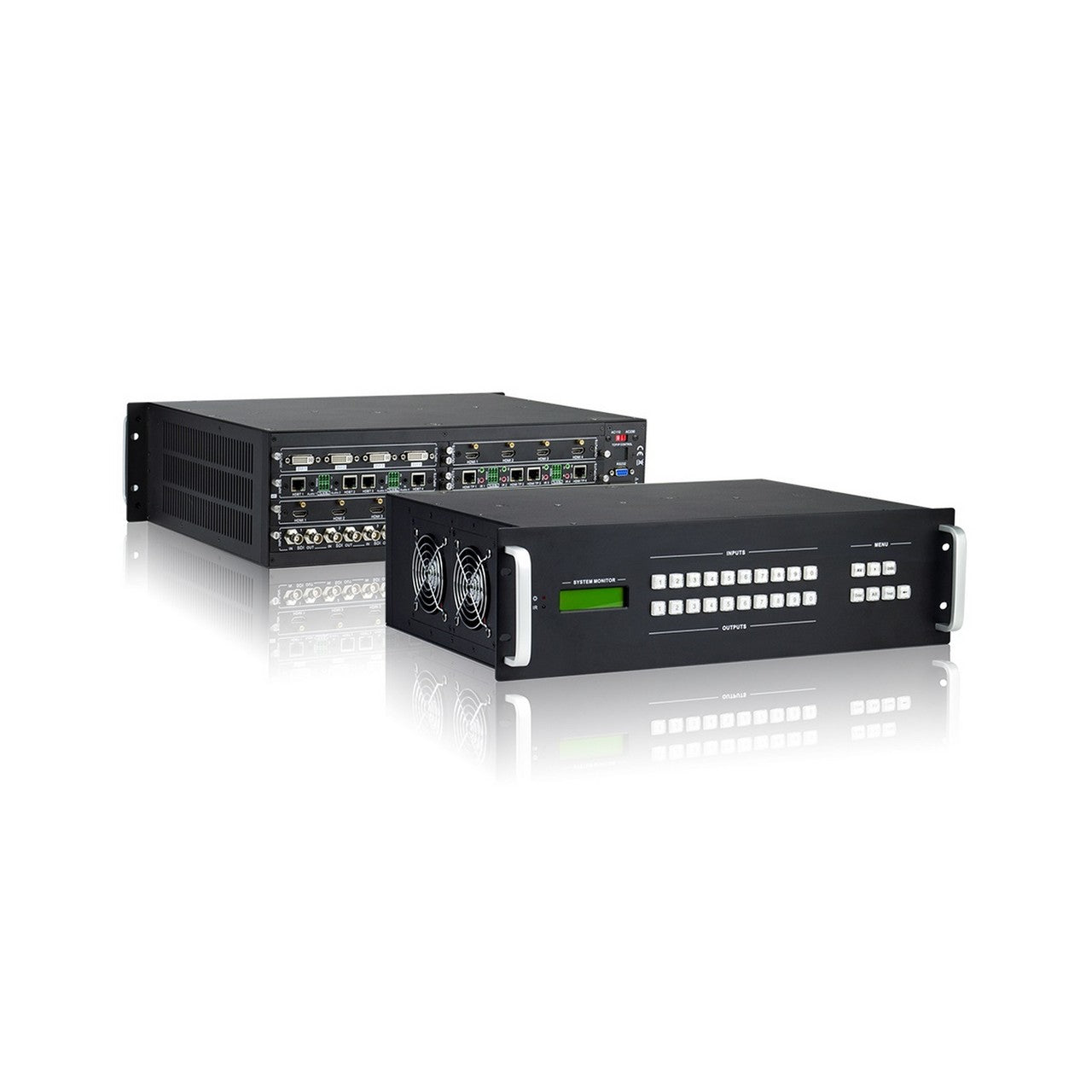

The KanexPro HDMMX1616 - 4K is an outstanding 16 - input by 16 - output modular matrix switcher. It comes with four input slots and four output slots, and each modular input or output card can support up to four device connections. You can control it via the front - panel buttons, or use IR, RS232, or TCP/IP connections. This switcher offers a customizable 16x16 modular design for various AV connections. It supports 4K UHD resolution through HDMI and HDBaseT, and can handle connections like VGA, SDI, DVI, HDMI, HDBaseT, and Fiber optic. With a high - bandwidth of up to 10.2 Gbps, it ensures smooth data transfer. You can add I/O modular cards according to your expandability needs. It features cross - point ultra - switching, advanced HDCP and EDID management, and a hot - swappable design. The clear illuminated buttons make operation easy. It also has 10 global presets, a front - panel LCD for switching and status display, and a front - panel security lock. It comes in a 3 RU rack - mountable aluminum enclosure and has a dual - internal power supply that works with 100 - 240 Volt AC, 50/60Hz.
Using the KanexPro HDMMX1616 - 4K is easy. First, connect your devices to the input and output cards according to your needs. You can use the front - panel buttons to control the switcher right away. If you prefer, you can also use an IR remote, or connect it via RS232 or TCP/IP. When adding or changing I/O modular cards, make sure the power is off to avoid any damage. This is a hot - swappable design, but it's still a good safety measure. For maintenance, keep the switcher in a cool, dry place. Clean the front panel with a soft, dry cloth. Check the power supply regularly to make sure it's working properly. The power consumption is 135 watts when fully populated, so make sure your power source can handle it. And remember, the switcher has ESD protection of 15kV, but still be careful when handling it to avoid any electrostatic damage.
