Product Description

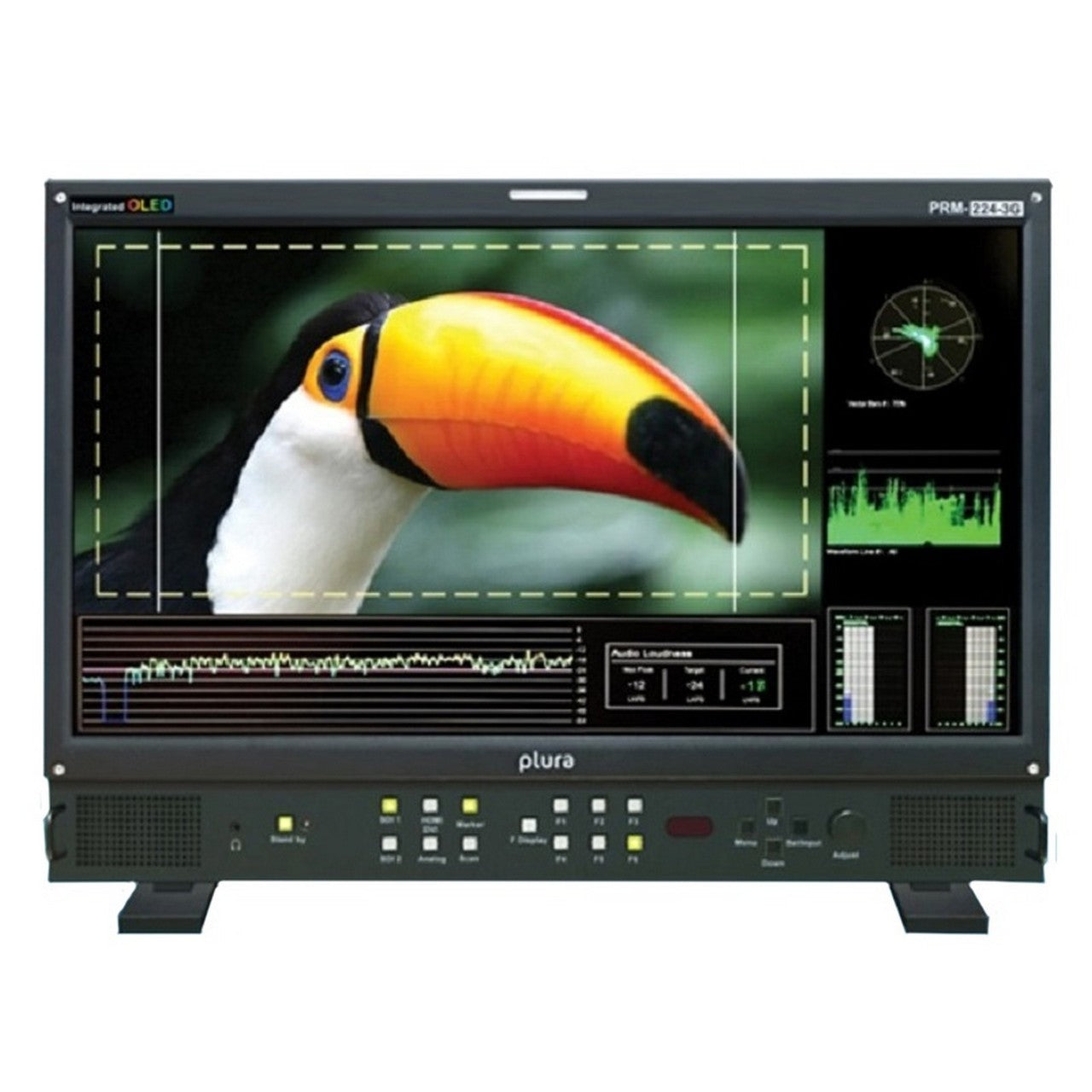

The Plura PRM-224-3G-O is a remarkable 24.5-inch OLED video panel. Part of the new PRM-3G series, it features an elegant slim design and an A-grade 10-bit OLED panel. It offers outstanding black performance, a super-fast response time for blur-free video, a high 5000:1 contrast ratio, a wide viewing angle, accurate color reproduction, and consistent picture quality for all HD and SD monitoring needs.
Key Features:
- LKFS audio measurement for digital loudness metering.
- 10-bit color depth in a 24.5-inch integrated OLED panel, 3D LUT, and dual display modes.
- 2 auto-detect HD-SDI inputs with active loops.
- 3 composite inputs with active loops, 1 DVI/VGA, and 1 HDMI input.
- Plura Intelligent Connection for alignment and calibration.
- 3D LUT and a wide range of gamma selection.
- Closed caption support (608/708), Teletext 801, and Subtitle OP-47.
- Ethernet control and advanced audio metering.
- RGB 12-bit digital signal processing.
- Internal monitor display.
- 5000:1 contrast ratio.
- Pixel to pixel mode, tally, and DC operation.
- Display LTC and DVITC time code with line select.
- Internal pattern generator and wall control system.
- Built-in stereo speaker and 16-channel audio metering display.
- Analog and embedded audio input, digital audio decoding.
- Adjustable color temperature from 11000K to 3200K.
- Various and user-defined markers display, safe area in HD and SD.
- Picture and Picture (PaP), Picture in Picture (PiP) display and blend.
- Simultaneous display of advanced waveform and vector scope with line select.
- Programmable 6 user front pushbutton controls, GPI, and RS232 remote control.
- Options include battery mount, rack mount, wall mount, and carry case.
Technical Specifications:
- Inputs: Multiple types including HD/SD-SDI, analog, S-VIDEO, PC-RGB, DVI, and HDMI.
- Outputs: SDI and analog loop outputs.
- Input levels and digital input formats are clearly defined.
- Audio: Input and output options with multiple channels.
- I/O: Remote and update interfaces.
- LCD: 24.5 inches, 1920 X 1080 resolution, wide viewing angle, etc.
- General: Power requirements, consumption, temperature, humidity, weight, and dimensions are specified.
Using the Plura PRM-224-3G-O video panel is easy. First, connect your video sources to the appropriate inputs like HD/SD-SDI, HDMI, or VGA. You can choose the input you want through the front pushbutton controls or the remote control. For audio, connect your audio devices to the audio inputs. The panel will automatically detect the input format and adjust the display.
When using it, make sure the operating temperature is between 0°C and 35°C and the humidity is between 20% and 80%. Avoid exposing the panel to direct sunlight or extreme temperatures. Don't touch the screen with sharp objects to prevent scratches.
For maintenance, keep the panel clean by using a soft, dry cloth to wipe the screen. You can also use a mild cleaning solution if needed, but make sure to follow the instructions. Check the connections regularly to ensure they are secure. If you encounter any problems, refer to the user manual or contact customer support.
