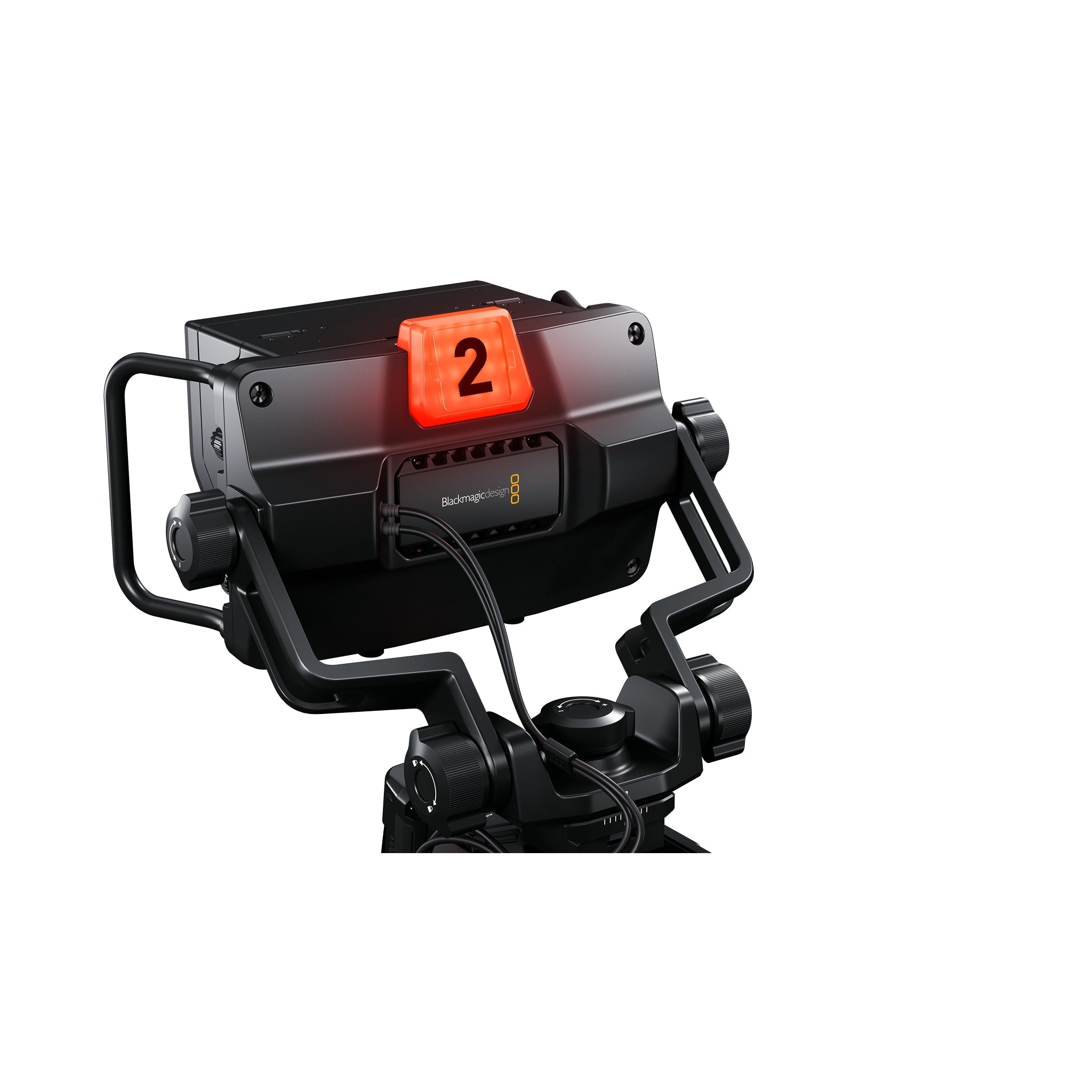

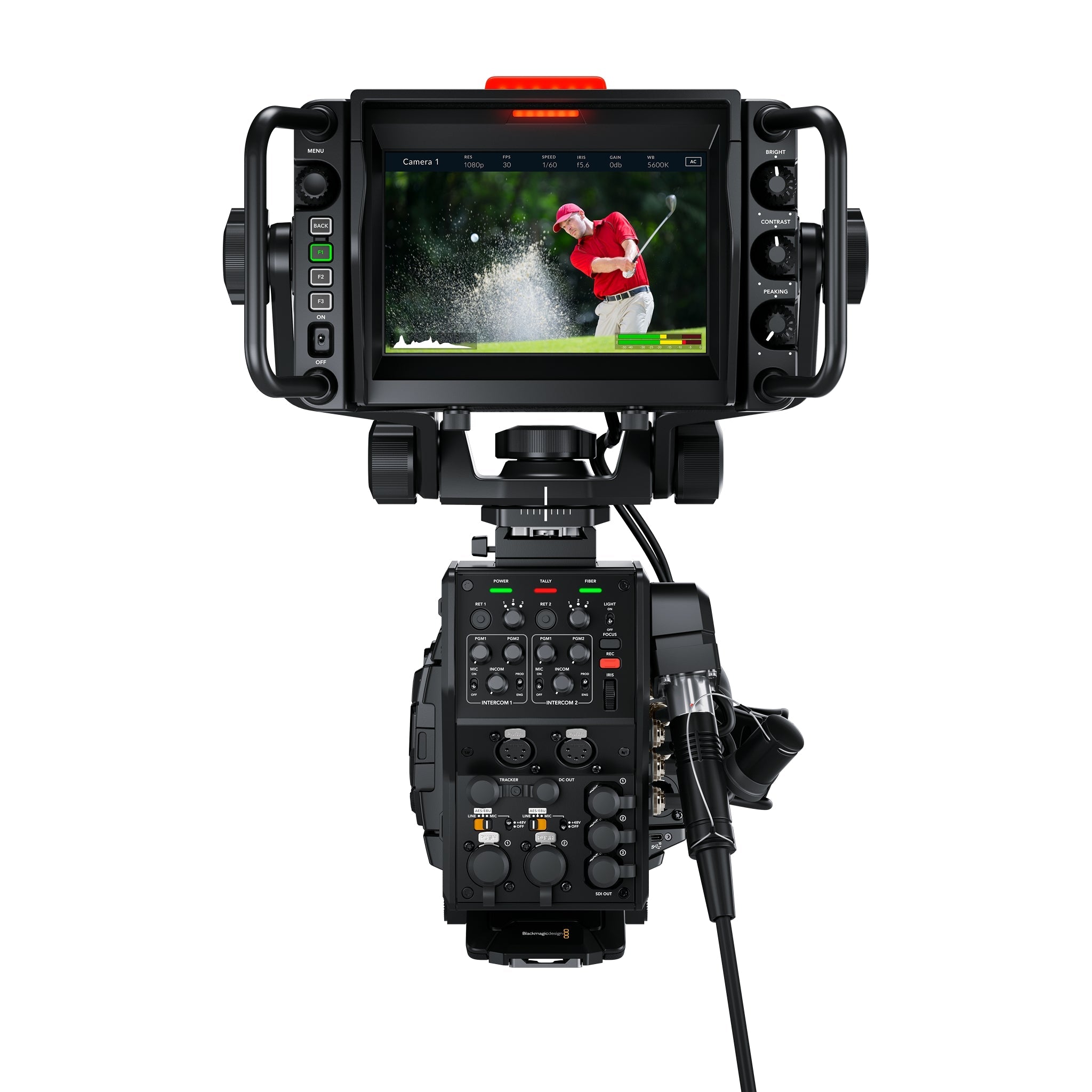

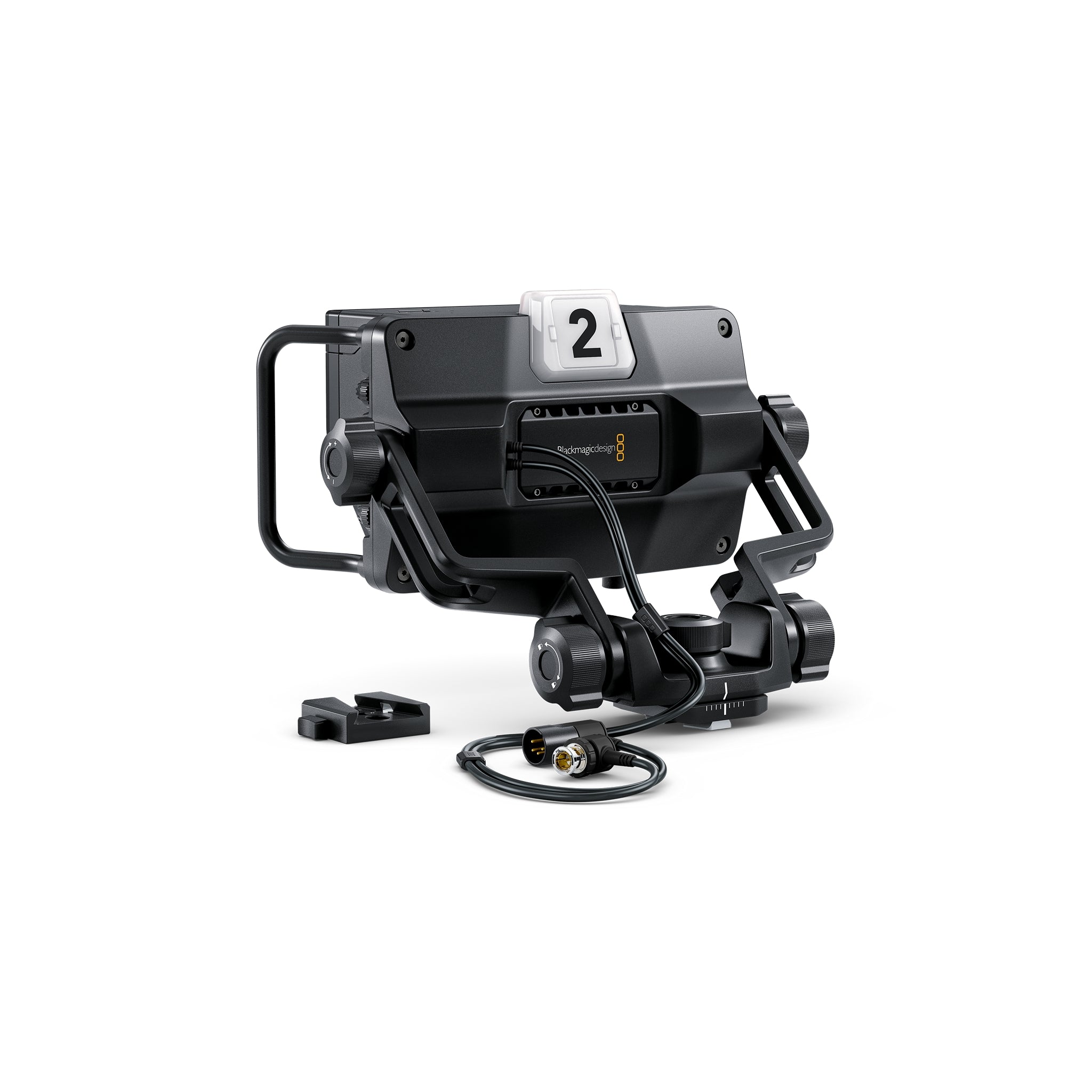

The Blackmagic Design URSA Studio Viewfinder G2 is the ultimate tool for live production. Whether you're shooting at a busy event or in a studio, it has all the features you need for great camera operation. Its 7-inch screen shows 1920 x 1200 resolution visuals clearly, and comes with a detachable sunshade for bright conditions. The viewfinder is flexible and sturdy, with large handles and an articulated pivot mount for easy movement. You can make quick adjustments with large rotary control dials and customizable function buttons. It's easy to integrate with your URSA Mini camera using the included V-Lock plate, no extra cables or power supplies needed. This viewfinder also has great technical capabilities like 3G-SDI compliance and support for various SDI video standards. You can easily adjust it with dials, knobs, and buttons, and the built-in handles and pivot give you lots of positioning options. Key features include a 7-inch 1920 x 1200 resolution screen, detachable sunshade, large handles and pivot mount, V-Lock plate, large rotary dials and customizable buttons, quick release V-lock bracket, support for SDI video standards, and on-screen meters and status info. Specifications cover SDI video input, power input, screen dimensions and type, brightness, computer interface, SDI compliance, video sampling, color precision, and color space. The package includes the viewfinder, detachable sunshade, quick release V-lock bracket, 4 pin XLR power cable, and user manual.

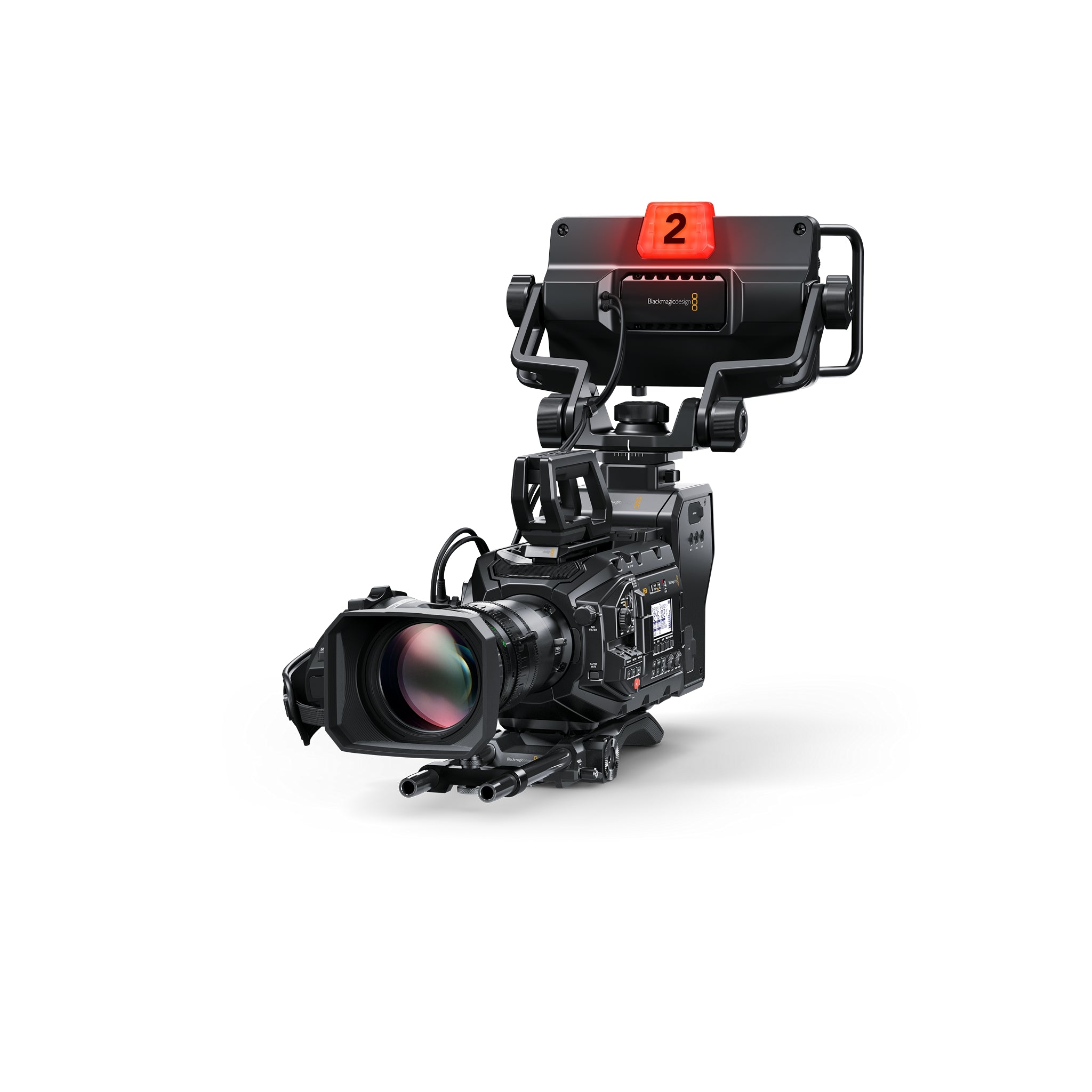

Using the Blackmagic Design URSA Studio Viewfinder G2 is a breeze. First, connect it to your URSA Mini camera using the V-Lock plate. This plate attaches directly to the SDI monitor and power output of your camera, so you don't need any extra cables or power supplies. Once it's connected, power it on using the 4 pin XLR power cable. You can then start adjusting the settings. Use the large rotary control dials and customizable function buttons to make quick changes to things like focus, exposure, and zoom. The 7-inch screen gives you a clear view of what you're shooting, and the detachable sunshade can be added in bright conditions to improve visibility. When positioning the viewfinder, use the large handles and the articulated pivot mount. They allow you to move the viewfinder around easily to get the best angle. As for maintenance, keep the screen clean with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials. Make sure to store the viewfinder in a cool, dry place when not in use. Also, check the cables regularly for any signs of damage. If you're using it in a dusty environment, try to keep it protected as much as possible to prevent dust from getting inside the device.
