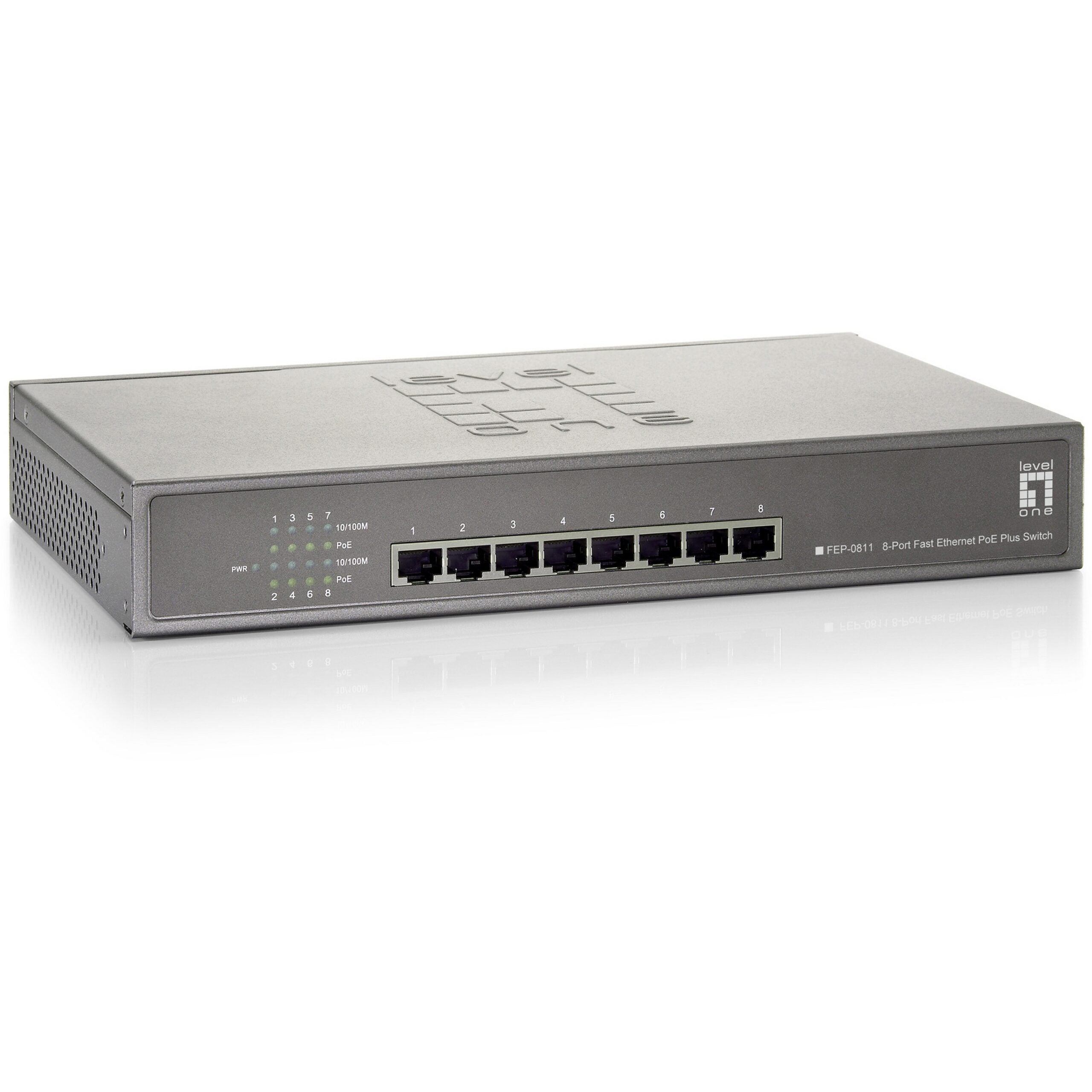

LevelOne FEP-0811 8-Port Fast Ethernet PoE Switch

The LevelOne FEP-0811 is an unmanaged 8-port Fast Ethernet PoE switch. It's IEEE 802.3af/at compliant, delivering both power and data through a single Ethernet cable to any PoE device. With a total power budget of 120/250W or up to 30W per port, it's perfect for desktop use. It also comes with a 19-inch rack-mount option for convenient and flexible installation. Ideal for small to medium businesses seeking an affordable PoE infrastructure solution. Key features include IEEE 802.3af/at PoE compliance for easy deployment, auto-detection and protection of non-standard PoE devices, 10/100Mbps speed with full/half-duplex and auto-negotiation, an 11-inch metal housing with a 19-inch rackmount kit, and IEEE 802.3x Flow Control for reliable data transmission. Technical specifications cover a wide range of standards, buffer memory, port details, power input, consumption, and more.

Using the LevelOne FEP-0811 switch is easy. First, choose a suitable location, either on a desktop or mount it on a 19-inch rack using the included kit. Connect the power cord to a 100 - 240V AC power source. Then, connect your PoE devices to the 8 RJ45 PoE ports. The switch will auto - detect and provide power and data according to the device's needs. Remember to keep the operating temperature between 0°C and 45°C and the humidity between 10% and 90% (non - condensing). Avoid placing it in areas with extreme temperatures or high humidity. For maintenance, keep the switch clean by using a soft, dry cloth. If you notice any issues with power delivery or data transmission, check the connections and make sure the power supply is stable. The switch has built - in protection features for PoE devices, but always be careful when connecting non - standard devices.
