Gefen EXT-UHD600A-44 4 x 4 Ultra HD 600 MHz Matrix

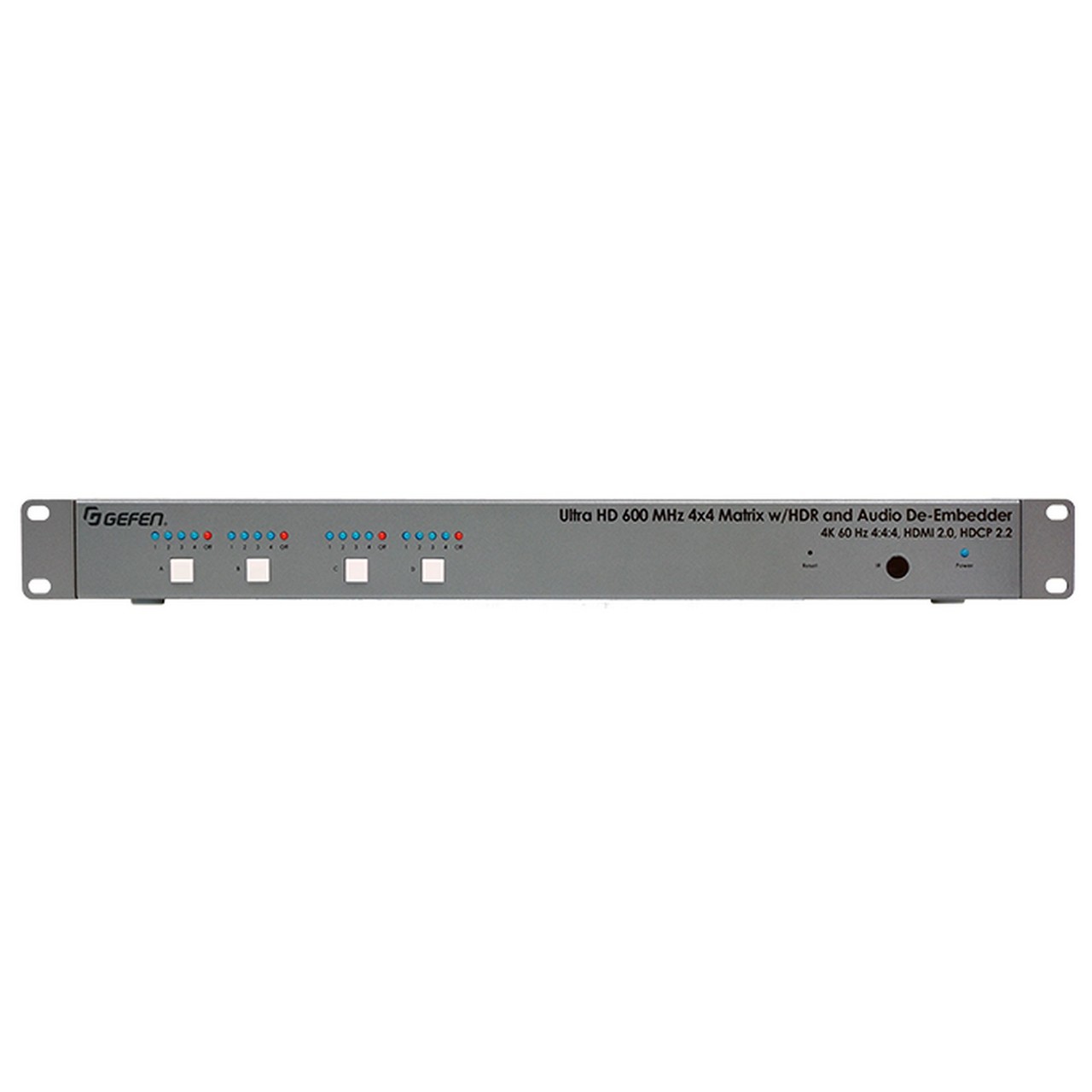

The Gefen 4x4 Ultra HD 600 MHz Matrix for HDMI is a top - notch device for distributing 4K Ultra High Definition media. It's designed to handle today's content flawlessly and has the capacity for future content. This matrix can route signals from up to four 4K sources to up to four 4K displays or video zones. As part of Gefen's Ultra HD 600MHz Series, it supports 18.2 Gbps of bandwidth and a 600 MHz TMDS Clock frequency, meeting the highest HDMI 2.0 standard. The device comes in a 1U tall, rack - mountable enclosure that can also sit on a shelf, and it uses Gefen locking HDMI cables for secure connections. Key features include routing four 4K sources to four 4K displays, supporting high - end resolutions like 4K Cinema - DCI and 4K Ultra HD with HDR, compatibility with HDCP 2.2 and 1.4, support for HDR 10 - bit Deep Color, 3DTV and Lip Sync pass - through, EDID Management for quick source - display integration, and support for uncompressed LPCM digital audio up to 7.1 channels.

Using the Gefen 4x4 Ultra HD 600 MHz Matrix is easy. First, connect your 4K sources to the HDMI input connectors and your 4K displays to the HDMI output connectors. Make sure to use the Gefen locking HDMI cables for a secure connection. You can use the input selector buttons on the front panel to choose which source goes to which display. For remote control, you can use the IR sensor on the front panel or connect an IR extender to the IR In/Ext Port. When it comes to power, plug the DC power connector into a 24V DC power supply. Be aware that the power consumption varies depending on whether the USB power ports are in use. Keep the device in an environment where the operating temperature is between 32°F and 122°F (0°C and 50°C) and the humidity is between 5% and 90% RH, non - condensing. For storage, the temperature can range from - 4°F to 185°F (- 20°C to 85°C) and the humidity from 0% to 95% RH, non - condensing. To maintain the device, keep it clean and free of dust. If you encounter any issues, you can use the reset button. The device has a long MTBF of 50000 hours, but if there are any problems, refer to the user manual or contact customer support.
