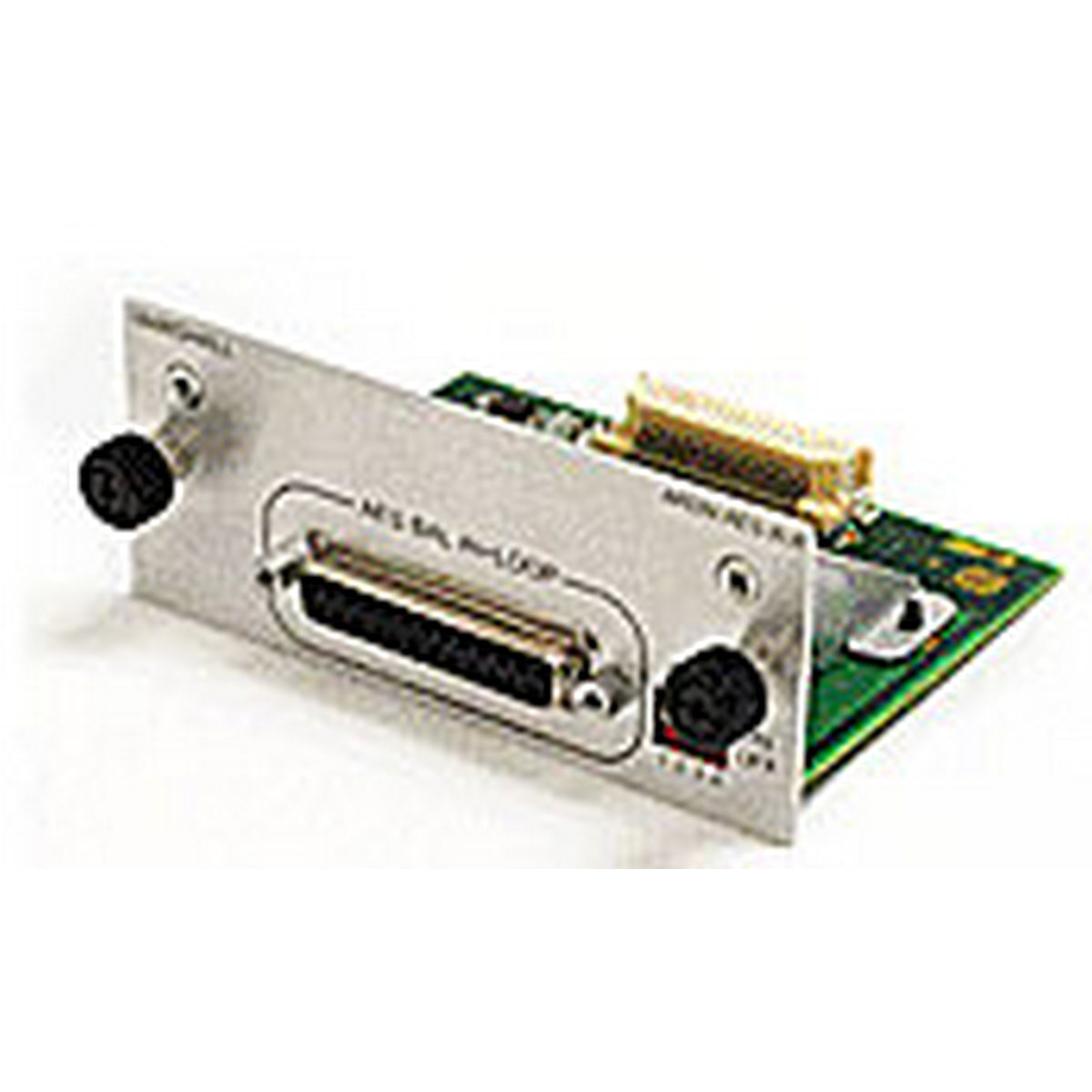

Marshall Electronics ARDM-AES-XLR 4 Balanced AES EBU Input Module for Audio Monitor

The Marshall Electronics ARDM - AES - XLR is a top - notch input module for audio monitors. It offers 4 balanced AES/EBU inputs, equivalent to 8 audio channel inputs. Key features include 4 passive loop - through outputs (8 audio channel outputs), XLR inputs and outputs via an included DB25 - XLR breakout cable. It supports DOLBY multi - channel decoding with an optional module and can display embedded metadata with the AR - DM2 - L audio monitor. In terms of technical specs, inputs are 4 x AES/EBU (balanced 110Ω XLR - F via DB - 25 connector), outputs are 4 x AES/EBU (balanced 110Ω XLR - M via DB - 25 connector) with passive loop - through. It supports professional and consumer (SPDIF) formats, and audio coding includes PCM, DOLBY E, DOLBY DIGITAL (AC - 3). Sample rates are 44.1kHz and 48kHz, and it comes with a “Tascam” standard pinout DB - 25 cable (Mogami GOLD - AES - TD - DB25 - XLR - 05 break - out cable).

Using this Marshall Electronics input module is quite easy. First, connect the module to your audio monitor using the included DB25 - XLR breakout cable. Make sure the connections are secure. For multi - channel decoding, if you want to use the DOLBY feature, install the optional module. When it comes to the sample rates, you can set them according to your audio source requirements, either 44.1kHz or 48kHz. As for maintenance, keep the module in a dry and clean place. Avoid exposing it to extreme temperatures or humidity. Periodically check the connections to ensure they are still firm. If you encounter any problems, refer to the technical specifications in the product description or contact the manufacturer's support team.
