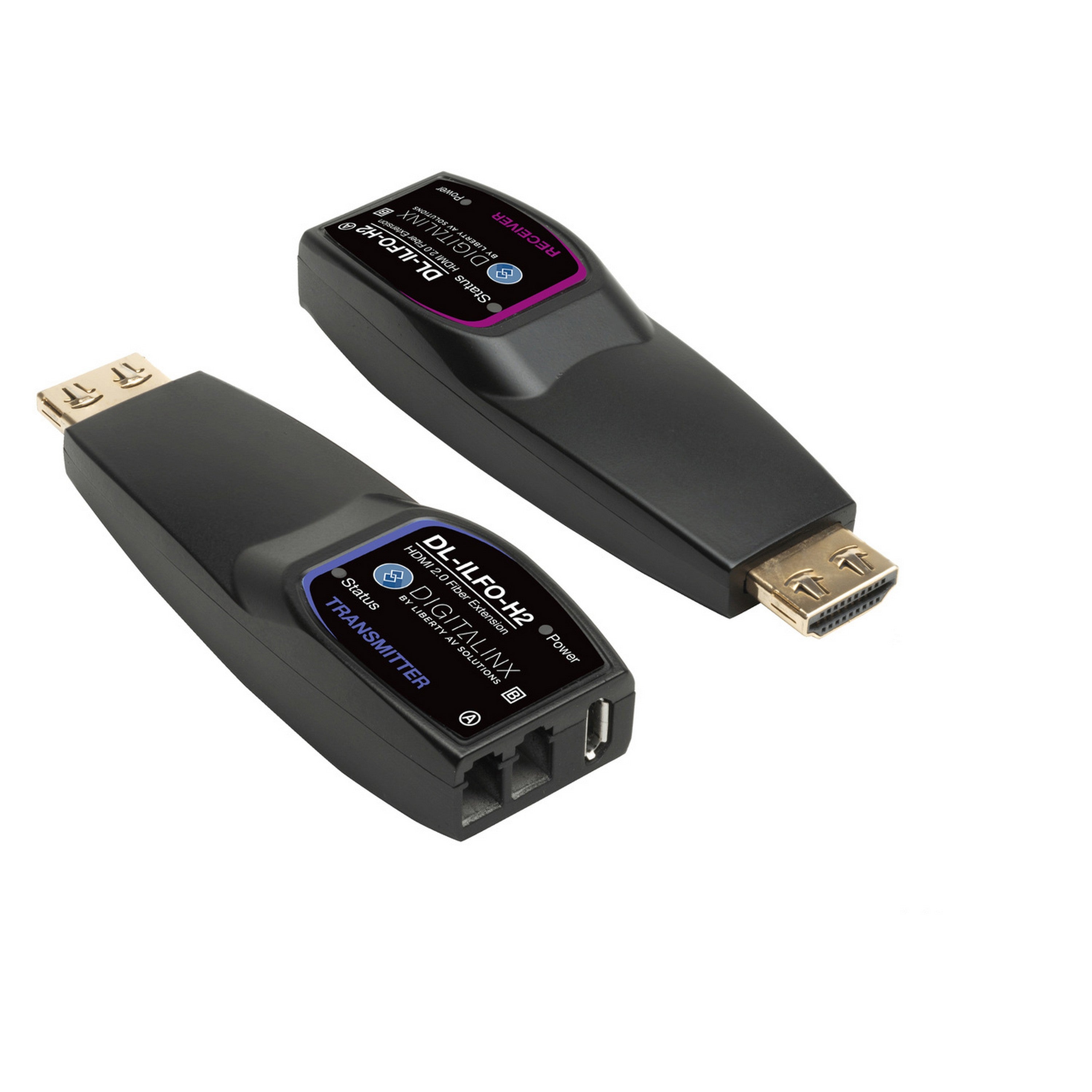

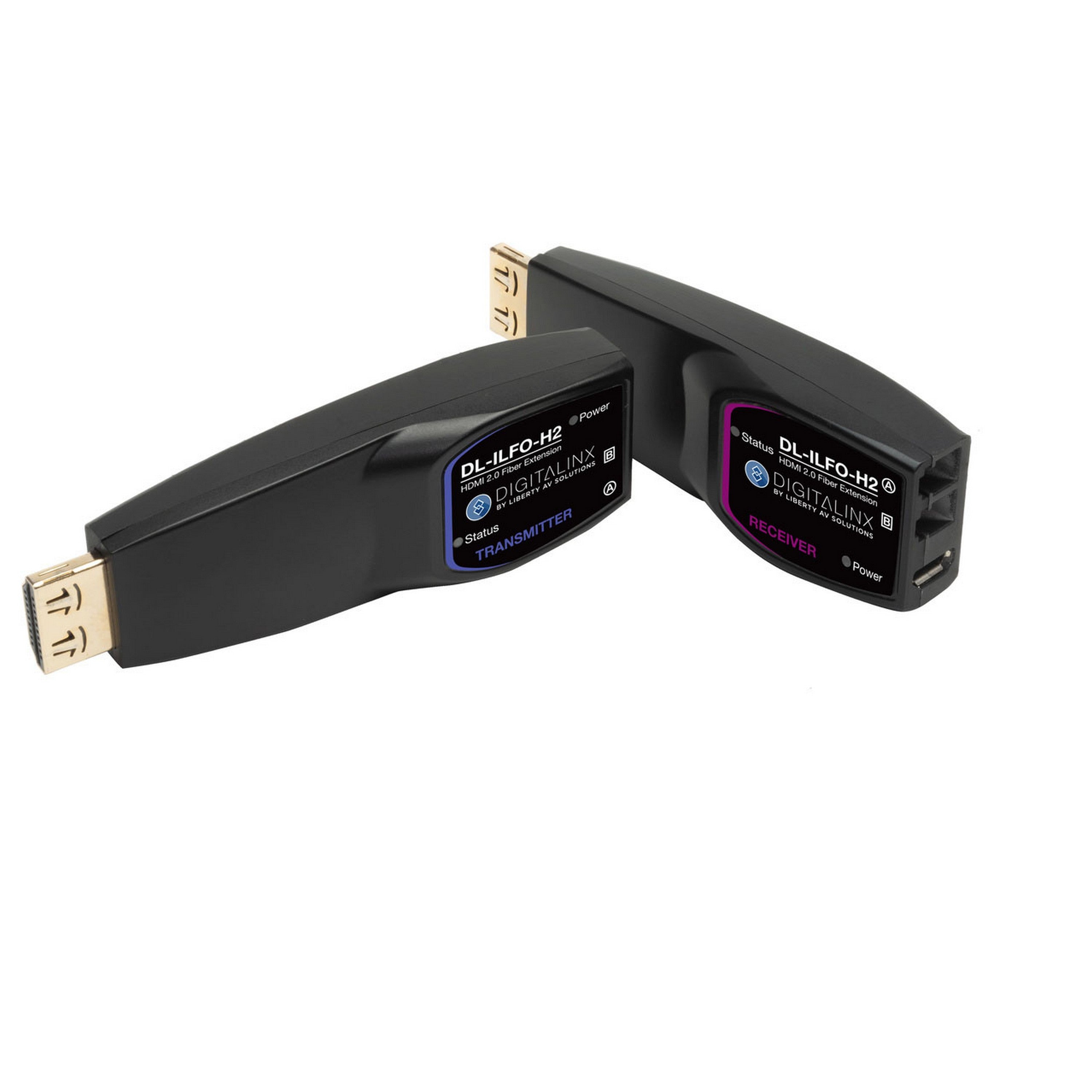

The DigitaLinx DL - ILFO - H2 is a top - notch HDMI 2.0 Fiber Optic Extender Set. It can extend HDMI 2.0 signals up to 200m (656 feet), smoothly transmitting 4K UHD (4096x2160) at 60Hz via a single duplex LC multimode fiber optic cable. With its High Retention HDMI connectors that offer more holding force than standard ones, it prevents accidental disconnection and enables long - distance 4K signal transmission without video or audio degradation from compression. This extender supports HDMI 2.0b up to 18Gbps, along with CEC, HDR10, HDR10 + Dolby Vision, HDCP 2.2, and high - definition Dolby and DTS audio formats, providing great installation flexibility and compatibility. It also supports HDR for a more realistic video image. Either unit can be powered by USB, and international power supplies are included. The transmitter can also get power from the HDMI source using DDC 5V power. It has passed the DPL Digital - HD (DHD) Performance Testing & Certification Program, meaning it has been rigorously tested to deliver a true 18Gb data rate over 200m without compression or data loss. Key features include DPL certification for 18G superior optical performance, direct connection with male HDI connectors, immunity to RF and EMI interference, and support for static and dynamic HDR. It's sold as a set with TX, RX, and power adapters and has a compact design. Applications include 18G 4K HDMI setups, extending high - bandwidth HDMI with audio and control, and are suitable for digital signage, boardrooms, education, home theaters, and medical use.

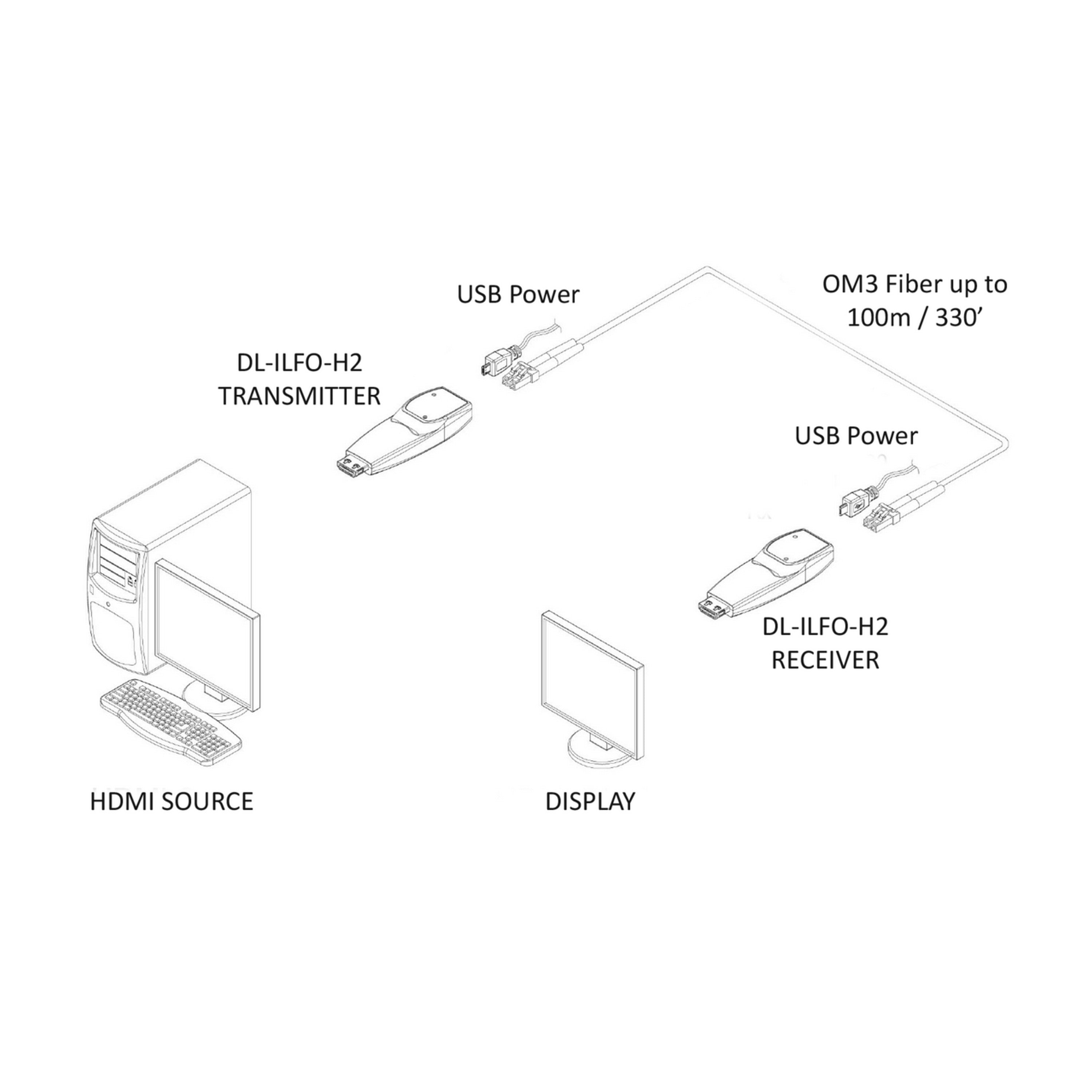

Using the DigitaLinx DL - ILFO - H2 is easy. First, connect the transmitter to your HDMI source device using the male HDI connector. Then, connect the receiver to your display device in the same way. Use a duplex LC multimode fiber optic cable to link the transmitter and the receiver. You can power either unit with a USB cable or use the included international power supplies. If you want, the transmitter can also get power from the HDMI source through DDC 5V power. When using, make sure the connections are secure to avoid accidental disconnection. Keep the device away from strong RF and EMI sources as it's immune to such interference, but extreme conditions might affect performance. For maintenance, simply keep it clean and dry. If there are any issues, check the connections first. If problems persist, contact the manufacturer for further assistance.
