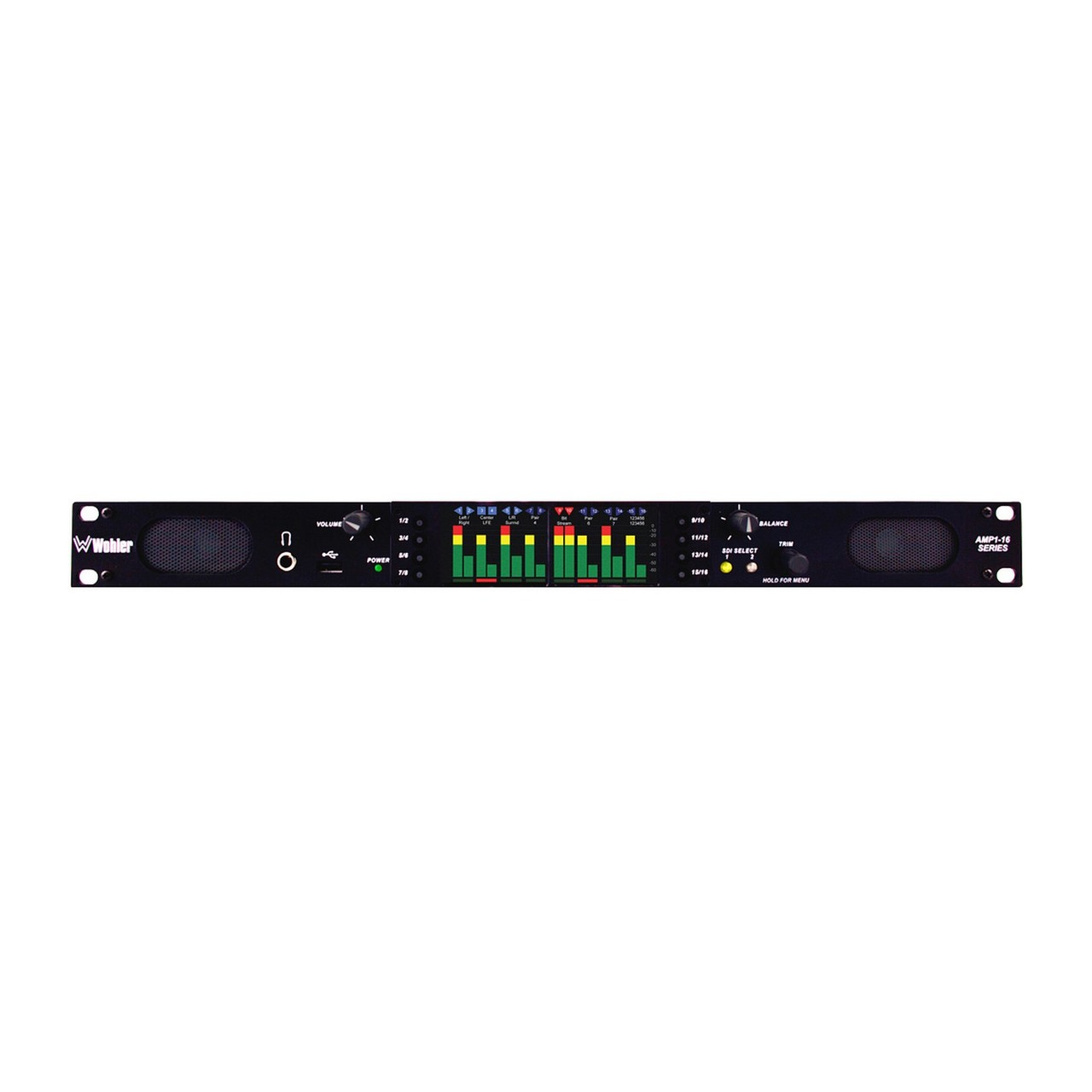

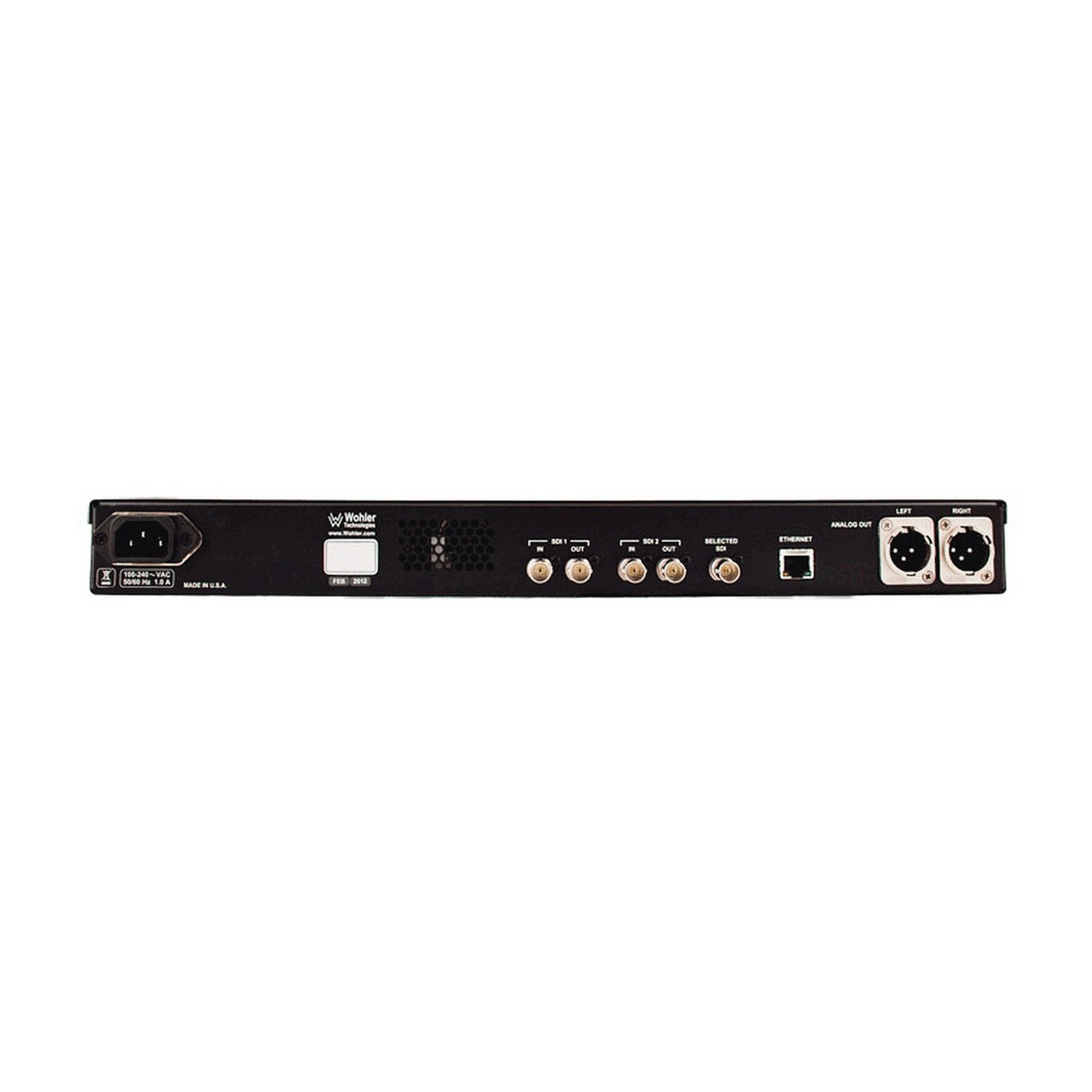

Wohler's latest audio monitor is a game - changer for SDI audio monitoring in high - demand production scenarios. Whether you're in a studio or on the go, the AMP1 - 3G allows you to instantly select and sum any SDI audio pairs. With adjustable volume and balance controls, it clearly shows levels and phase indications on its bright 2.4 - inch LED - backlit LCD displays. You can create, save, and recall configurations via Ethernet using an easy - to - use PC interface. Key features include simultaneous 16 - channel audio level metering from SDI, high - resolution 160 - segment metering displays, quick pair selection with push - buttons, multiple monitoring options like built - in speakers, headphones or analog outputs, stereo or mono monitoring, stereo phase indicators, adjustable volume, balance and channel trim, easy PC software for updates and management, loop outputs for each SDI input, re - clocked output of the selected SDI input, balanced stereo analog outputs on XLR - Ms, automatic frame rate detection, a high - fidelity Class D amp in a digital system architecture, and a shallow chassis for easy OB vehicle and console installation.
Using the Wohler AMP1 - 16 - M is quite straightforward. First, connect your SDI sources to the appropriate inputs. You can then use the push - buttons to quickly select which audio pairs you want to monitor. You can choose to listen through the built - in speakers, headphones, or analog outputs. Adjust the volume, balance, and channel trim according to your needs. For configuration, use a PC to connect via Ethernet and use the intuitive interface to create, save, and recall settings. When it comes to maintenance, keep the device in a clean and dry environment. Avoid exposing it to extreme temperatures or humidity. If there are any software updates available, use the provided PC software to update it regularly to ensure optimal performance. Always power off the device before making any connections or disconnections to prevent damage.
